Yaw Sensor

This screen gives a quick test of the yaw rate sensor functionality based on the two voltages Sensor and Offset. For more information see the Yaw Rate Diagnosis.

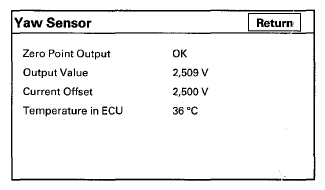

Fig 1: Screen Display - Yaw Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
