C652 Connector End View

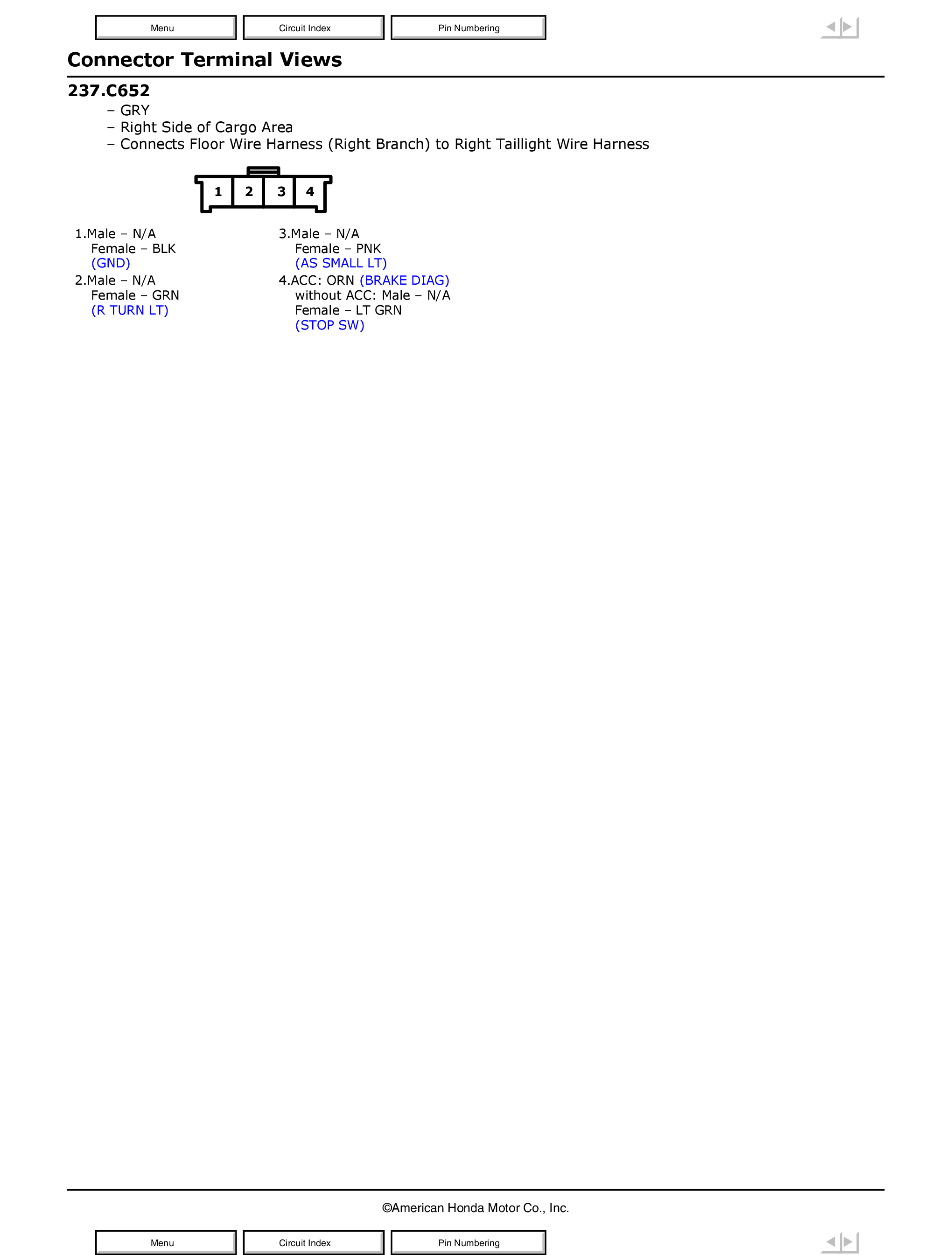

Fig 1: C652 Connector End View
GHHW12648Courtesy of AMERICAN HONDA MOTOR CO., INC.

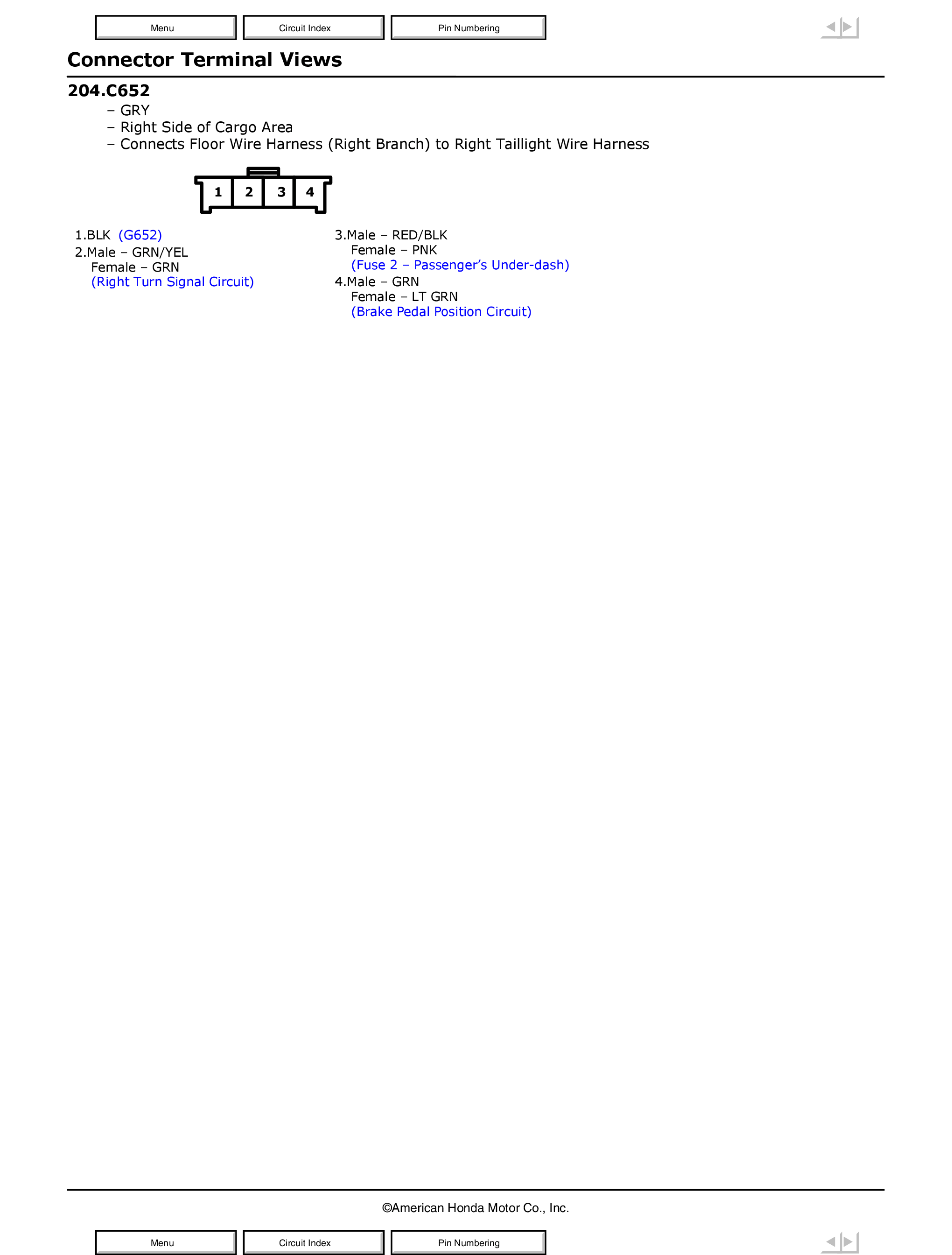

Fig 1: C652 Connector End View
GHHW13064Courtesy of AMERICAN HONDA MOTOR CO., INC.
