C802 Connector End View

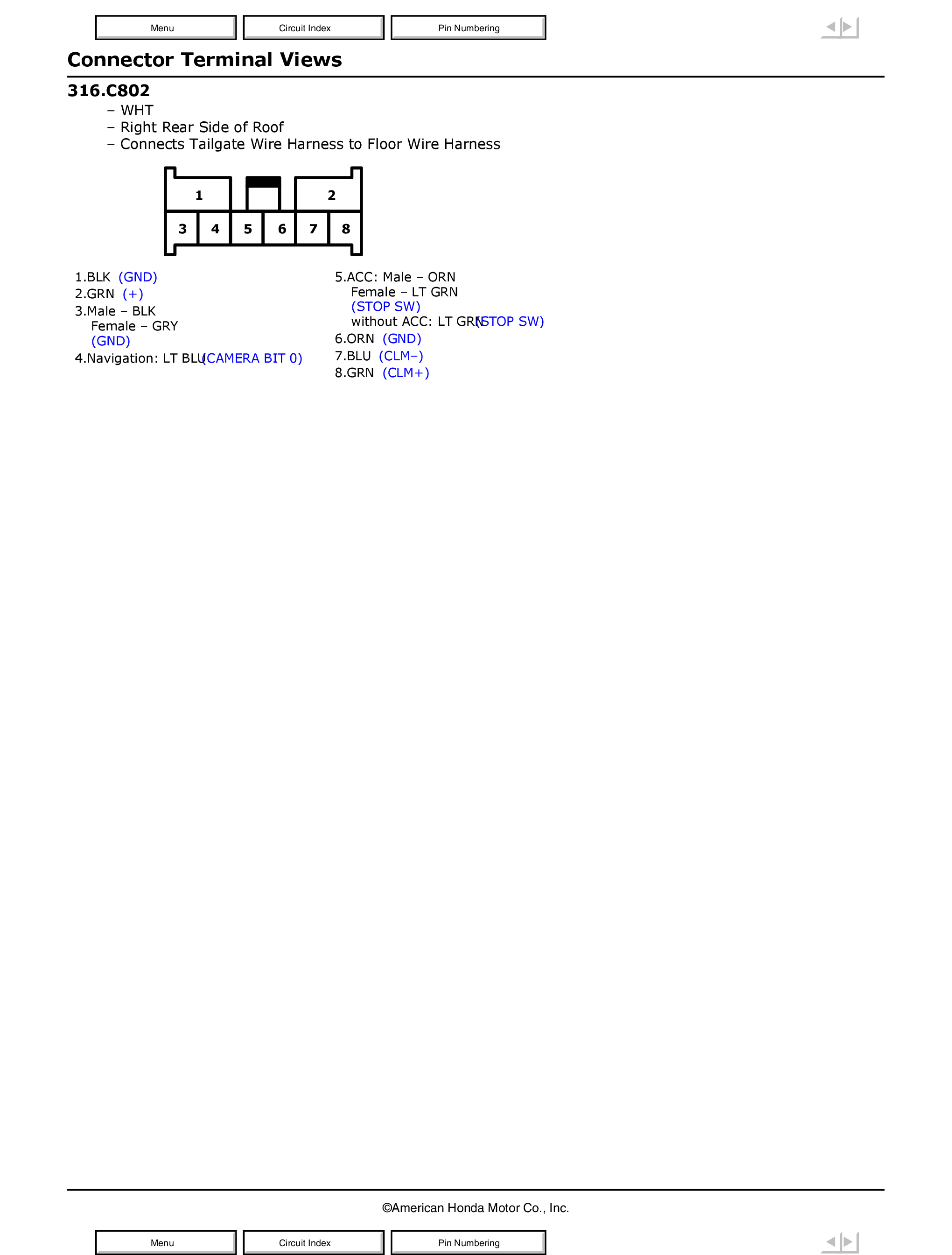

Fig 1: C802 Connector End View
GHHW12718Courtesy of AMERICAN HONDA MOTOR CO., INC.

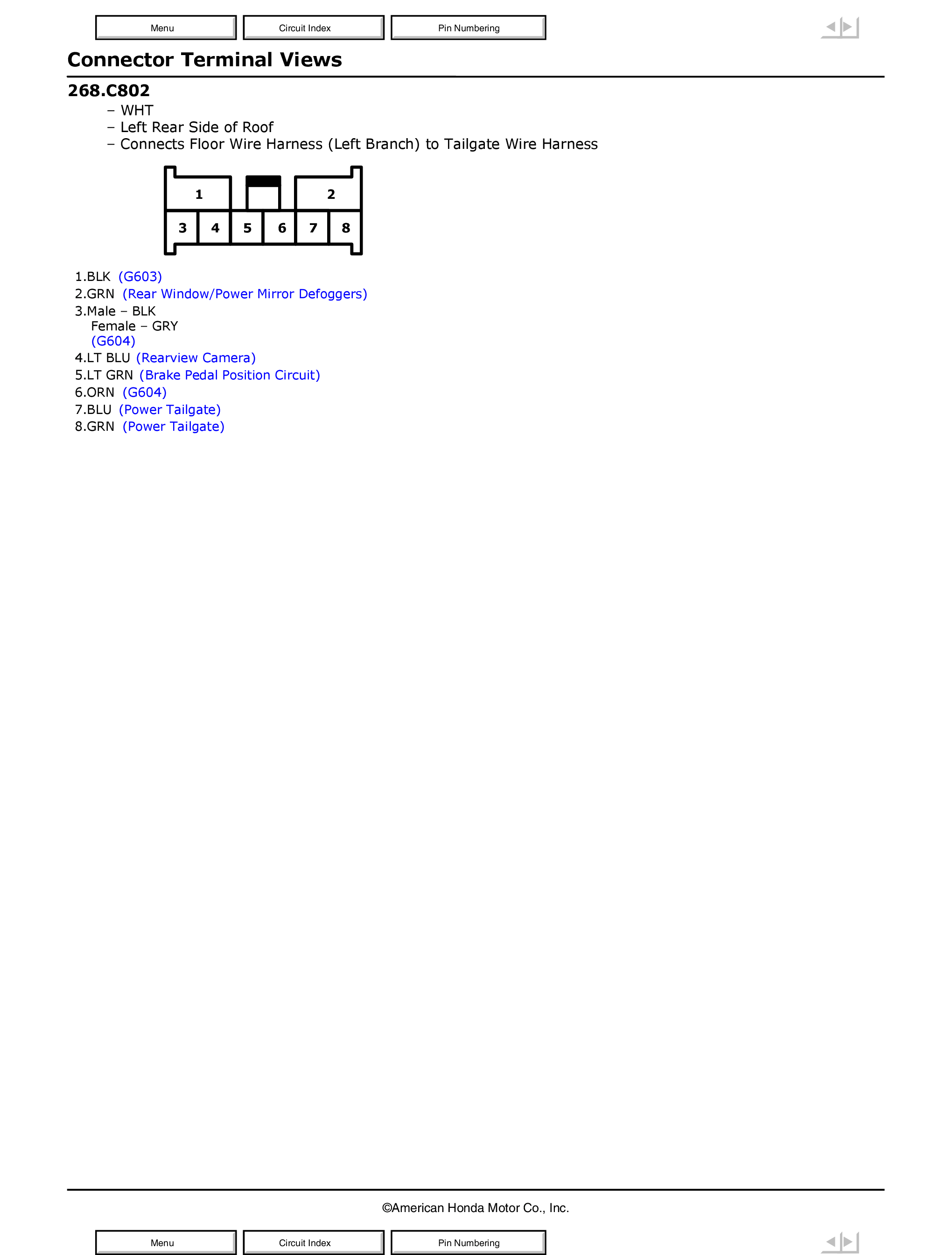

Fig 1: C802 Connector End View
GHHW13126Courtesy of AMERICAN HONDA MOTOR CO., INC.
