Cruise Control Combination/Select/Reset/Information Switch Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cruise Control Combination/Select/Reset/Information Switch Connector End View

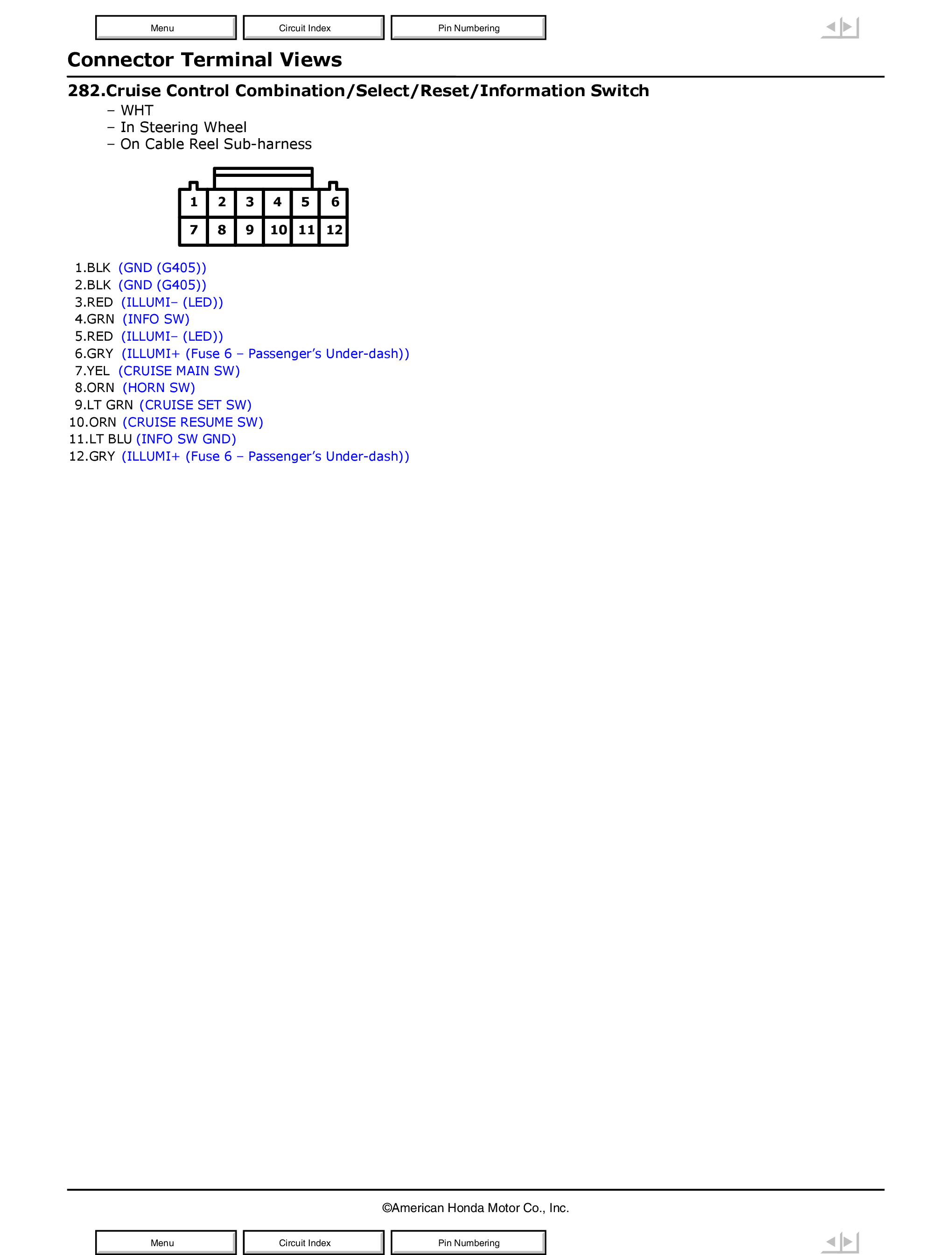

Fig 1: Cruise Control Combination/Select/Reset/Information Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
