Driving Position Memory Switch Connector End View

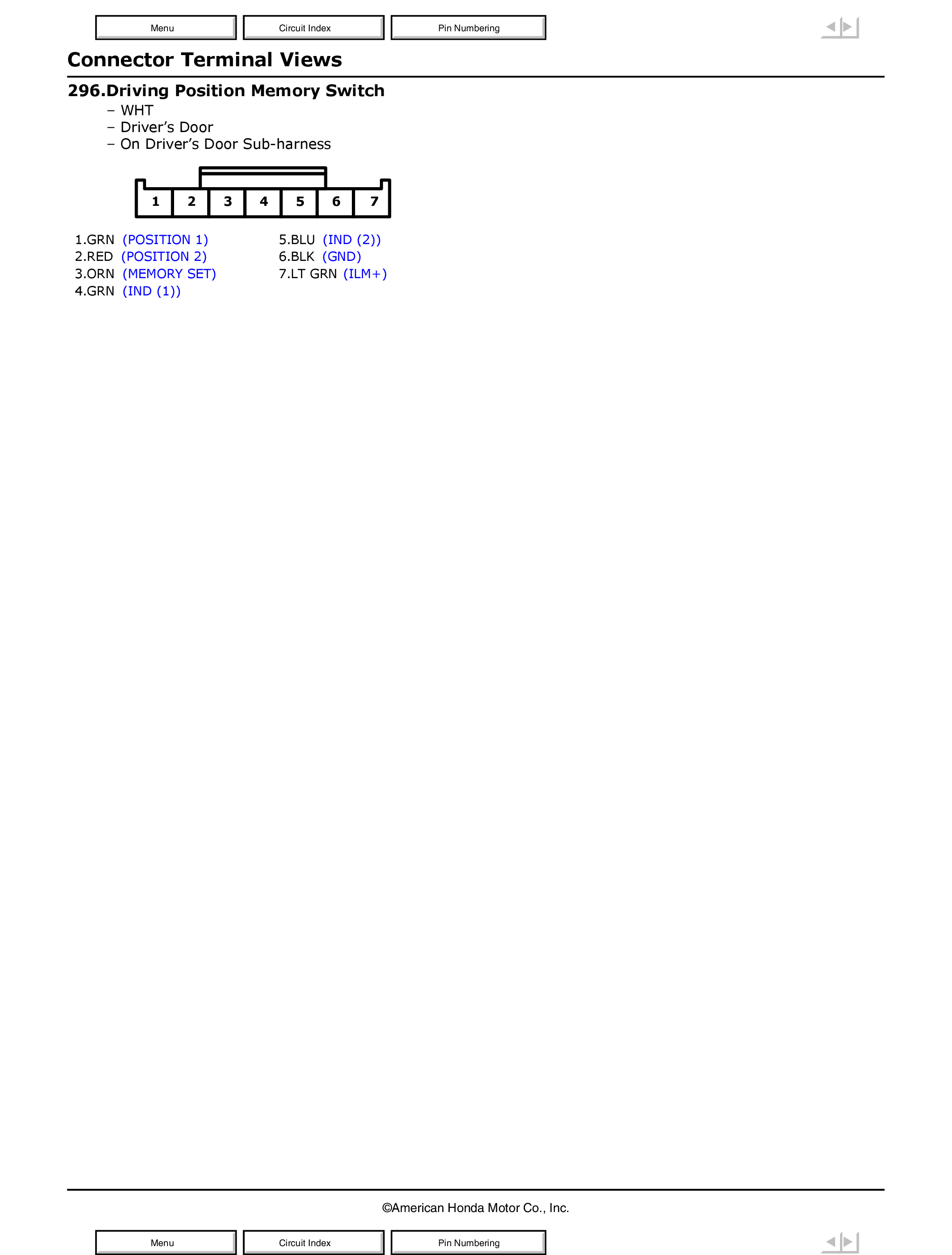

Fig 1: Driving Position Memory Switch Connector End View
GHHW12698Courtesy of AMERICAN HONDA MOTOR CO., INC.

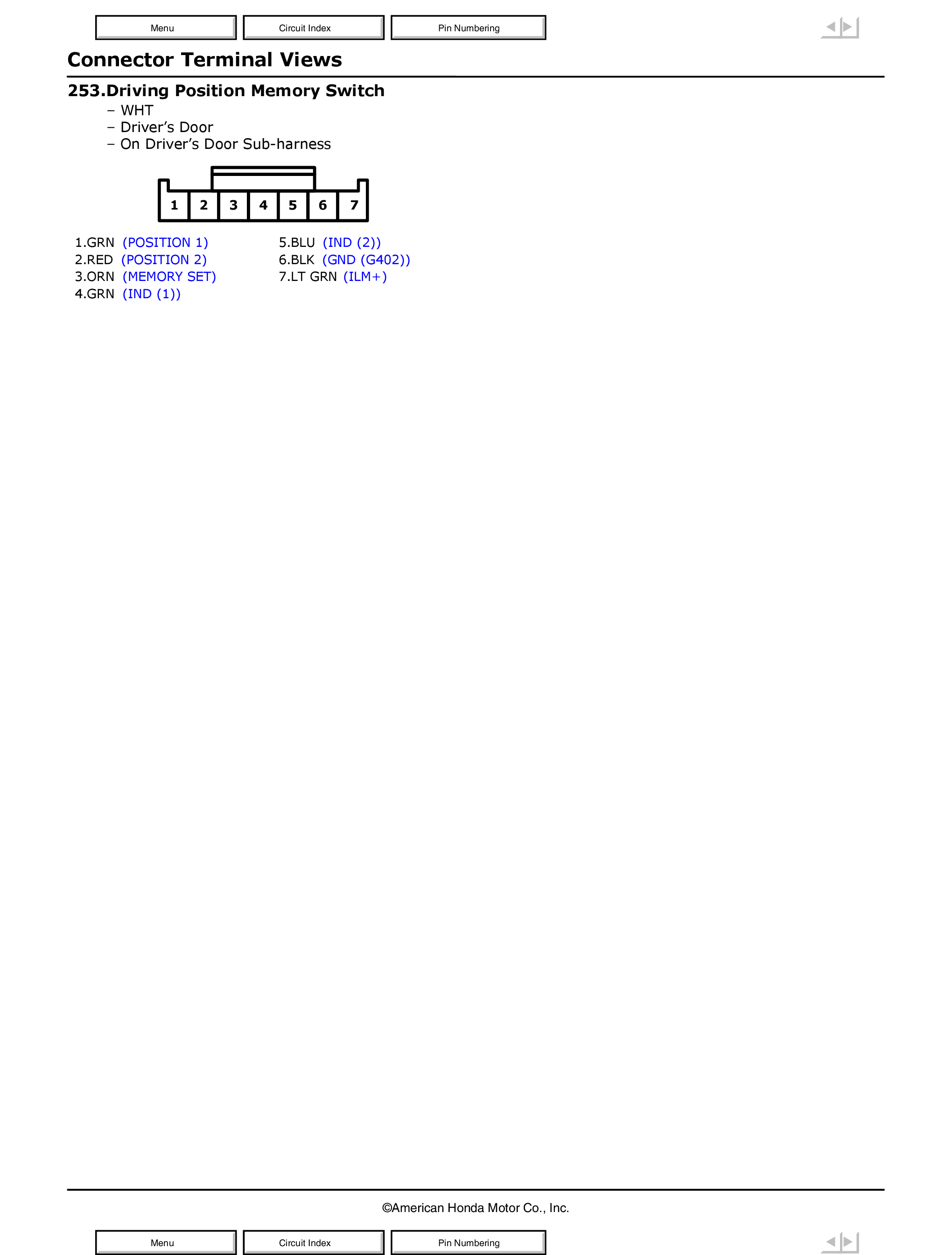

Fig 1: Driving Position Memory Switch Connector End View
GHHW13112Courtesy of AMERICAN HONDA MOTOR CO., INC.
