HandsFreeLink Control Unit Connector End View

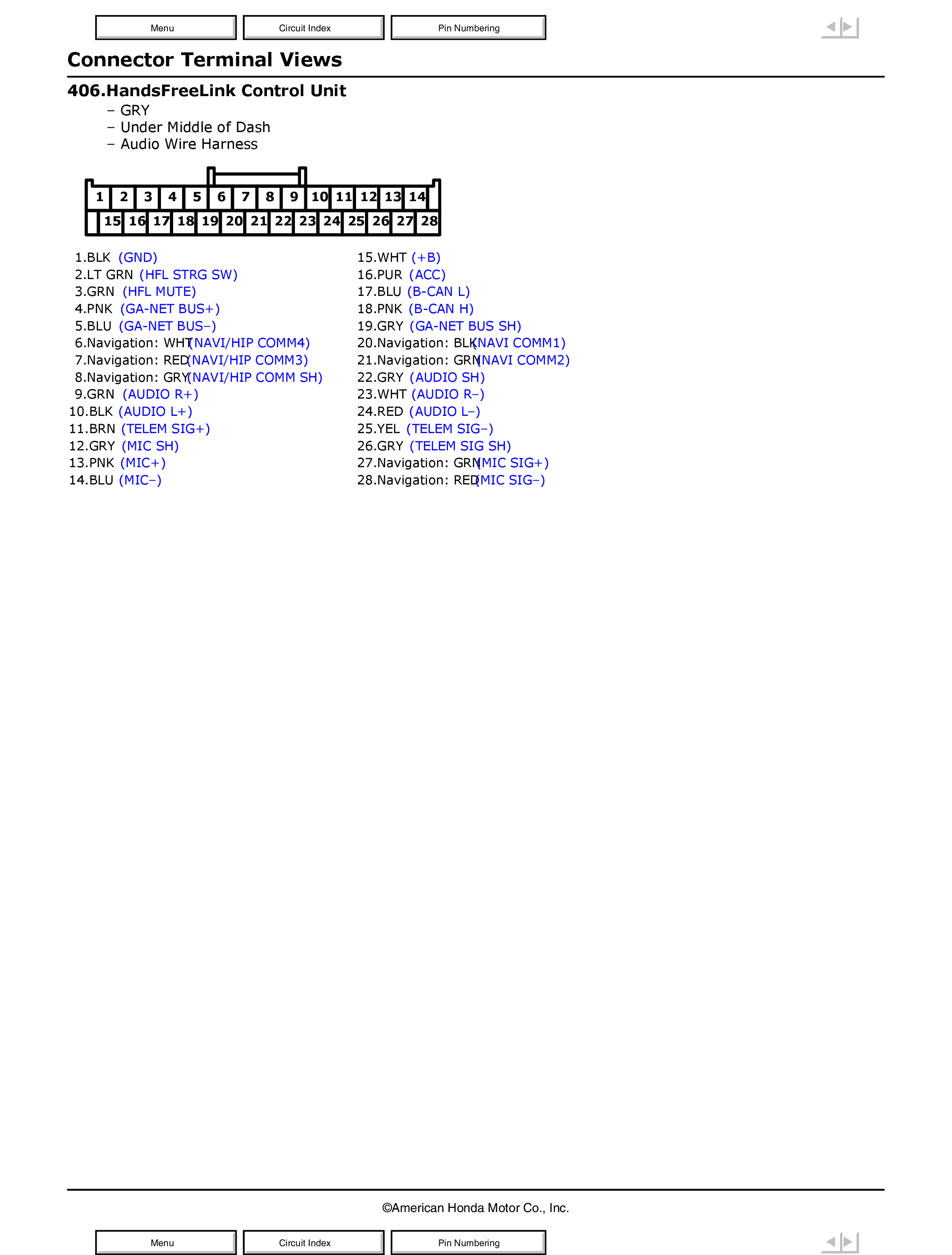

Fig 1: HandsFreeLink Control Unit Connector End View
GHHW12807Courtesy of AMERICAN HONDA MOTOR CO., INC.
