Rear ANC/Active Sound Control Microphone Connector End View

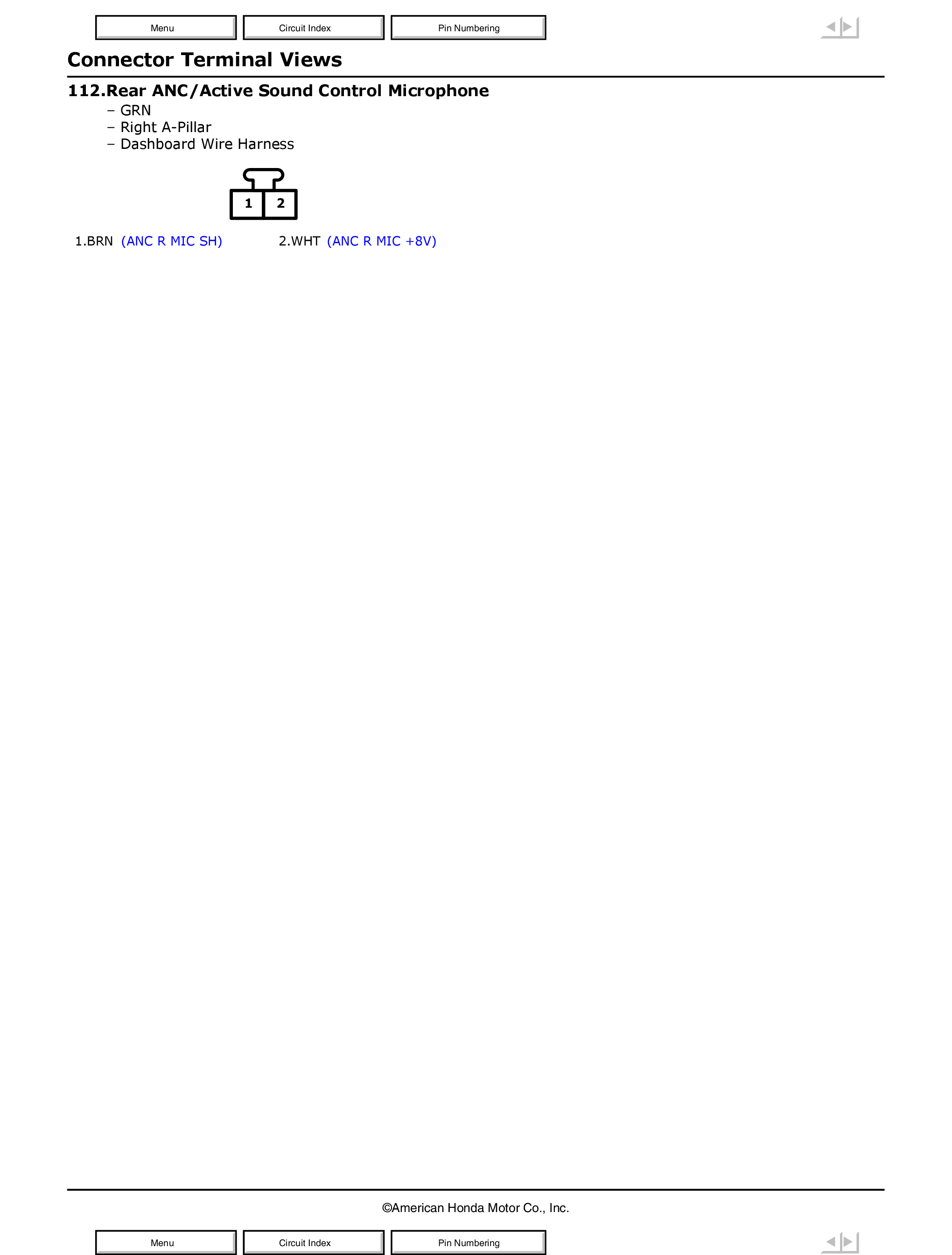

Fig 1: Rear ANC/Active Sound Control Microphone Connector End View
GHHW12529Courtesy of AMERICAN HONDA MOTOR CO., INC.

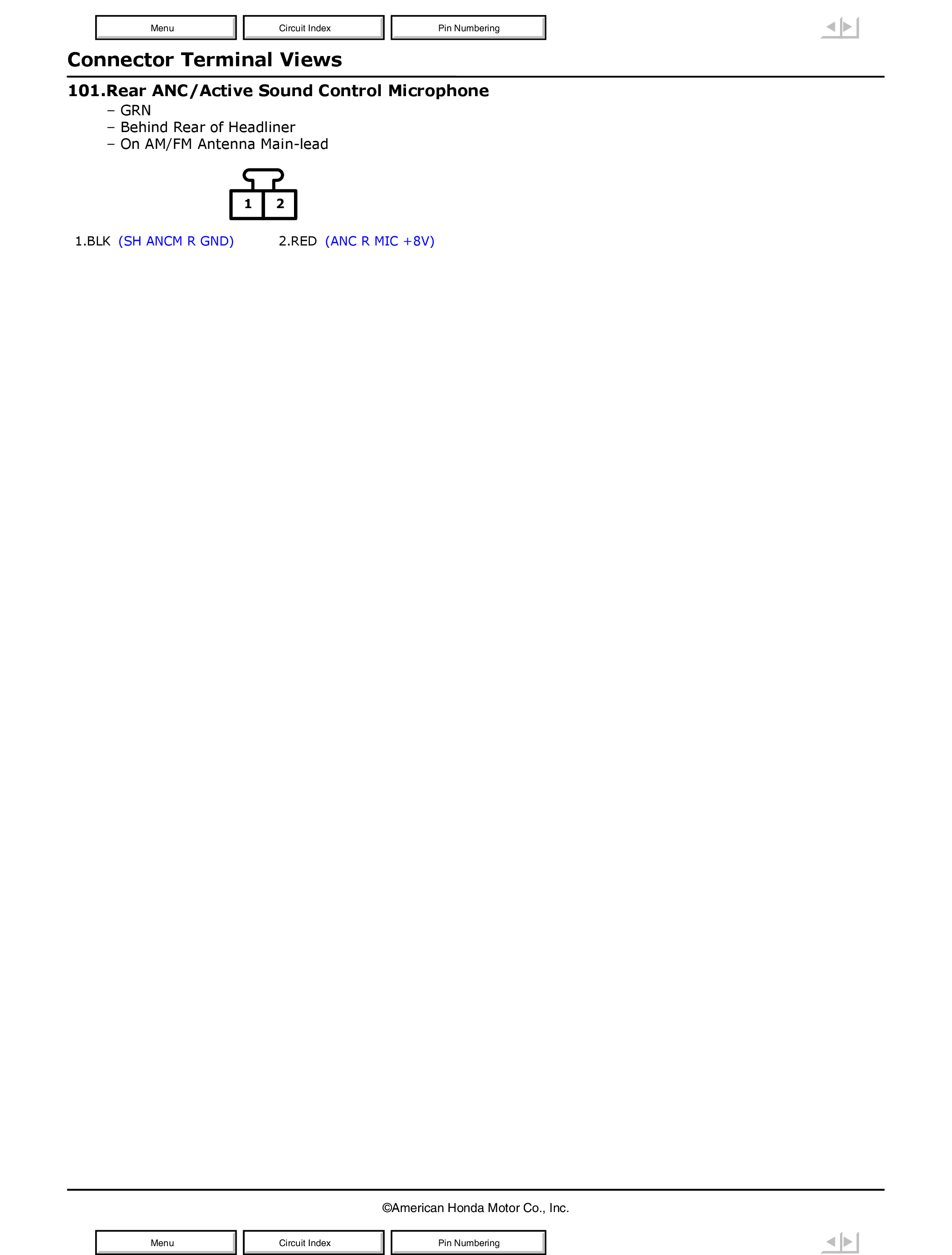

Fig 1: Rear ANC/Active Sound Control Microphone Connector End View
GHHW12963Courtesy of AMERICAN HONDA MOTOR CO., INC.
