Tailgate Light Connector End View

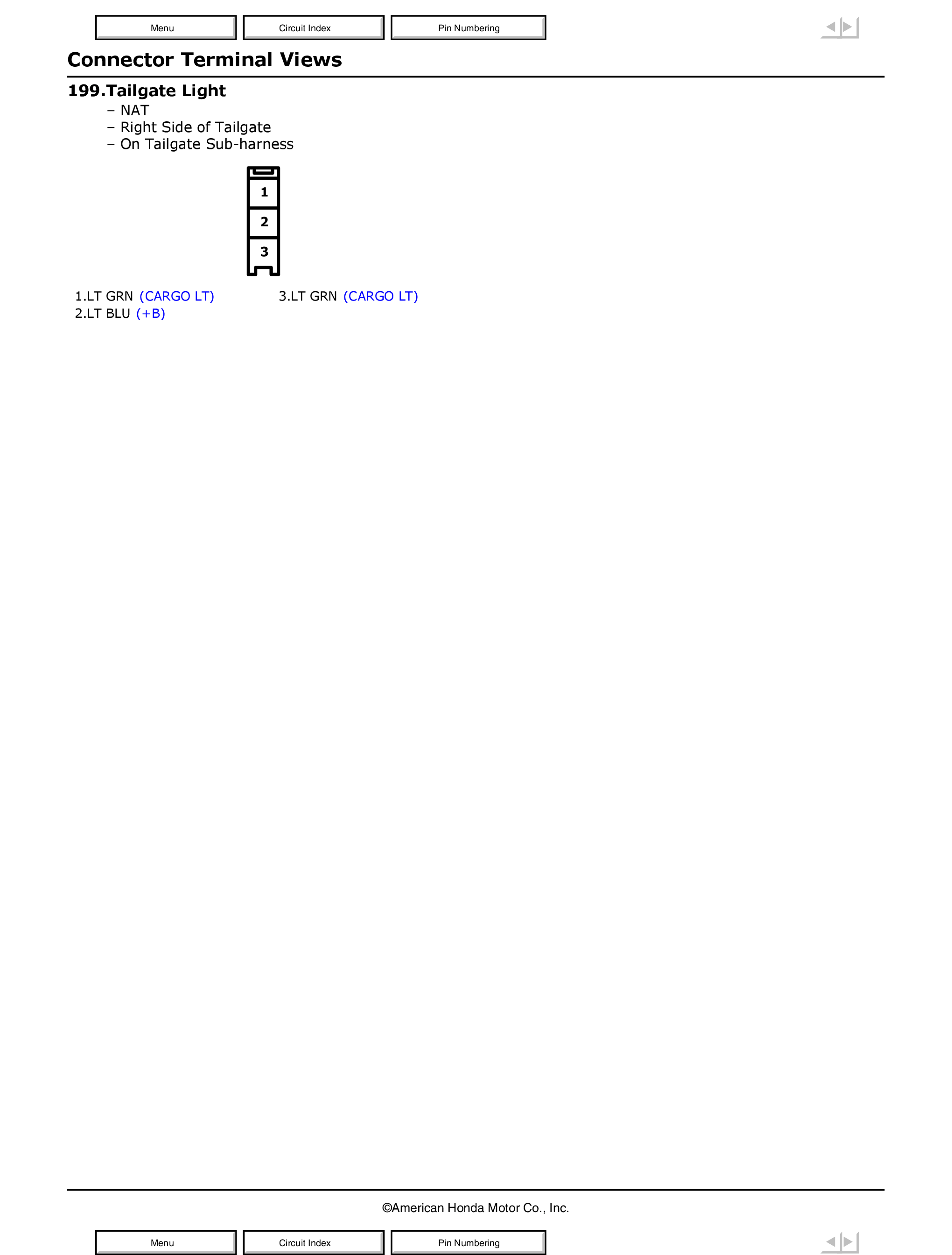

Fig 1: Tailgate Light Connector End View
GHHW12614Courtesy of AMERICAN HONDA MOTOR CO., INC.

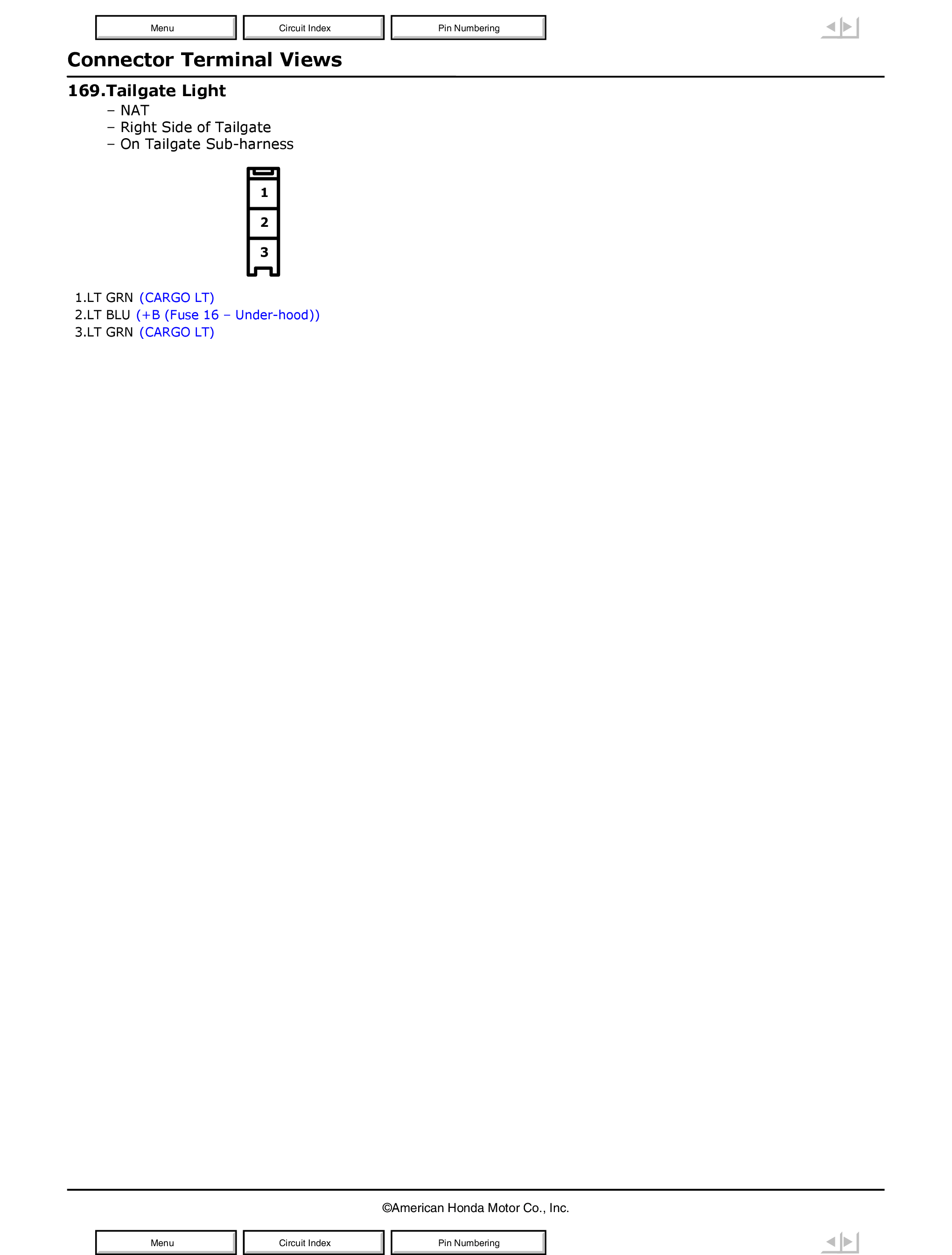

Fig 1: Tailgate Light Connector End View
GHHW13029Courtesy of AMERICAN HONDA MOTOR CO., INC.
