Connector-to-Fuse/Relay Box Index

Ref	Socket	Cavities	Connects to	Notes
1	T5		Starter Cable
2	Starter Cut Relay 2	5
3	Brake Light Relay	5		ACC
4	Headlight High/Low Beam Switching Solenoid Relay	4

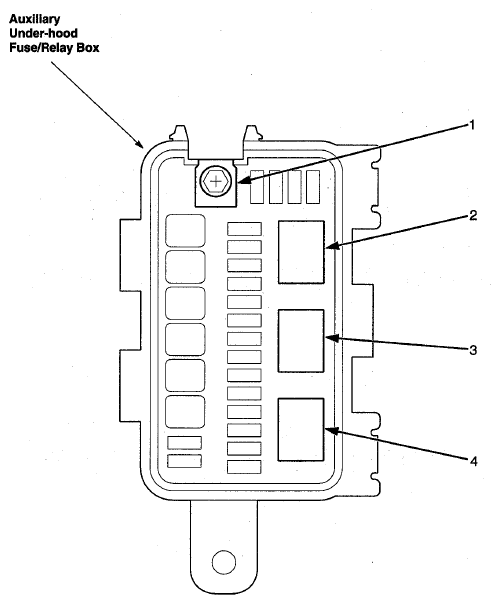

Fig 1: Auxiliary Under-Hood Fuse/Relay Box (6-17)
