Circuit Diagram

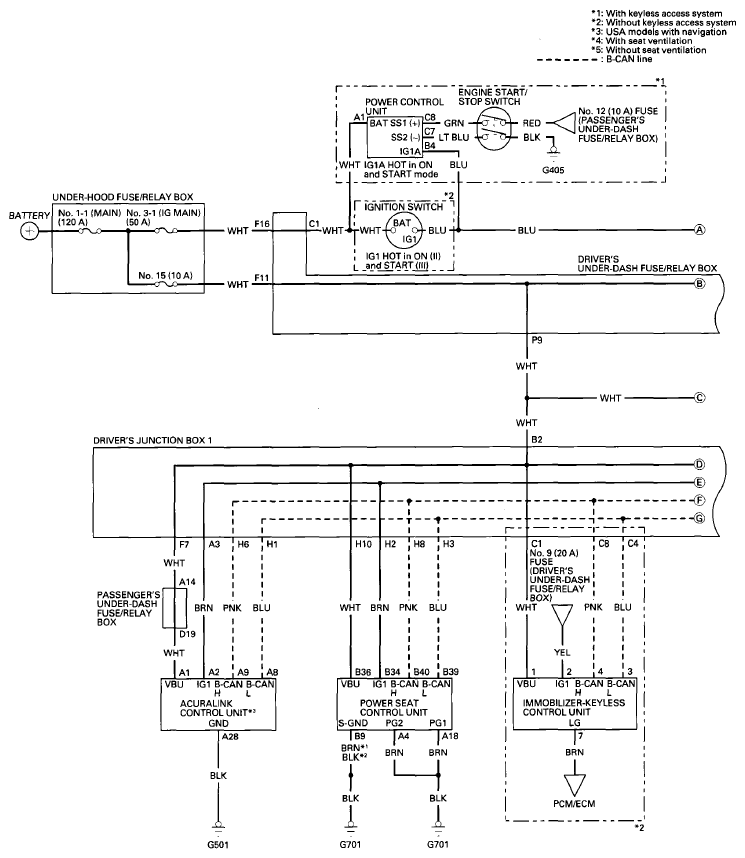

Fig 1: Multiplex Integrated Control System - Circuit Diagram (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

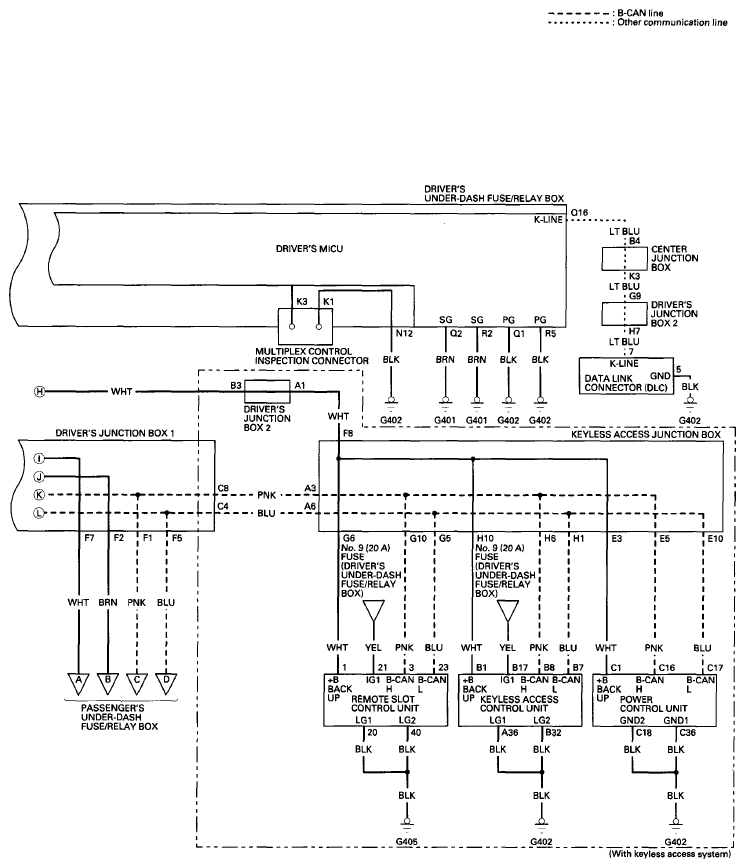

Fig 2: Multiplex Integrated Control System - Circuit Diagram (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

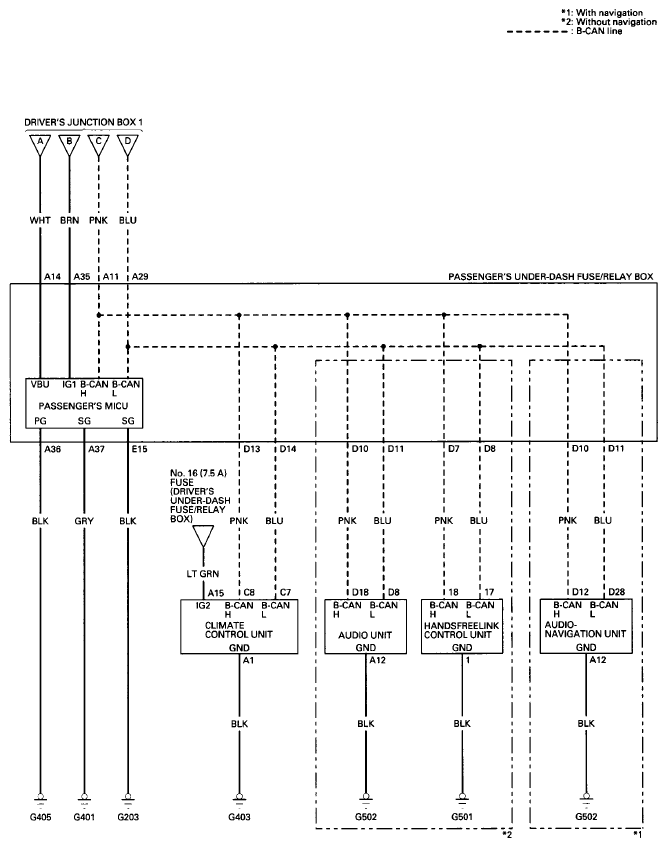

Fig 3: Multiplex Integrated Control System - Circuit Diagram (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

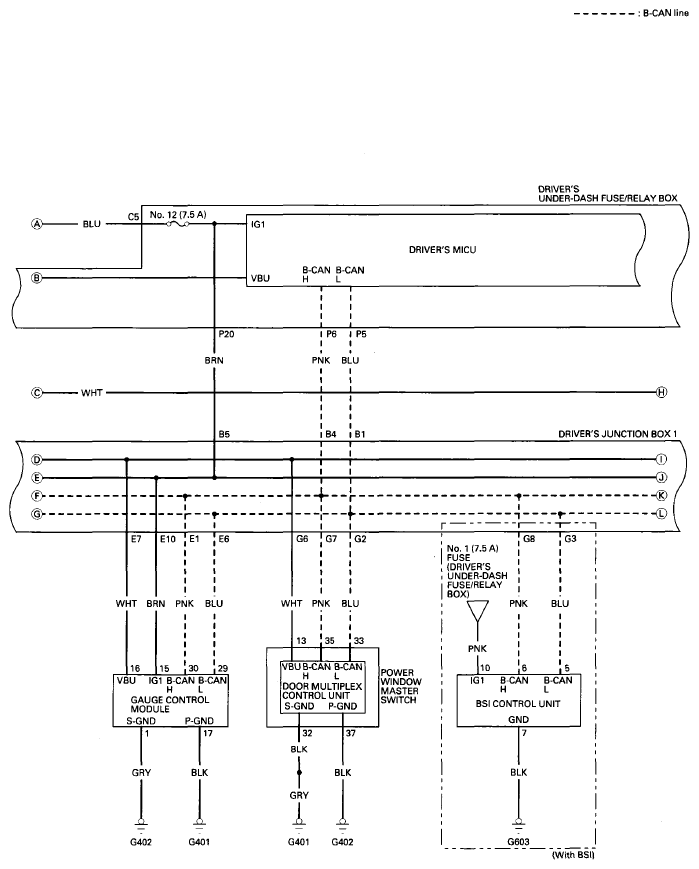

Fig 4: Multiplex Integrated Control System - Circuit Diagram (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
