DTC P0461: Fuel Level Sensor (Fuel Gauge Sending Unit) Circuit Range/Performance Problem: Notes

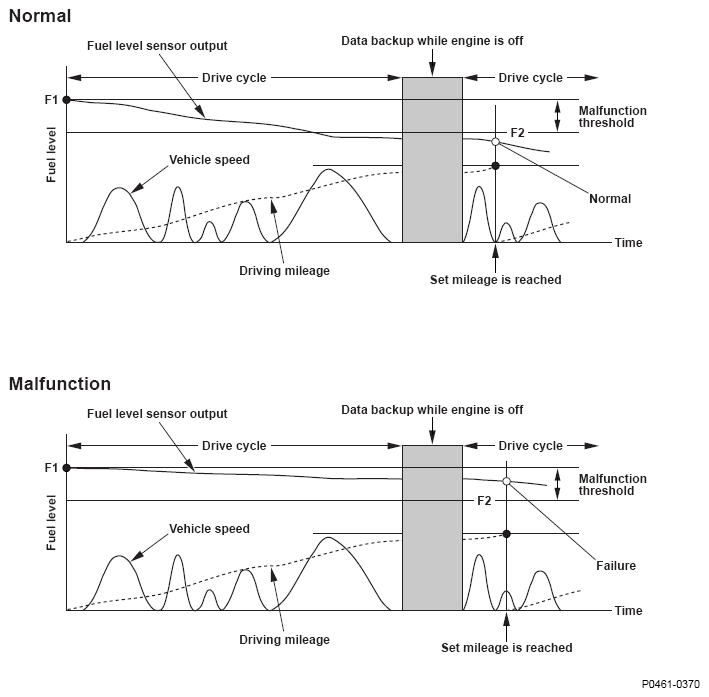

Fig 1: Fuel Level Sensor Characteristics Curve (Normal And Malfunction)
G08582486Courtesy of AMERICAN HONDA MOTOR CO., INC.
