Fuel Pump Control Module Connector End View

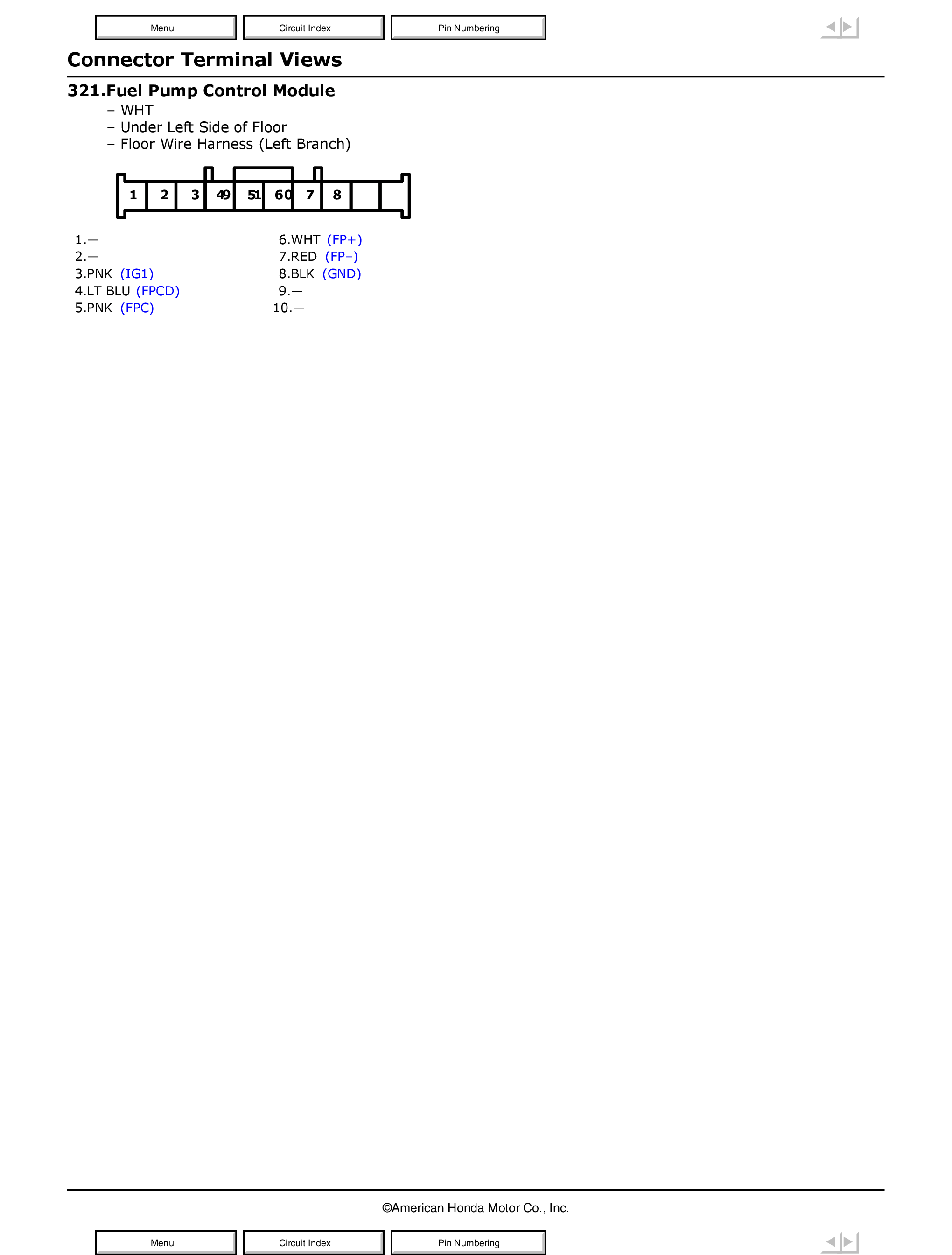

Fig 1: Fuel Pump Control Module Connector End View
GHHW12723Courtesy of AMERICAN HONDA MOTOR CO., INC.

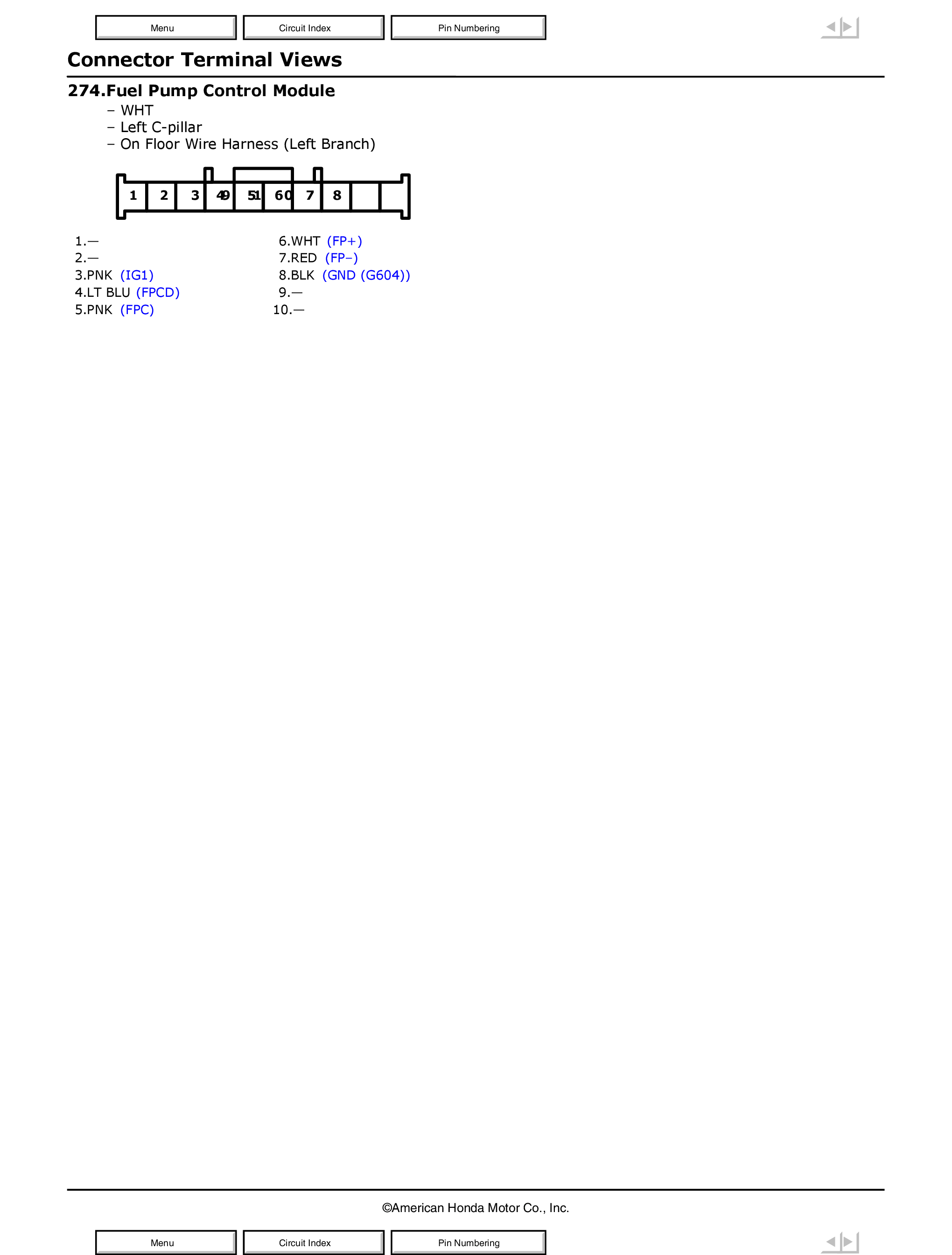

Fig 1: Fuel Pump Control Module Connector End View
GHHW13132Courtesy of AMERICAN HONDA MOTOR CO., INC.
