Immobilizer-Keyless Control Unit (Without Keyless Access System) Connector End View

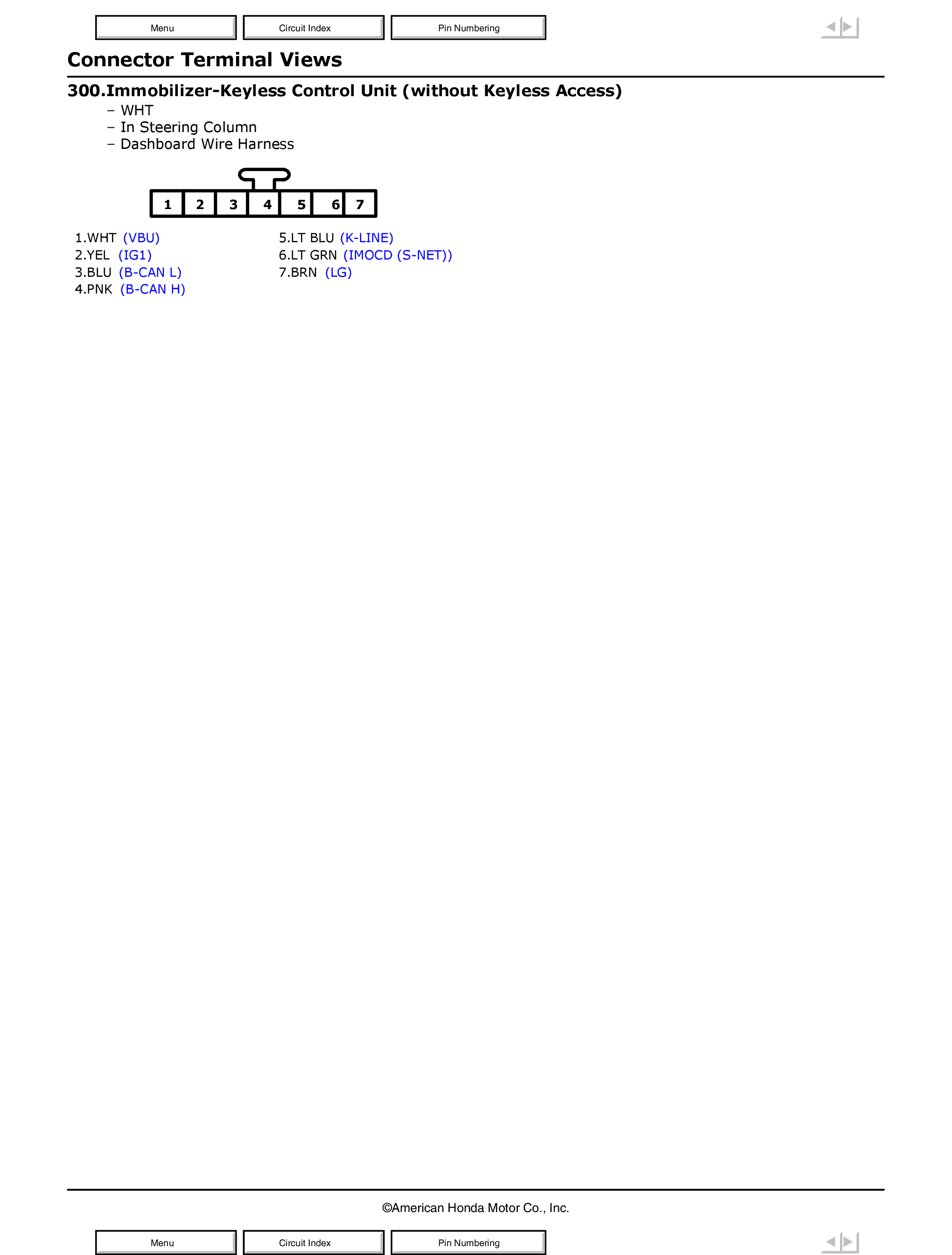

Fig 1: Immobilizer-Keyless Control Unit (Without Keyless Access System) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
