ODS Unit Connector End View

Fig 1: ODS Unit Connector End View
GHHW12839Courtesy of AMERICAN HONDA MOTOR CO., INC.

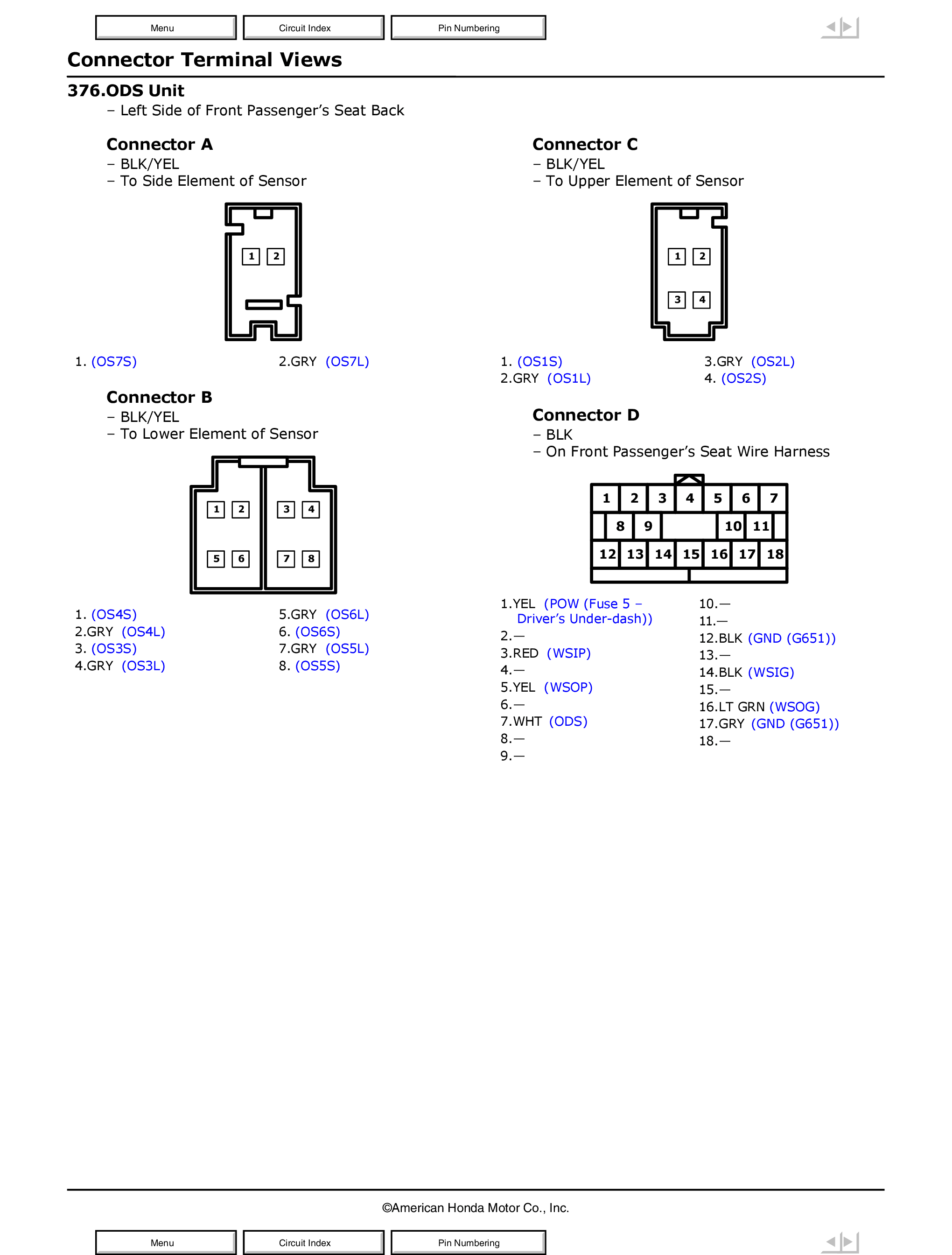

Fig 1: ODS Unit Connector End View
GHHW13231Courtesy of AMERICAN HONDA MOTOR CO., INC.
