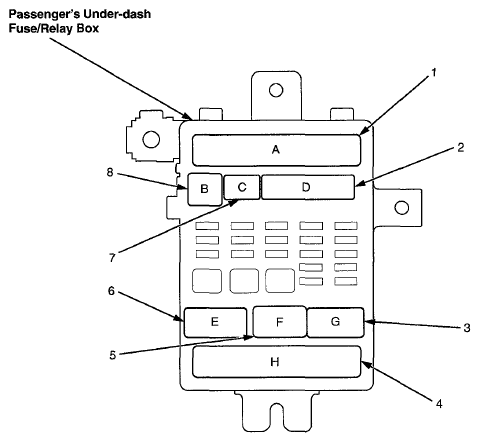

| 1 |
A |
38 |
Dashboard Wire Harness (see
DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE)
) |
|
| 2 |
D |
28 |
Audio Wire Harness (see
AUDIO WIRE HARNESS
) |
|
| 3 |
G |
16 |
Not Used |
|
| 4 |
H |
38 |
Floor Wire Harness (see
FLOOR WIRE HARNESS (RIGHT BRANCH)
) |
|
| 5 |
F |
2 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 6 |
E |
18 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 7 |
C |
12 |
Not Used |
|
| 8 |
B |
1 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
