DTC P060A: Powertrain Control Module (PCM) Internal Control Module Malfunction (2013-15)
General Description

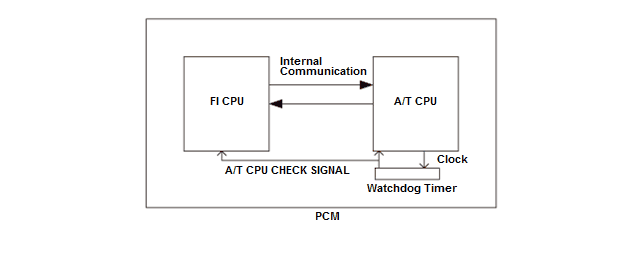

When a malfunction occurs in the communication line between the FI CPU and the A/T CPU in the powertrain control module (PCM) and the internal communication is interrupted for a set time, or when the watchdog timer that monitors the A/T CPU detects an abnormality in the A/T CPU and notifies the FI CPU via the A/T CPU check signal line, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Continuous |
| Sequence | None |
| Duration | 200 milliseconds or more |
| DTC Type | One drive cycle, MIL on |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Battery voltage [BATTERY] | 10.0 V | - |
| Engine start/stop button | ON mode | |
[ ]: HDS Parameter
Malfunction Threshold
One of these symptoms occurs:
- The internal communication between the FI CPU and the A/T CPU is abnormal or the internal communication is interrupted for at least 200 milliseconds.
- The watchdog timer that monitors the A/T CPU detects an abnormality, and the FI CPU receives the A/T CPU check signal.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- PCM internal circuit failure
- PCM program unwritten
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
