VSA Modulator-Control Unit Inputs and Outputs for 47P Connector (Connector Disconnected)

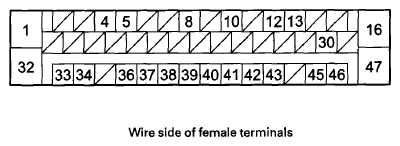

Fig 1: Identifying VSA Modulator-Control Unit 47P Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Terminal number	Wire color	Terminal sign	Description	Signal
1	RED	MR +B	Power source for the motor relay	Battery voltage (about 12 V) at all times
4(1)	BRN	BACK LT	Detects back-up light switch signal	With ignition switch ON (II), or vehicle in ON mode, and back-up light switch ON: battery voltage (about 12 V)
5(2)	ORN	SVCC	Power source for the steering angle sensor	- -
8	PUR	IG1	Power source for activating the system	With ignition switch ON (II), or vehicle in ON mode: battery voltage (about 12 V)
10	LT BLU	K-LINE	Communication with HDS	- -
12	WHT	F-CAN H	F-CAN communication circuit
13	BLK	F-CAN L	F-CAN communication circuit
16	BLK	GND	Ground for the VSA modulator-control unit	Continuity to ground
30(2)	WHT	STR-Z	Detects steering angle sensor signal	- -
32	WHT	FSR +B	Power source for the fail-safe relay	Battery voltage (about 12 V) at all times
33	PUR	FR-GND	Detects right-front wheel speed sensor signal	- -
34	LT GRN	FR +B	Detects right-front wheel speed sensor signal
36	BLU	RL +B	Detects left-rear wheel speed sensor signal	- -
37	RED	RL-GND	Detects left-rear wheel speed sensor signal
38(2)	PUR	STR-B	Detects steering angle sensor signal
39	RED	WEN	Detects write enable signal
40(2)	YEL	SGND	Ground for the steering angle sensor
41(2)	GRN	STR-A	Detects steering angle sensor signal
42	PUR	RR-GND	Detects right-rear wheel speed sensor signal
43	PNK	RR +B	Detects right-rear wheel speed sensor signal
45	GRY	FL +B	Detects left-front wheel speed sensor signal
46	LT BLU	FL-GND	Detects left-front wheel speed sensor signal
47	BLK	MR-GND	Ground for the pump motor	Continuity to ground
(1) M/T (2) Without SH-AWD
