Driving Position Memory Switch Test/Replacement

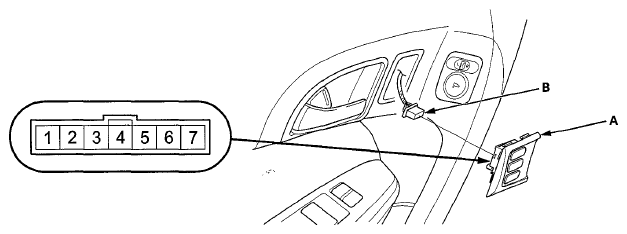

- Carefully pry the driving position memory switch (A) out from the door panel.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the 7P connector (B) from the driving position memory switch.

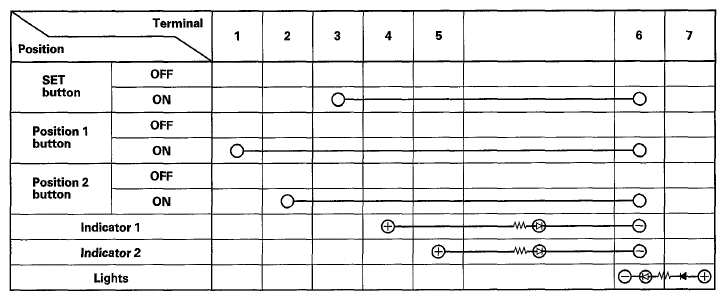

- Check for continuity between the terminals in each switch position according to the table.
NOTE:
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting (
) on the digital volt/ohm meter to check the diode bias.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the continuity is not as specified, replace the switch.
- Install the switch in the reverse order of removal.
