Accelerator Pedal Module Removal and Installation: Removal

Disconnect the APP sensor 6P connector (A).

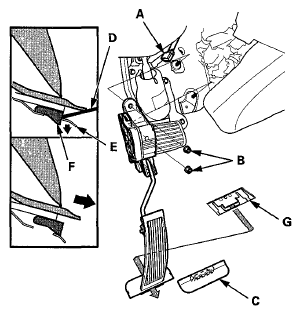

Fig 1: Removing Accelerator Pedal Pad From Pedal Stop
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two mounting nuts (B), then remove the clip (C). Using a flat-tip screwdriver (D), push the lock (E), then remove the accelerator pedal pad (F) from the pedal stop (G).
Remove the accelerator pedal module.
NOTE:
- The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
- If the pedal stop is damaged, replace it by pulling back the carpet (A), and removing the nuts (B), the bolt (C), and the pedal stop (D).

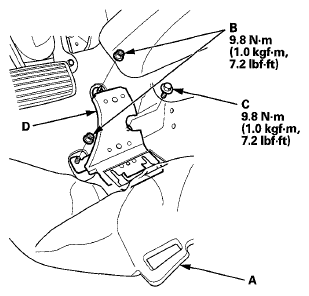

Fig 2: Carpet, Pedal Stop With Mounting Nuts And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
