FTP Sensor Replacement

Remove the bolt (A), and disconnect the EVAP canister vent shut valve 2P connector (B), the FTP sensor 3P connector (C), and the hoses (D).

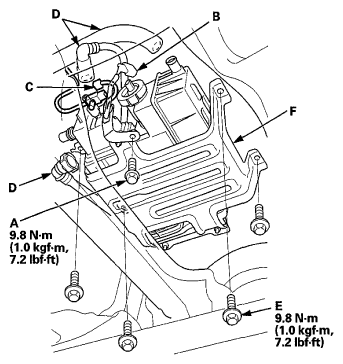

Fig 1: EVAP Canister Vent Shut Valve 2P Connector, FTP Sensor 3P Connector And Hoses With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (E), and move the EVAP canister assembly (F) to the rear.
Remove the FTP sensor (A).

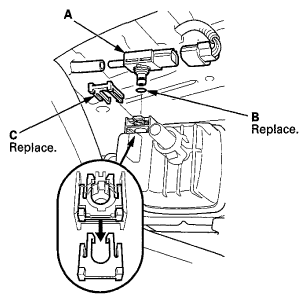

Fig 2: Identifying FTP Sensor, O-Ring And Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal with a new O-ring (B) and a new retainer (C).
