PCV Valve Inspection

  1. Check the PCV valve (A), the hoses (B), and the connections for leaks or restrictions.

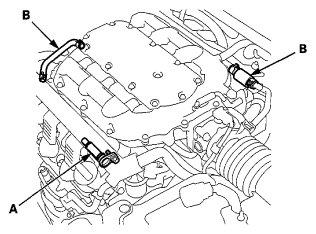

    Fig 1: Identifying PCV Valve And Hoses
    G06944418Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. At idle, listen to the PCV valve (A) with a stethoscope as you lightly pinch the PCV hose (B) with your fingers or pliers several times. Each time the hose is pinched, the valve should click.

    If there is no clicking sound, check the PCV valve collar and O-rings for cracks or damage. If they are OK, replace the PCV valve and recheck.

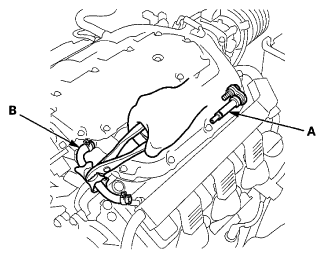

    Fig 2: Identifying PCV Valve And PCV Hose
    G06944419Courtesy of AMERICAN HONDA MOTOR CO., INC.
