MAP Sensor Replacement

  1. Disconnect the MAP sensor connector (A).

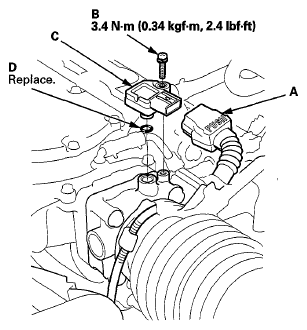

    Fig 1: O-Ring, MAP Sensor With Connector And Torque Specifications
    G06944177Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screw (B).
  3. Remove the MAP sensor (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D).
