Driving Position Memory Switch Test/Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Carefully pry the driving position memory switch (A) out from the door panel.

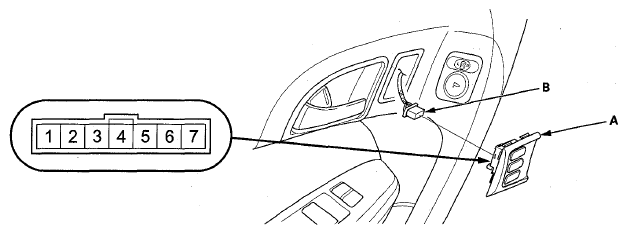

    Fig 1: Identifying Driving Position Memory Switch Connector Terminals
    G07771089Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the 7P connector (B) from the driving position memory switch.
  3. Check for continuity between the terminals in each switch position according to the table.
    NOTE:
    • Make sure the correct test lead (+ or -) is placed on the terminal.
    • When checking for continuity across the diode, use the diode setting ( ) on the digital volt/ohm meter to check the diode bias.
    • Be careful of the characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

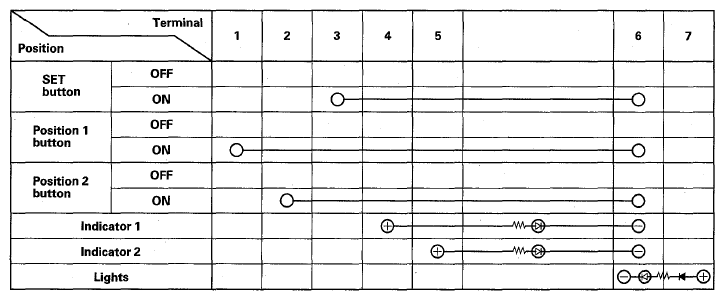

    Fig 2: Driving Position Memory Switch Continuity Chart
    G07771090Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the switch.
  5. Install the switch in the reverse order of removal.
