VSA Modulator-Control Unit Connector For Inputs And Outputs (With Auto Idle Stop System) (2015-17)

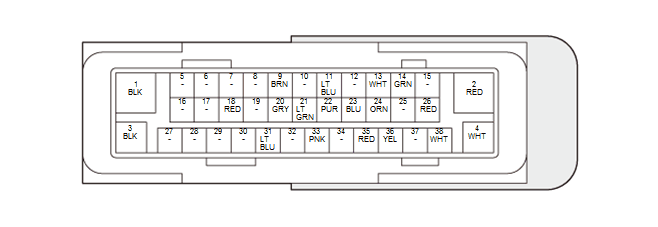

VSA Modulator-Control Unit Inputs and Outputs for 38P Connector (Connector Disconnected)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | GND | Ground for the pump motor |
| 2 | +B ABS/VSA MTR | Power source for the motor relay |
| 3 | GND | Ground for the VSA modulator-control unit |
| 4 | +B ABS/VSA FSR | Power source for the fail-safe relay |
| 5 | Not used | - - - |
| 6 | Not used | |
| 7 | Not used | |
| 8 | Not used | |
| 9 | FR L ABS SNSR- | Detects left-front wheel speed sensor signal |
| 10 | Not used | - - - |
| 11 | K LINE | Communication with HDS |
| 12 | Not used | - - - |
| 13 | FR R ABS SNSR- | Detects right-front wheel speed sensor signal |
| 14 | BRK LAMP | Drives the brake light relay |
| 15 | Not used | - - - |
| 16 | Not used | |
| 17 | Not used | |
| 18 | BRK DIAG | Detects brake light relay |
| 19 | Not used | - - - |
| 20 | F-CAN B_L | F-CAN communication circuit |
| 21 | FR L ABS SNSR+ | Detects left-front wheel speed sensor signal |
| 22 | RR L ABS SNSR- | Detects left-rear wheel speed sensor signal |
| 23 | RR R ABS SNSR+ | Detects right-rear wheel speed sensor signal |
| 24 | FR R ABS SNSR+ | Detects right-front wheel speed sensor signal |
| 25 | Not used | - - - |
| 26 | F-CAN A_L | F-CAN communication circuit |
| 27 | Not used | - - - |
| 28 | Not used | |
| 29 | Not used | |
| 30 | Not used | |
| 31 | F-CAN B_H | F-CAN communication circuit |
| 32 | Not used | - - - |
| 33 | RR L ABS SNSR+ | Detects left-rear wheel speed sensor signal |
| 34 | Not used | - - - |
| 35 | RR R ABS SNSR- | Detects right-rear wheel speed sensor signal |
| 36 | IG1 VSA (DC) | Power source for activating the system |
| 37 | Not used | - - - |
| 38 | F-CAN A_H | F-CAN communication circuit |
