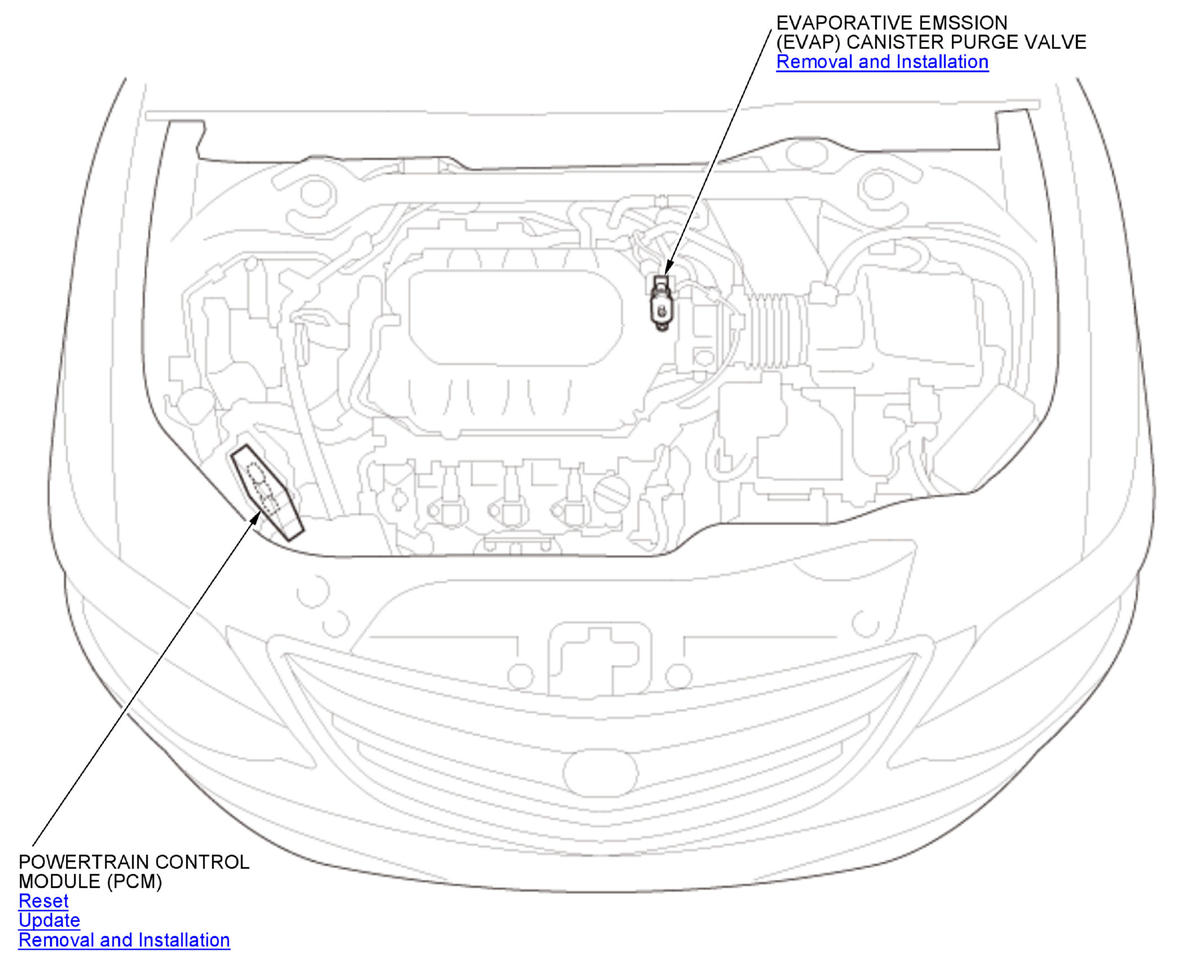

EVAP Control System

GHH345755Courtesy of HONDA, U.S.A., INC.

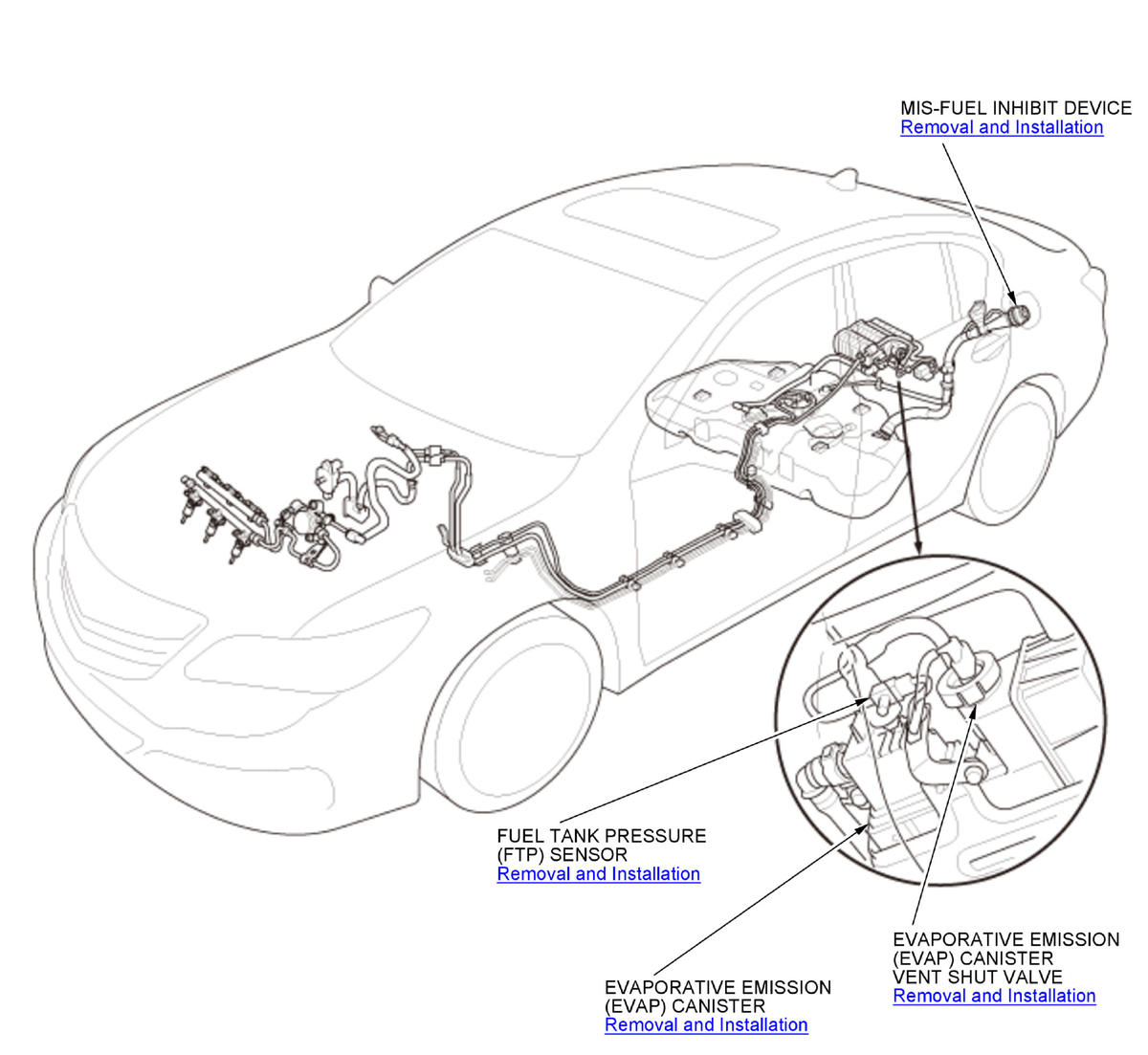

USA and Canada models

GHH345756Courtesy of HONDA, U.S.A., INC.

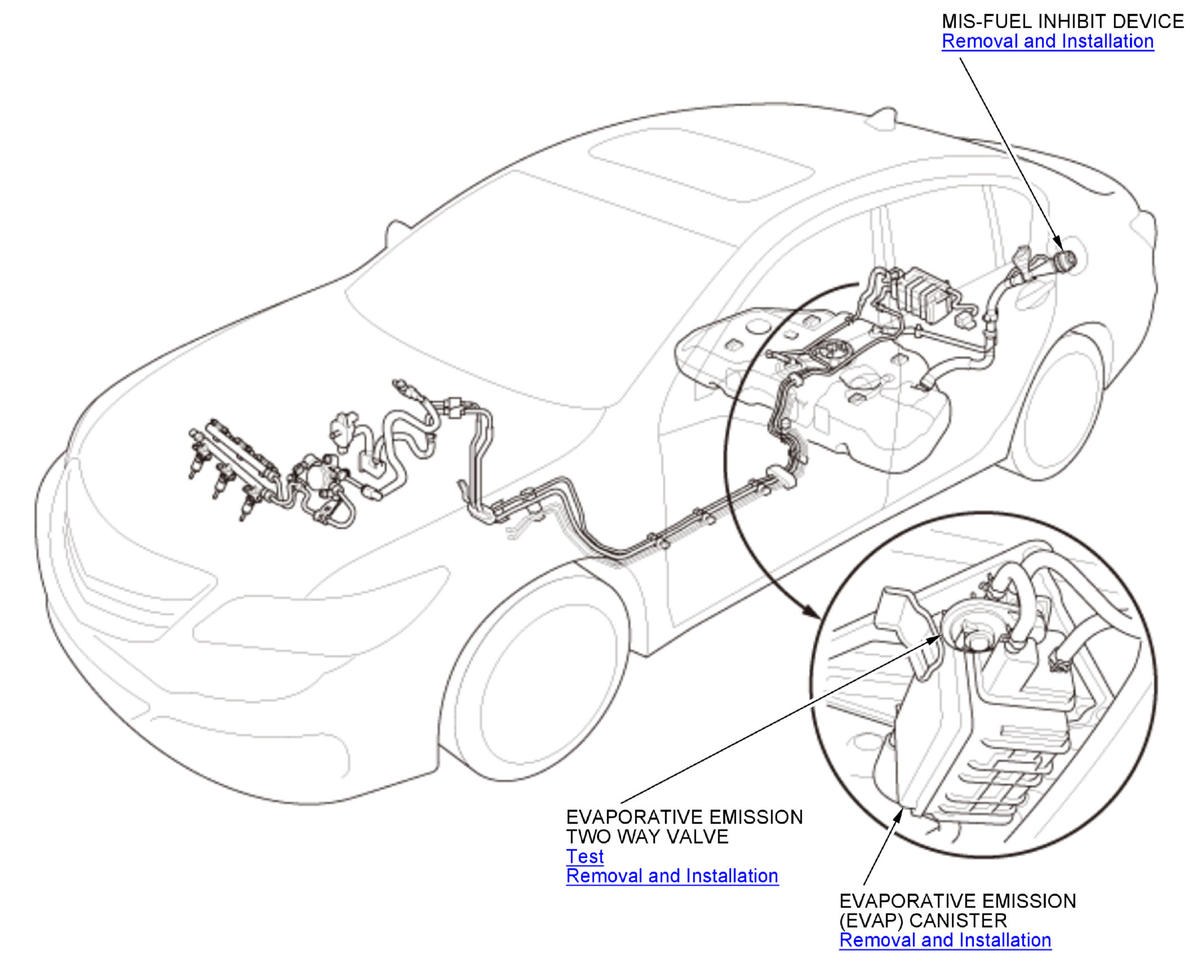

Mexico models

GHH345757Courtesy of HONDA, U.S.A., INC.
