Engine Block Assembly (2014 2015 2016 2017)

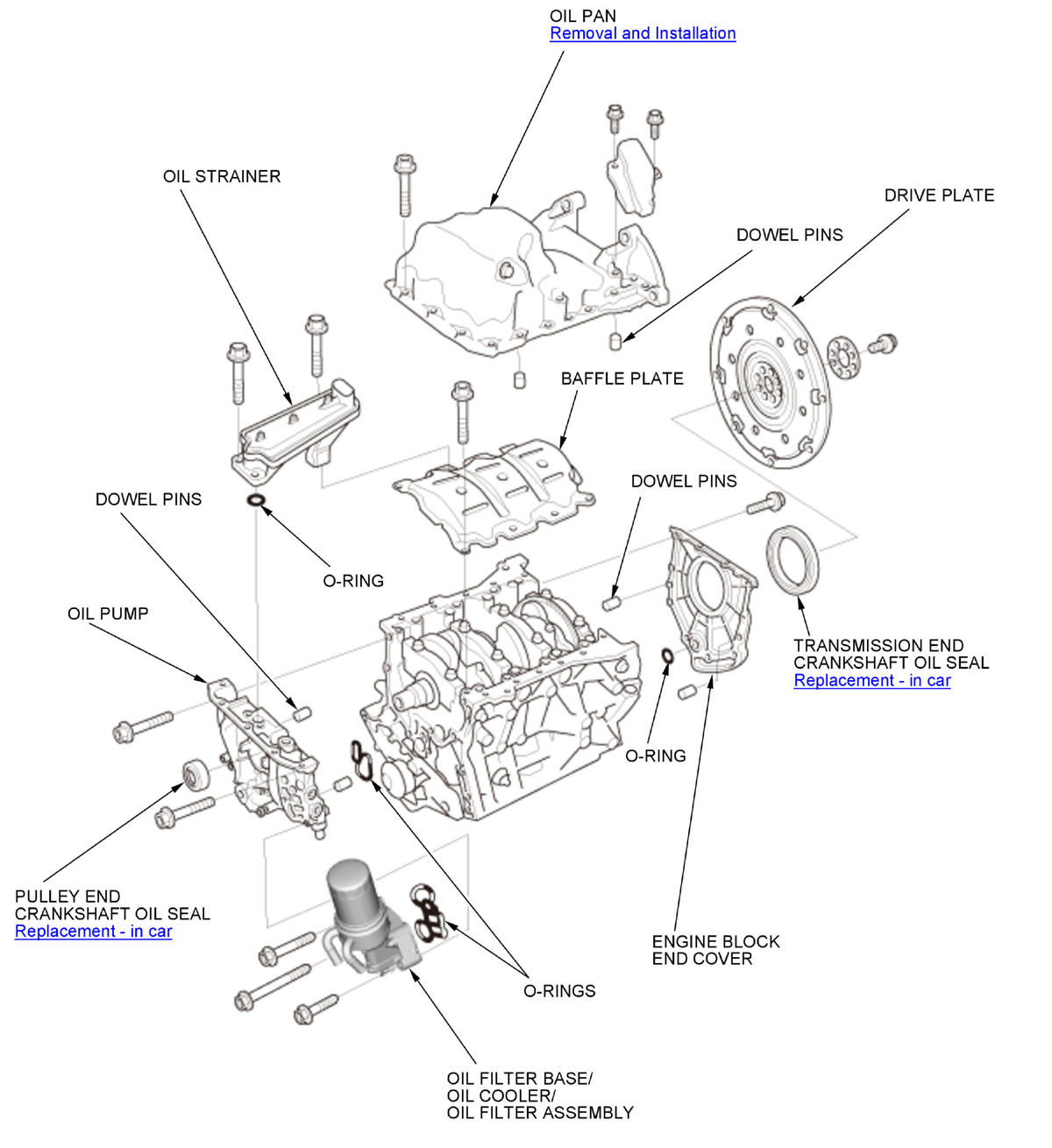

GHH345760Courtesy of HONDA, U.S.A., INC.

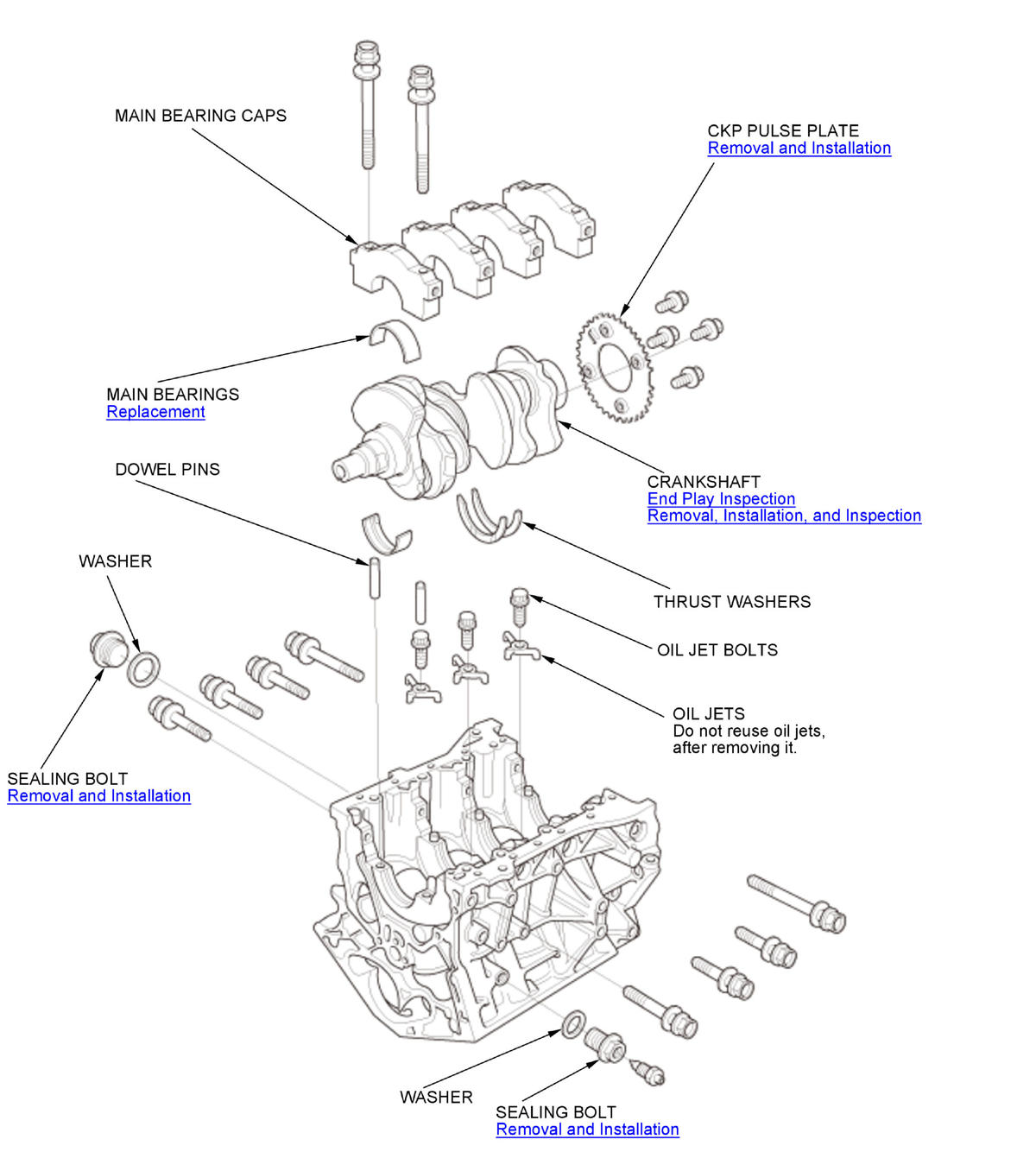

GHH345761Courtesy of HONDA, U.S.A., INC.

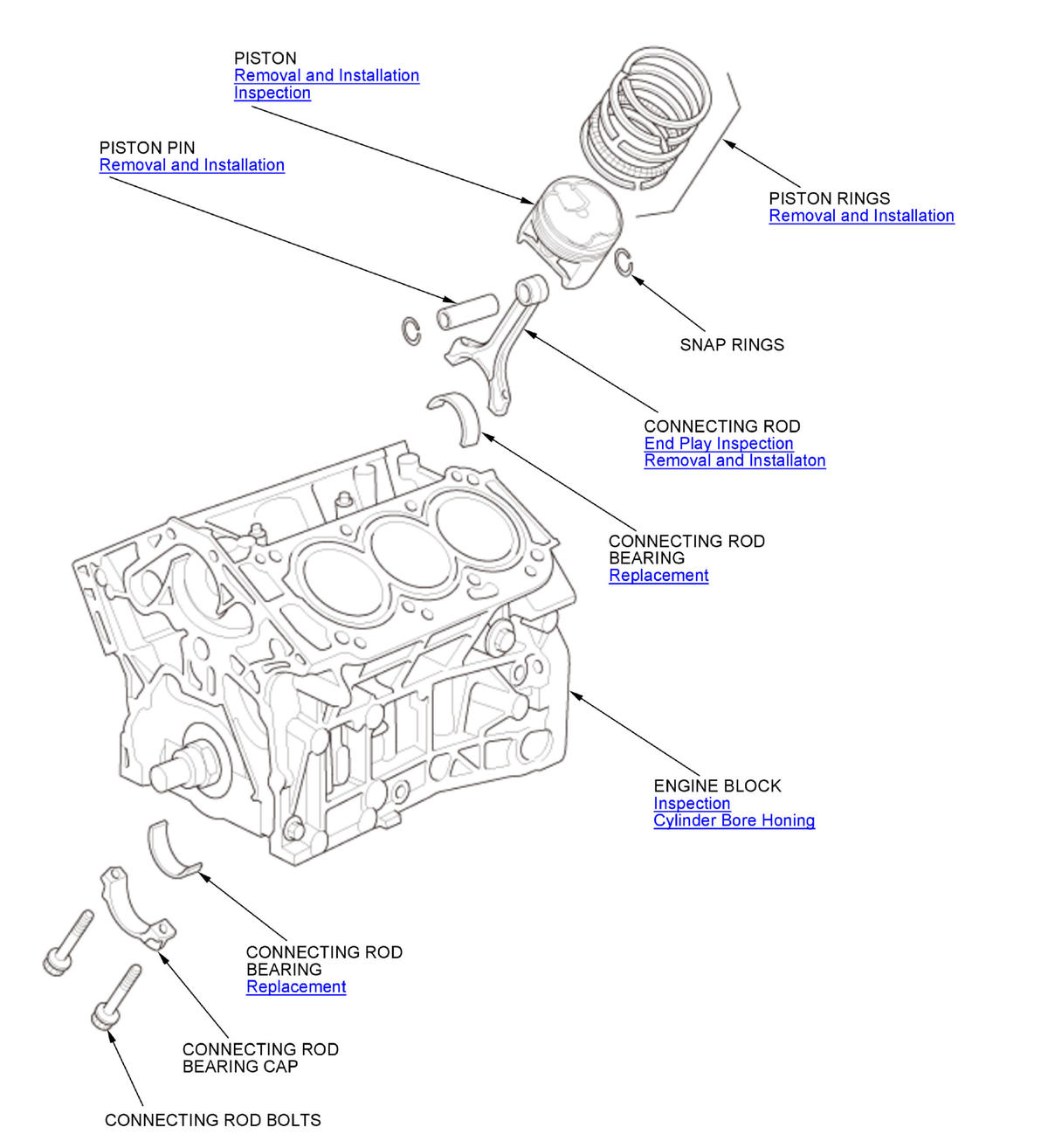

GHH345762Courtesy of HONDA, U.S.A., INC.
