Electrical System - Service, Testing And Troubleshooting
>>
Relay Box Locations And Control Unit Locations
>>

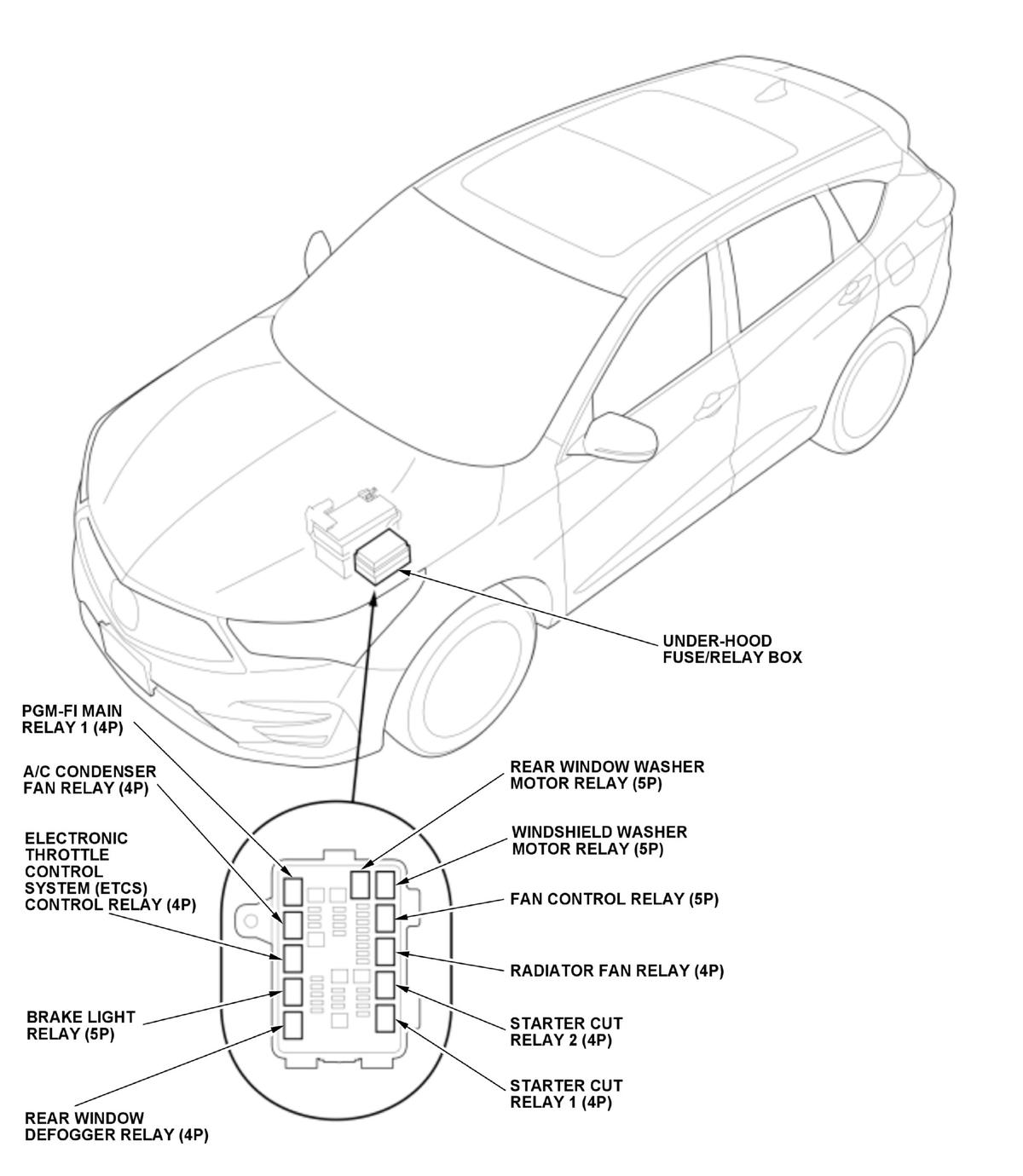

Relay Locations
>>
Engine Compartment
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Compartment
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
