Multi View Camera Switch Test: Test

How To Use This Service Information .

NOTE:

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
The multi view camera switch is a part of the wiper/washer switch, and it cannot be replaced by itself.

Multi View Camera Switch - Test
Preconditions
- Wiper/Washer Switch Removed
Procedure/Specifications
- Check the multi view camera switch (A) according to the table. (Figure 1 and 2)

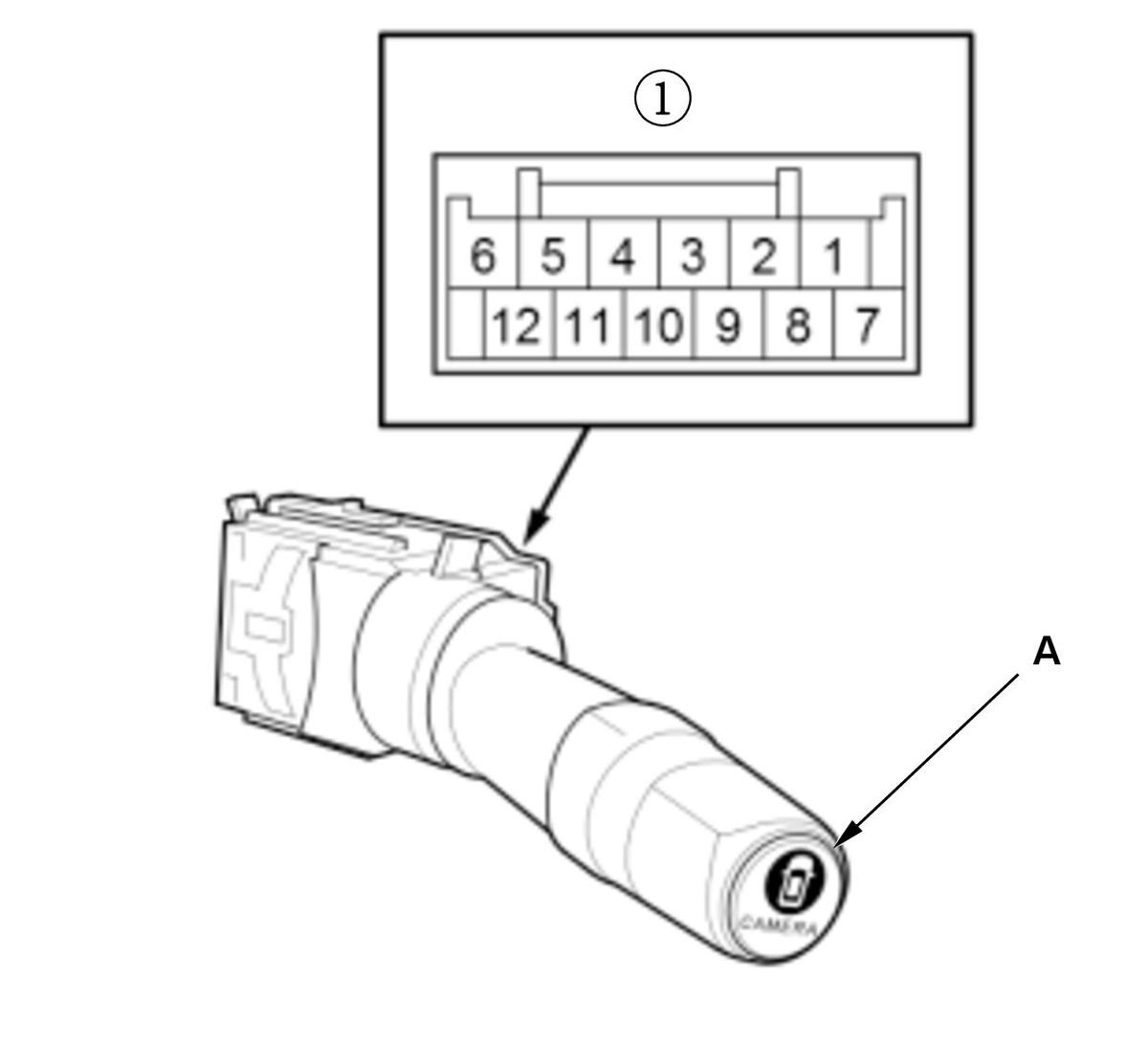

Figure 1

Courtesy of HONDA, U.S.A., INC.

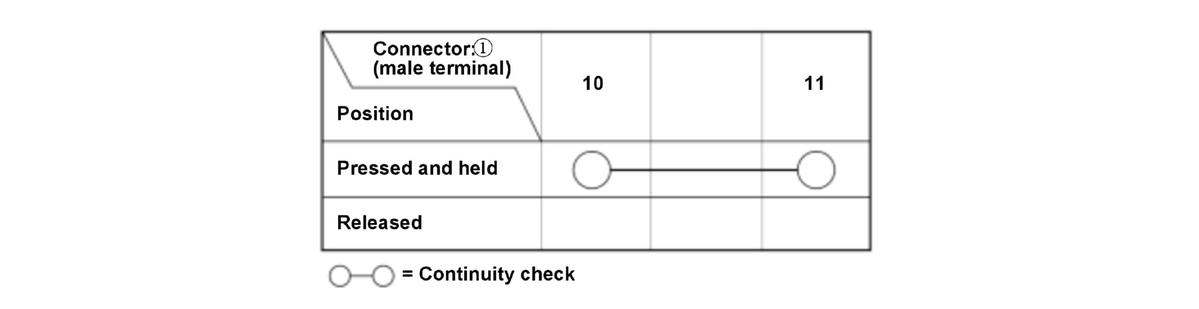

Figure 2

Courtesy of HONDA, U.S.A., INC.

Result
- If the result is not as specified, replace the wiper/washer switch .
