Repair Procedure: Notes

How to use this Service Information .

WARNING:

SRS components are located in this area. Before doing repairs or service:
- Review the SRS component locations .
- Review the precautions and procedures .

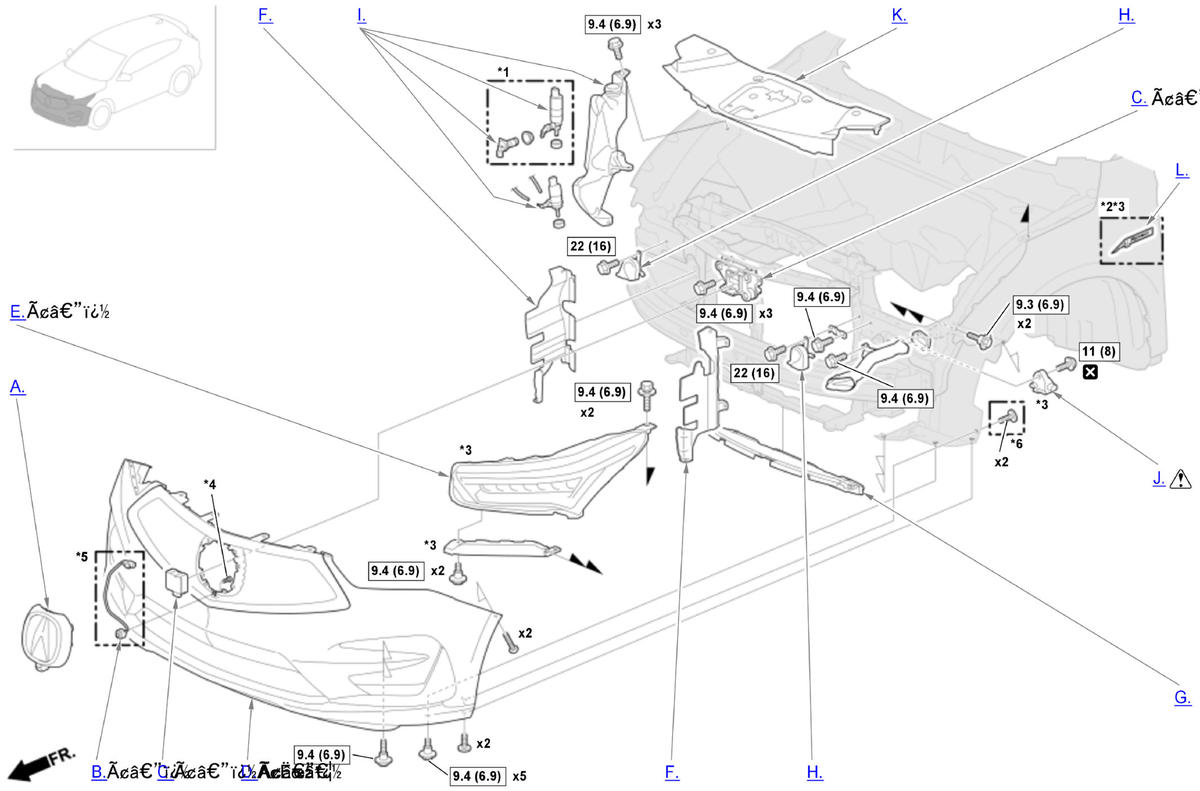

Fig 1: Front Bumper Area Replacement Components With Torque Specifications

GHH555060

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
1: With headlight washer 2: A-SPEC type 3: Part(s) are shown for one side only as the procedure is the same for both sides. 4: Remove the screw with a TORX socket, T4. 5: With multi view camera system 6:'22-23

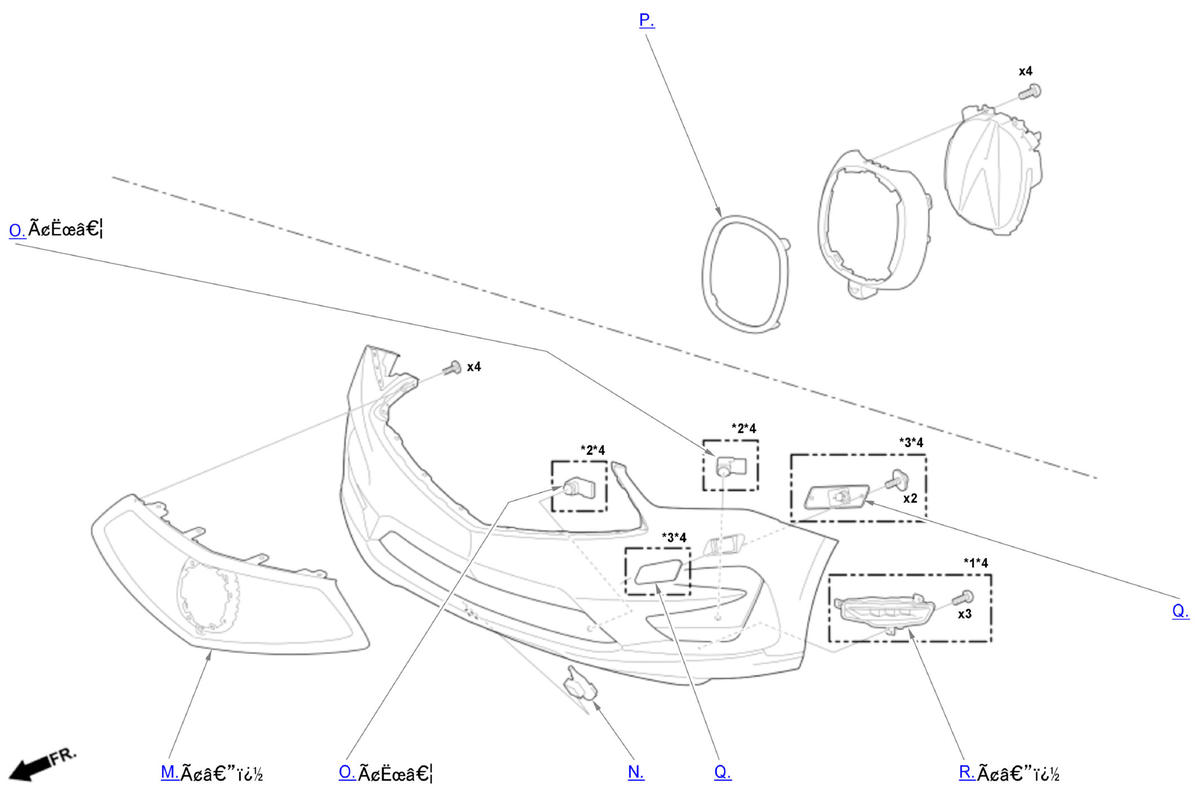

GHH555061

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
1: With fog light 2: With parking and back-up sensor system 3: With headlight washer 4: Part(s) are shown for one side only as the procedure is the same for both sides.
