Repair Procedure: Notes

How to use this Service Information .

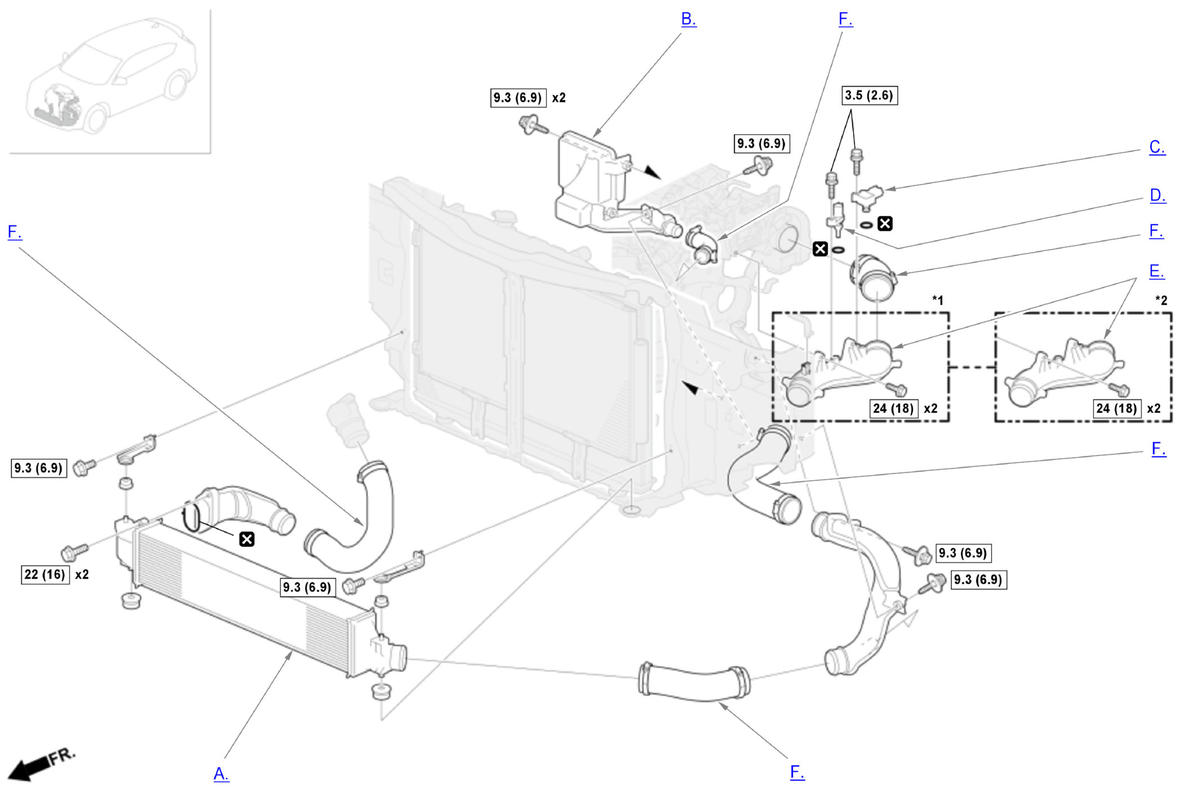

Fig 1: Intercooler Area Replacement Components With Torque Specifications
GHH339893Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
*1: USA and Canada models
*2: Mexico models

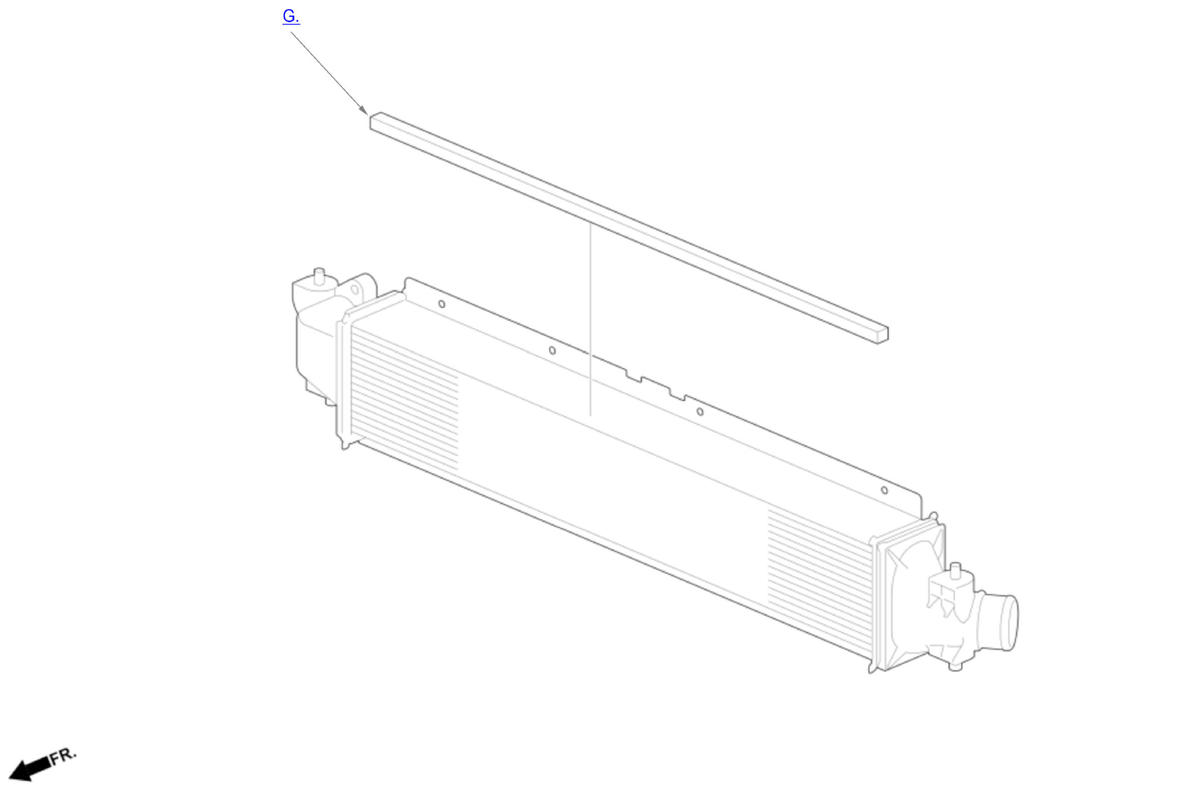

GHH339894Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
