Repair Procedure: Notes

How to use this Service Information .

Keep all foreign particles out of the transmission.

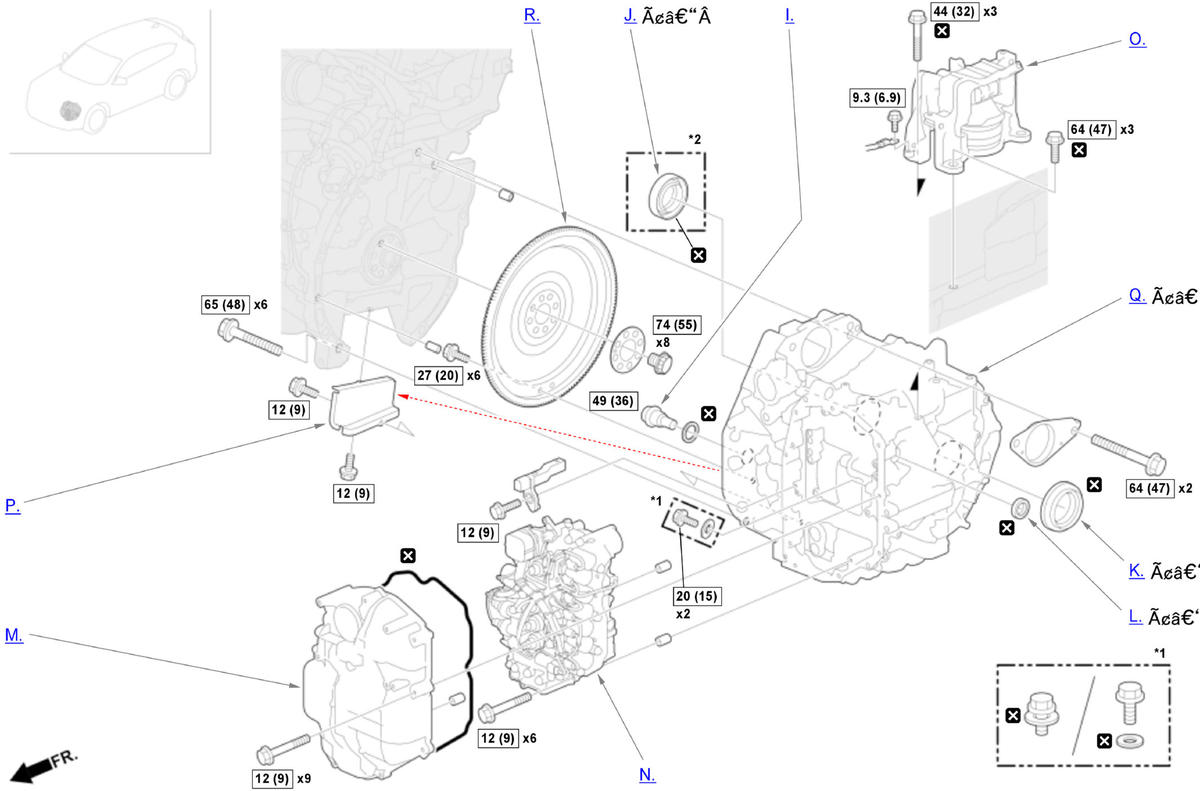

Fig 1: Transmission Area Replacement Components With Torque Specifications (1 Of 3)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
*1: 2 types *2: With AWD

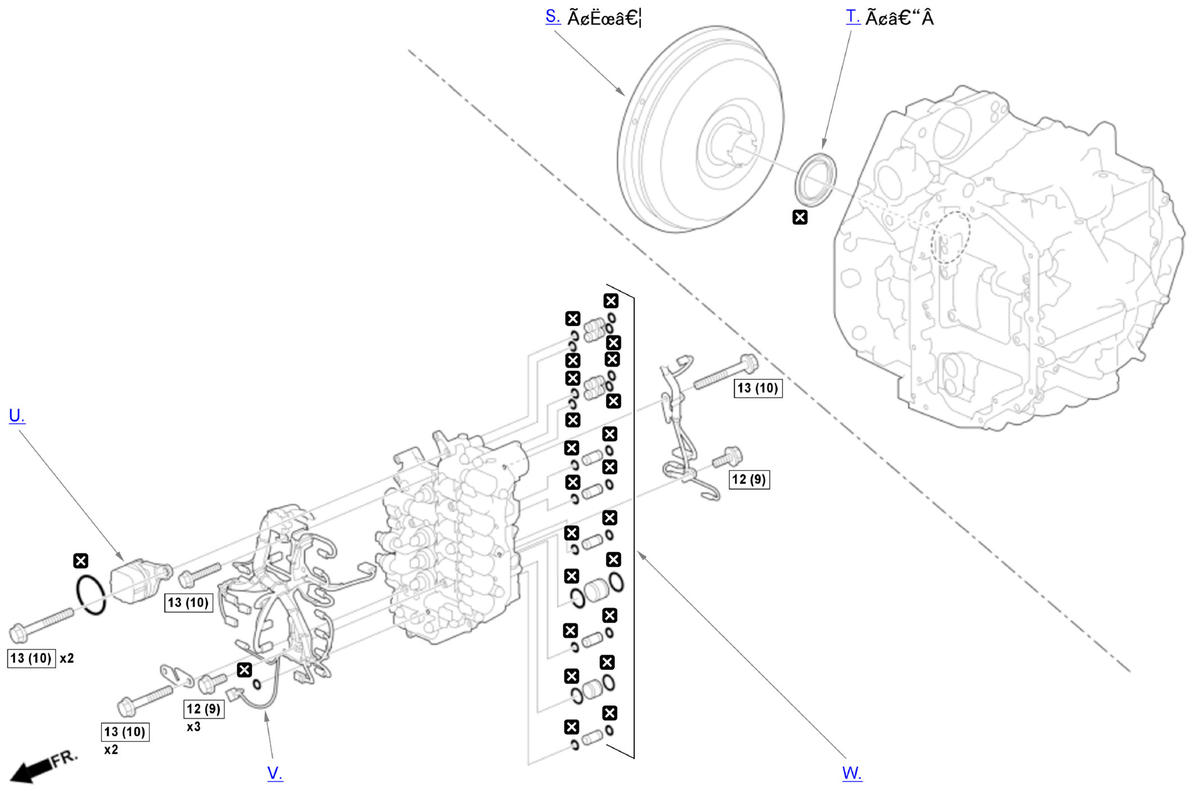

Fig 2: Transmission Area Replacement Components With Torque Specifications (2 Of 3)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
*1: 2 types *2: Without AWD

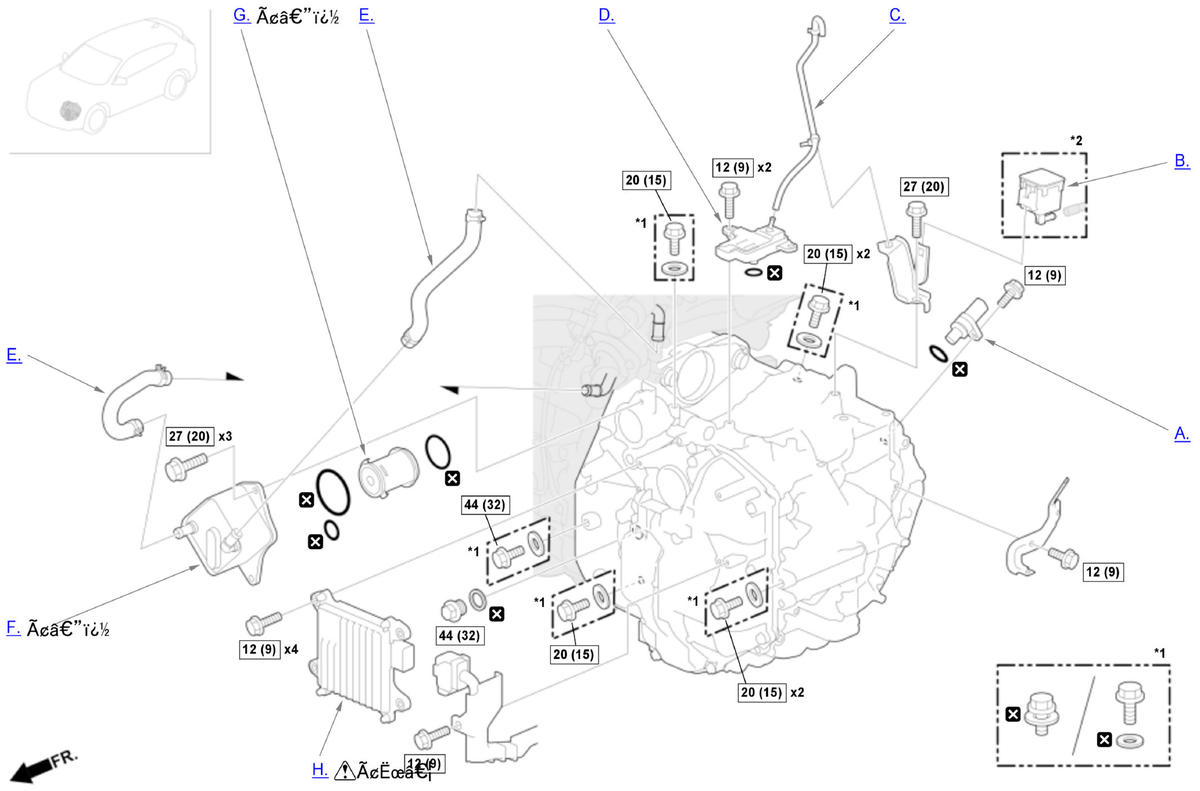

Fig 3: Transmission Area Replacement Components With Torque Specifications (3 Of 3)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal
