Repair Procedure: Procedure

A.

■ Sub-Procedure

NOTE: Check the relief valve must slide freely in the housing bore. Replace if scored.

• Installation

Lubricant Specifications

Application Position	Type
Relief Valve	Engine Oil

B.
■ Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

• Installation

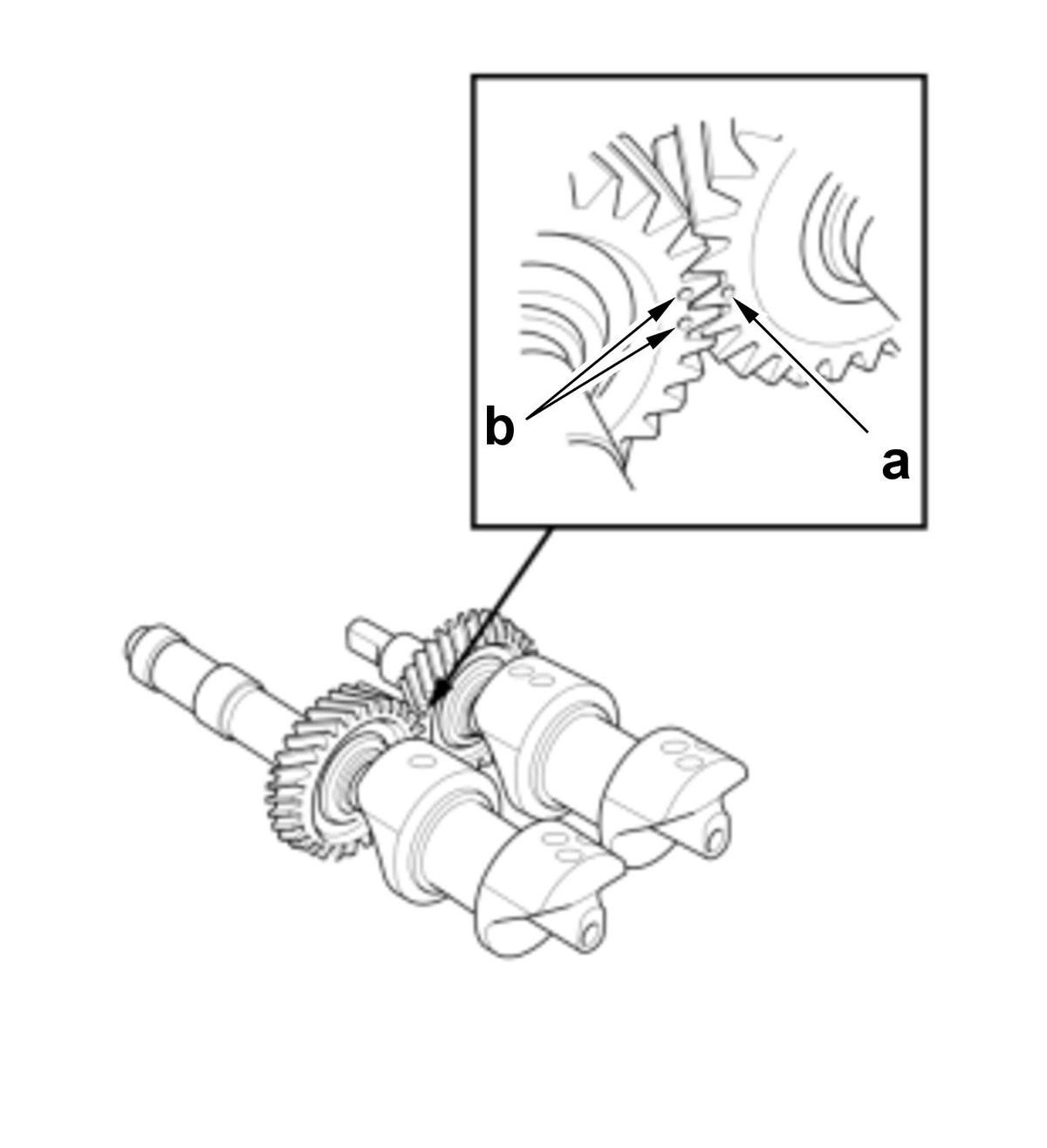

- Align the punch mark on the rear balancer shaft (a) in the center of the two punch marks on the front balancer shaft (b), then install the balancer shafts on the lower balancer shaft holder.
