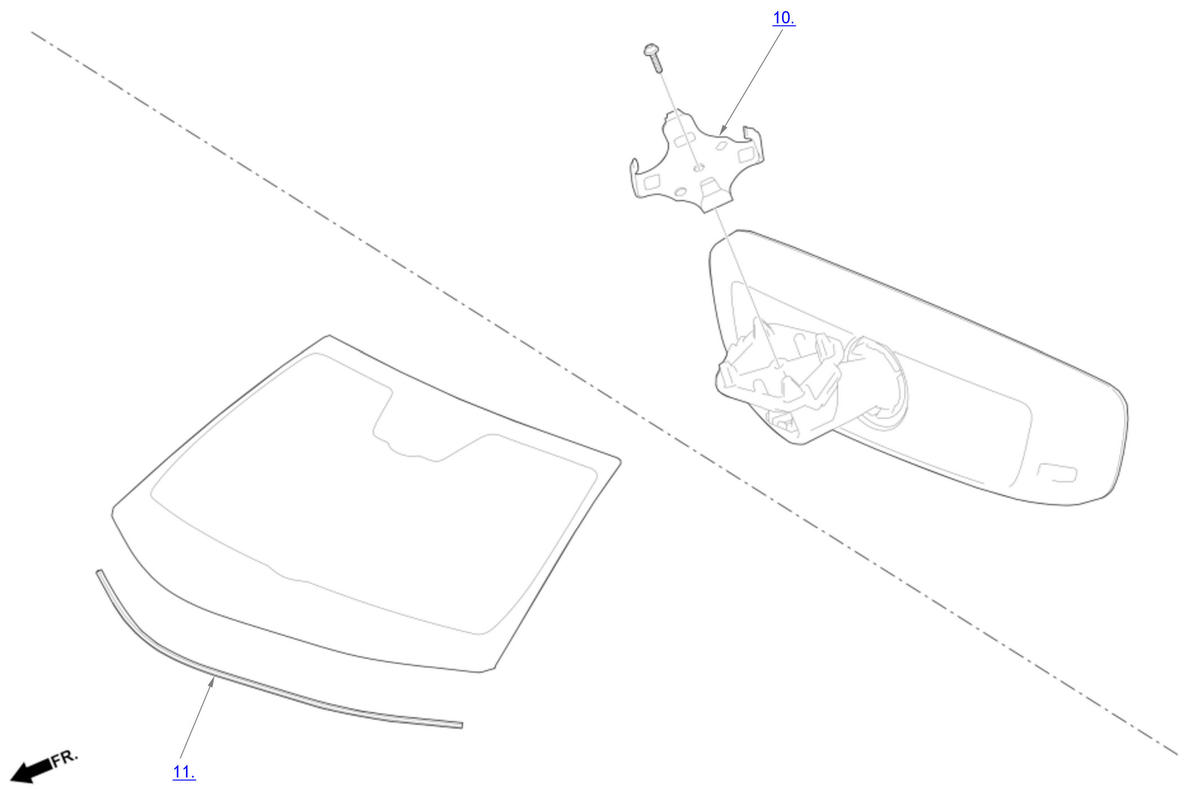

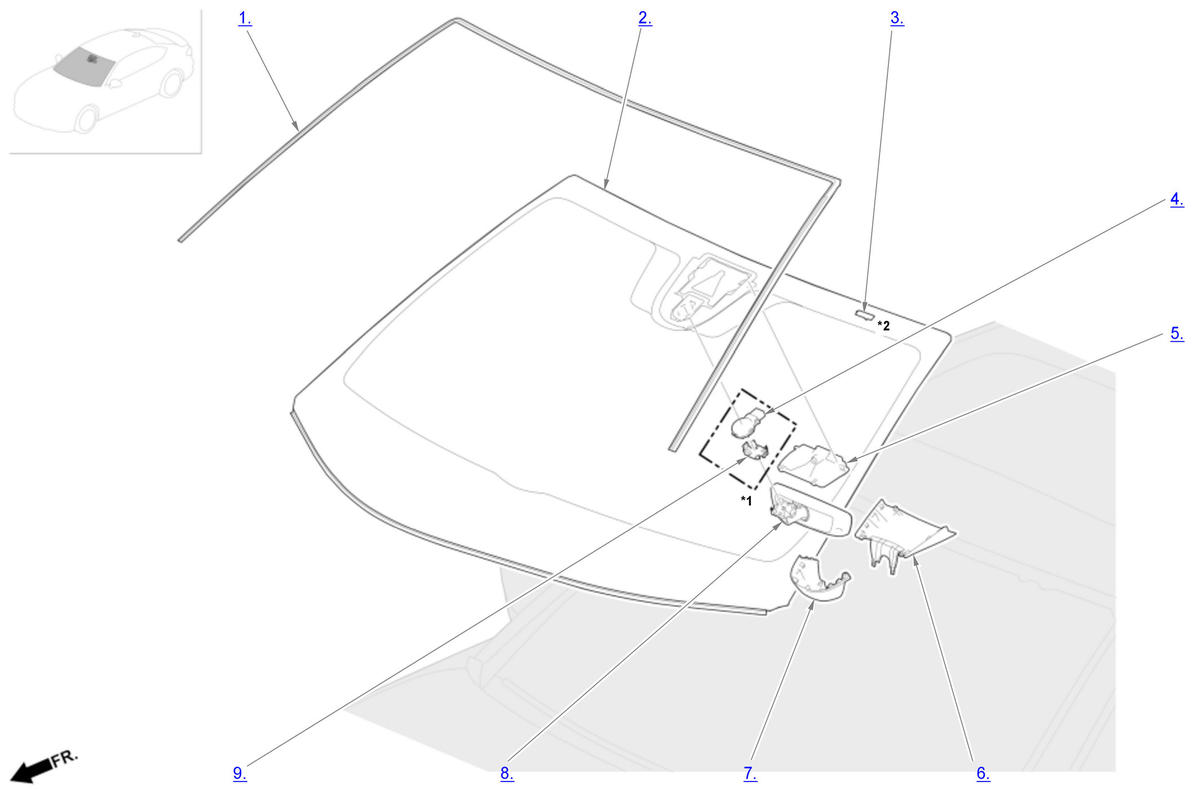

Exploded View Legend
For Replacement of components listed below, see Repair Procedure
| *1: With automatic wiper *2: Part(s) are shown for one side only as the procedure is the same for both sides. |
Windshield Area Components
| Component Name | Callout |
|---|---|
| Windshield Molding | 1 |
| Windshield | 2 |
| Windshield Clip | 3 |
| Automatic Lighting/Rain Sensor | 4 |
| Multipurpose Camera Unit | 5 |
| Camera Cover | 6 |
| Camera Cover Lid | 7 |
| Rearview Mirror | 8 |
| Automatic Lighting/Rain Sensor Clip | 9 |
| Mount Spring | 10 |
| Windshield Lower Molding | 11 |
