How To Access The Engine Oil Monitor

Turn the vehicle to the ON mode.
Roll the multi-function steering wheel controller until the "Engine Oil Monitor" appears on the multi-information display. Engine Oil Monitor shows a remaining distance (for example 300 km) to needing service, and maintenance item code.

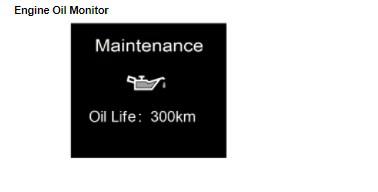

Engine Oil Monitor

Courtesy of AMERICAN HONDA MOTOR CO., INC.AMERICAN HONDA MOTOR CO., INC.

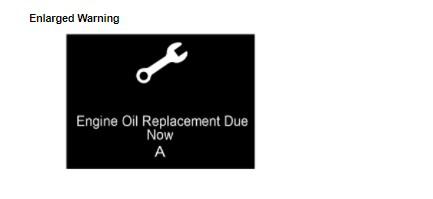

Enlarged Warning

Courtesy of AMERICAN HONDA MOTOR CO., INC.AMERICAN HONDA MOTOR CO., INC.

Maintenance Items shown on the display are:
- Item A: Replace engine oil.
- Item B: Replace engine oil and engine oil filter.

NOTE:

When the remaining distance reaches "0," the Engine Oil Monitor shows a distance past due, for example "-10 km" on the display, and the distance past due will start blinking.
