EPS Control Unit Connector for Inputs and Outputs
| Connector Index |
| EPS Control Unit Connector A (2P) |
| EPS Control Unit Connector B (6P) |

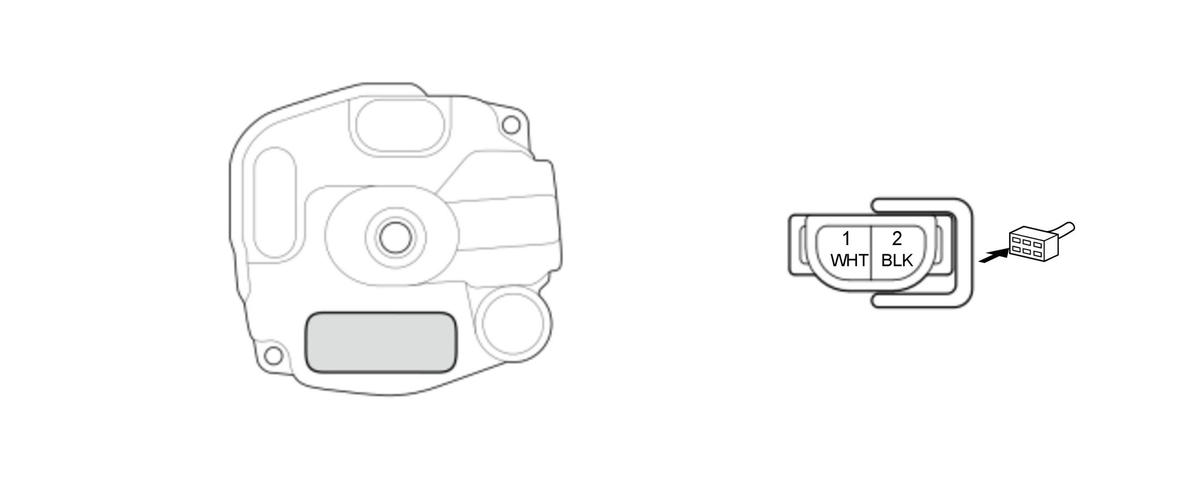

EPS Control Unit Connector A (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
+B_EPS |
Power source for the actuator EPS motor |
| 2 |
GND |
Ground for the EPS control unit |

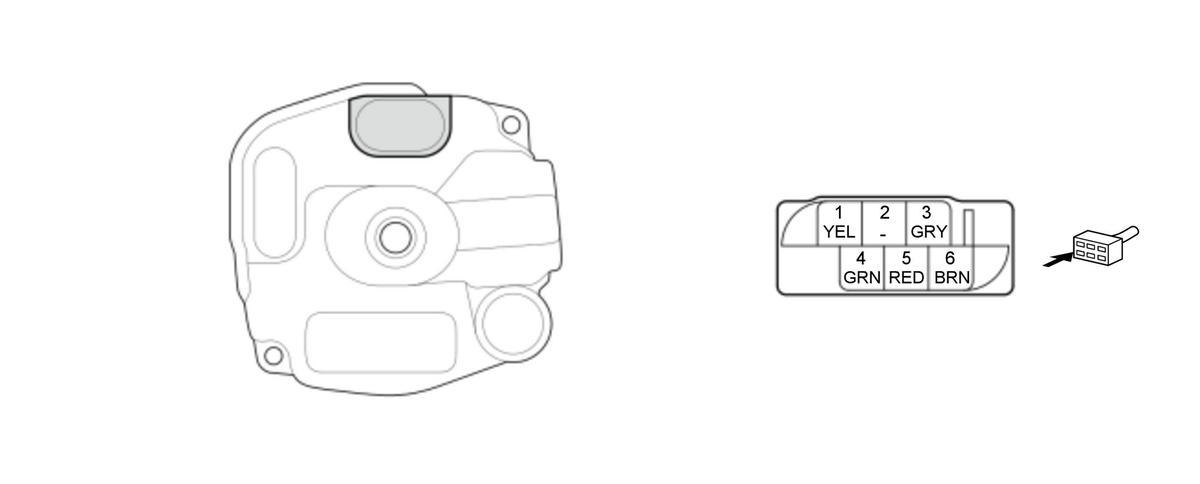

EPS Control Unit Connector B (6P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
VF-CAN B_L |
F-CAN communication circuit |
| 2 |
Not used |
--- |
| 3 |
VF-CAN C_H |
F-CAN communication circuit |
| 4 |
VF-CAN B_H |
F-CAN communication circuit |
| 5 |
IG1 |
Power source for activating the system |
| 6 |
VF-CAN C_L |
F-CAN communication circuit |
