Driver's Seat Position Sensor Operation Check: Procedure

How to use this service information .

1. Driver's Seat Position Sensor - Operation Check

   Preconditions

   • HDS connected

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Make sure the driver's seat is in the full forward position.

   2. Select the following menu buttons on the HDS screen in sequence.

   • SRS (System Selection Menu)
   • Data List

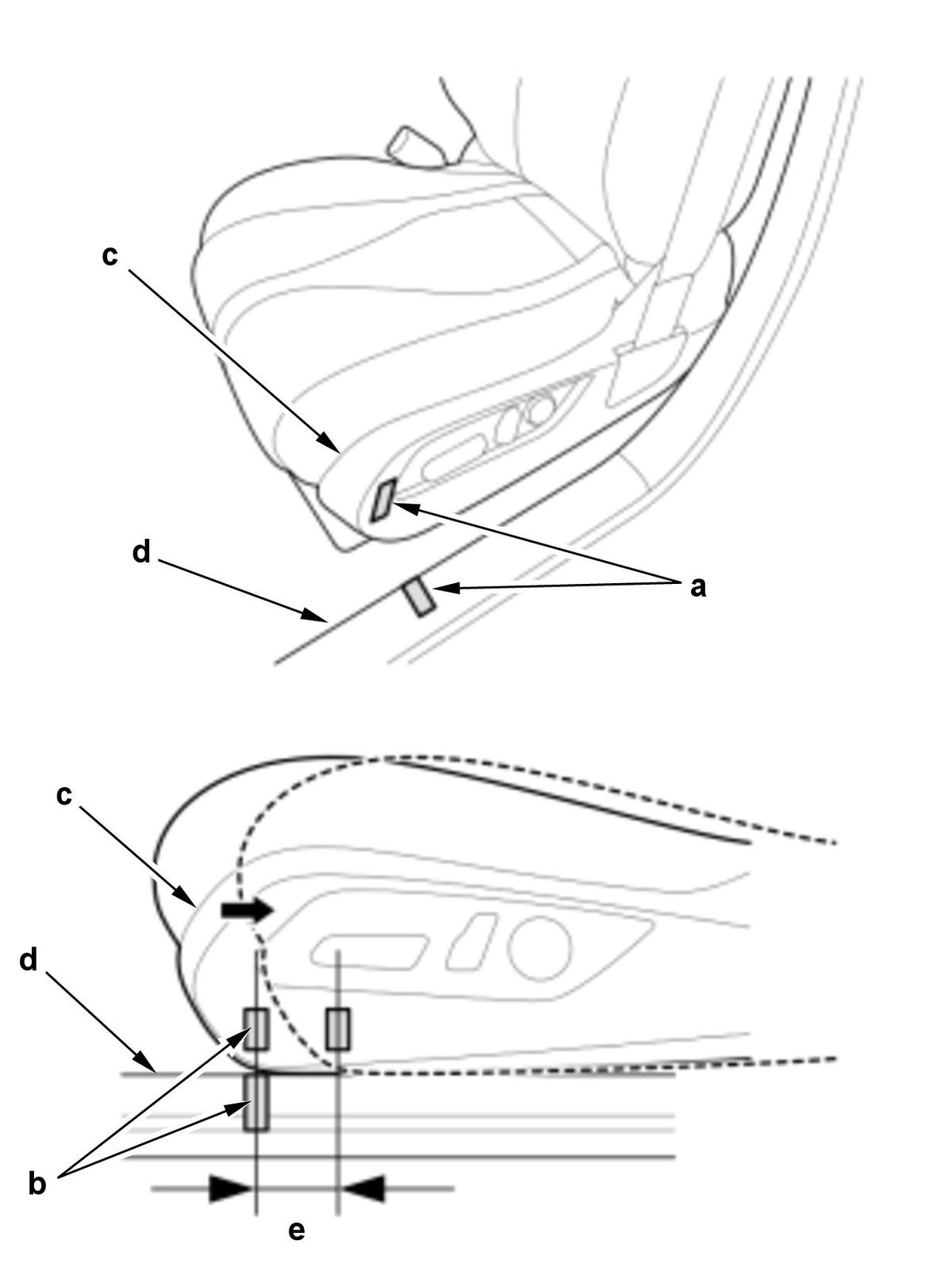

   3. Using two pieces of tape (a), make alignment marks (b) on the recline cover (c) and the front door sill trim (d) as shown. The driver's seat position sensor should read NEAR on the HDS.

   Seat Position

   Specification
   e	40 mm (1.57 in) - 55 mm (2.17 in)

   4. Move the seat back in small increments (about 5 mm (0.20 in)) until the driver's seat position sensor reads NOT-NEAR on the HDS. The measurement (e), should be about 55 mm (2.17 in) from the full forward position.

   NOTE:

   It takes a few seconds for the HDS to change display, so wait for about 5 seconds between each movement. If the driver's seat position sensor data does not work as described above, check the driver's seat position sensor for damage, and replace parts as needed.

   5. The vehicle is in the OFF (LOCK) mode.
