Relay Control Module Connector for Inputs and Outputs
| Connector Index |
| Relay Control Module Connector A (8P) |
| Relay Control Module Connector B (10P) |
| Relay Control Module Connector C (18P) |

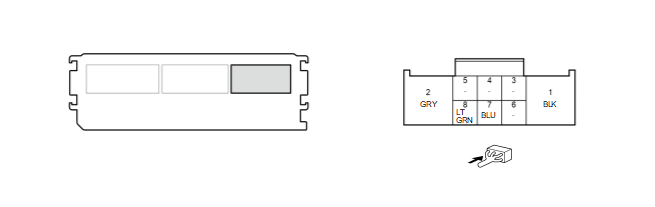

Relay Control Module Connector A (8P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
GND |
Ground for relay control module |
| 2 |
+B_R/M1 |
Power source for relay control module |
| 3 |
Not used |
--- |
| 4 |
Not used |
--- |
| 5 |
Not used |
--- |
| 6 |
Not used |
--- |
| 7 |
SMALL |
Outputs SMALL signal |
| 8 |
INTR_LT_CUT_RLY_OUT1 |
Outputs INTR_LT_CUT_RLY_OUT1 signal |

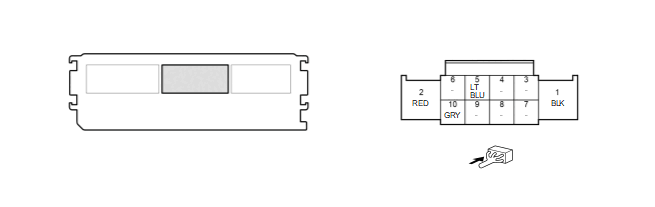

Relay Control Module Connector B (10P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
GND |
Ground for relay control module |
| 2 |
+B_RM2 |
Power source for relay control module |
| 3 |
Not used |
--- |
| 4 |
Not used |
--- |
| 5 |
SMALL |
Outputs SMALL signal |
| 6 |
Not used |
--- |
| Terminal number |
Terminal name |
Description |
| 7 |
Not used |
--- |
| 8 |
Not used |
--- |
| 9 |
Not used |
--- |
| 10 |
ILLUMI+ |
Outputs ILLUMI+ signal |

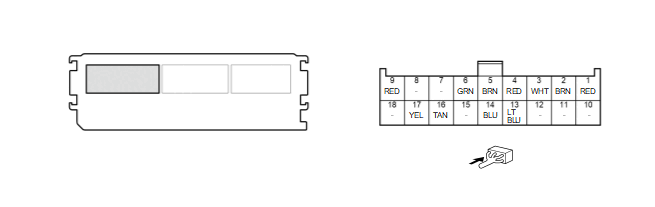

Relay Control Module Connector C (18P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
+B_BACK_UP |
Power source for relay control module |
| 2 |
IG1_METER |
IG1 power source |
| 3 |
BB-CAN_H |
Communication line |
| 4 |
BB-CAN_L |
Communication line |
| 5 |
FR_WASHER_RLY_CL- |
Outputs FR_WASHER_RLY_CL- signal |
| 6 |
SCTY_HORN_RLY_CL- |
Outputs SCTY_HORN_RLY_CL- signal |
| 7 |
Not used |
--- |
| 8 |
Not used |
--- |
| 9 |
INTR_LT_CUT_RLY_OUT2 |
Outputs INTR_LT_CUT_RLY_OUT2 signal |
| 10 |
Not used |
--- |
| 11 |
Not used |
--- |
| 12 |
Not used |
--- |
| 13 |
SRM_BACK_UP |
Detects SRM_BACK_UP signal |
| 14 |
HOOD_SW |
Detects HOOD_SW signal |
| 15 |
Not used |
--- |
| 16 |
HORN_SW |
Detects HORN_SW signal |
| 17 * |
FR_FOG_LT_RLY_CL- |
Outputs FR_FOG_LT_RLY_CL- signal |
| 18 |
Not used |
--- |
*: With fog light
