Engine Oil Level Check: Check

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

1. Engine Oil Level - Check

   Preconditions

   • Vehicle on Level Ground
   • Engine Warmed Up

     NOTE:  Warm up the engine by raising the engine speed around 3, 000 rpm until the cooling fan(s) comes on.

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Turn the engine off after warming it up and wait 3 minutes.

   2. Remove the dipstick, and wipe off the dipstick, then reinstall the dipstick.

   3. Remove the dipstick, and check the oil level.

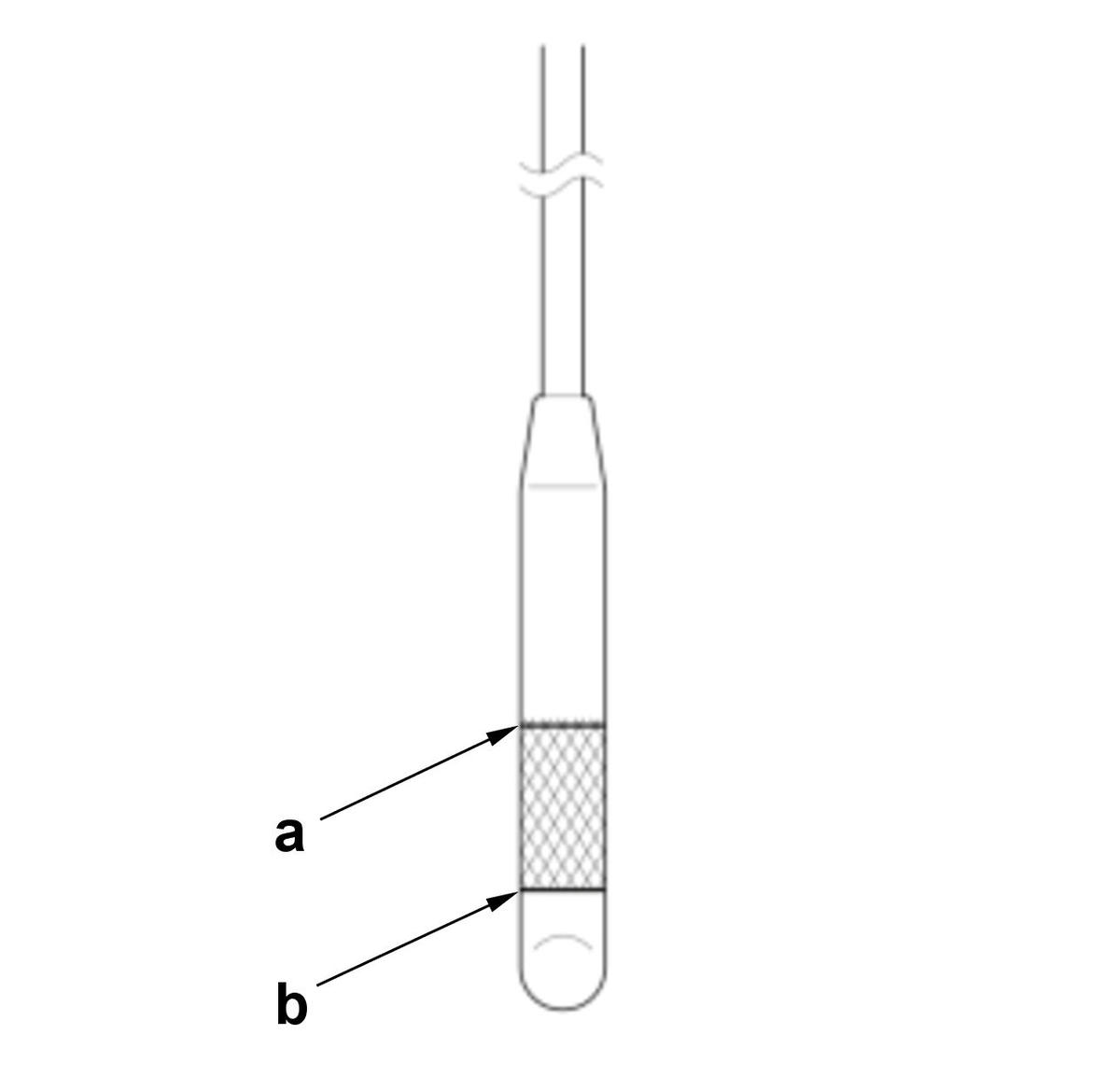

   Specifications

   Position		Specification
   a	Upper Mark	Engine oil level should be between (a) and (b).
   b	Lower Mark

   Result

   • If the oil level is near or below the lower mark, check for oil leaks, and add oil - Refer to: Engine Oil Level Check  or Engine Oil Replacement(3.5L Engine)  or Engine Oil Replacement(3.0L Engine)  to bring it to the upper mark.
