Safety Support Switch Test (Integrated Driver Support System) (2025): Test

How to use this service information .

NOTICE:

• When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.
• The following describes the details of the Integrated Driver Support System. Refer to Driving Support System Description for the function applied to your vehicle - Refer to: Driving Support System Description(Integrated Driver Support System (Camera and Five Radars)) (2025) or Driving Support System Description(Integrated Driver Support System) (2025) or Driving Support System Description (2022-24) .

1. Safety Support Switch - Test

   Preconditions

   • Driver's Lower Cover Removed

   Procedure

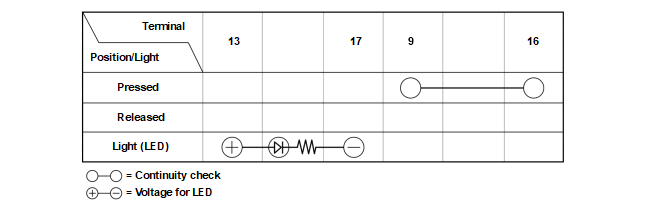

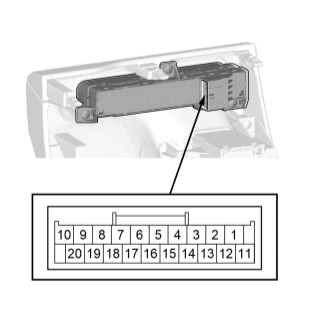

   • Check the switch according to the table. (Figure 1 and 2)

     NOTICE:

     • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
     • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

     NOTE:  The switch location of the safety support switch is different depending on the model. (Figure 1)

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the multi visor switch .
