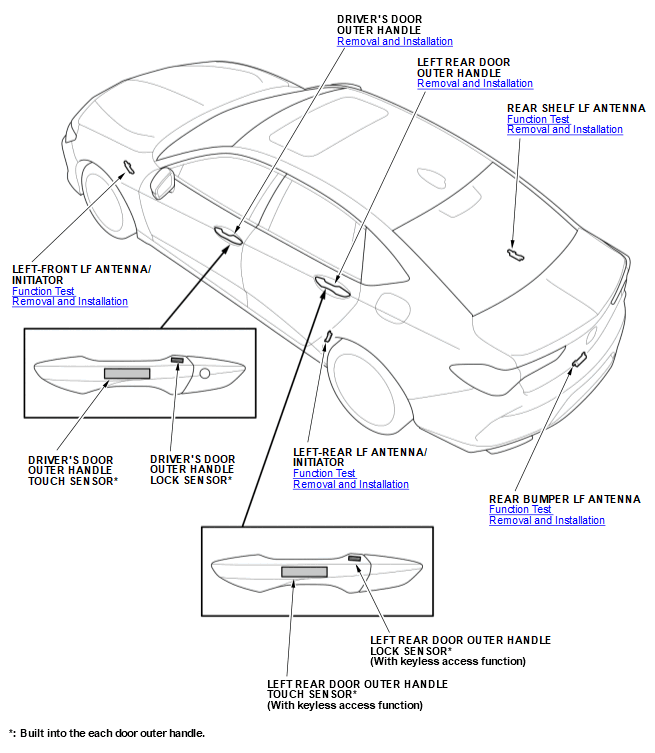

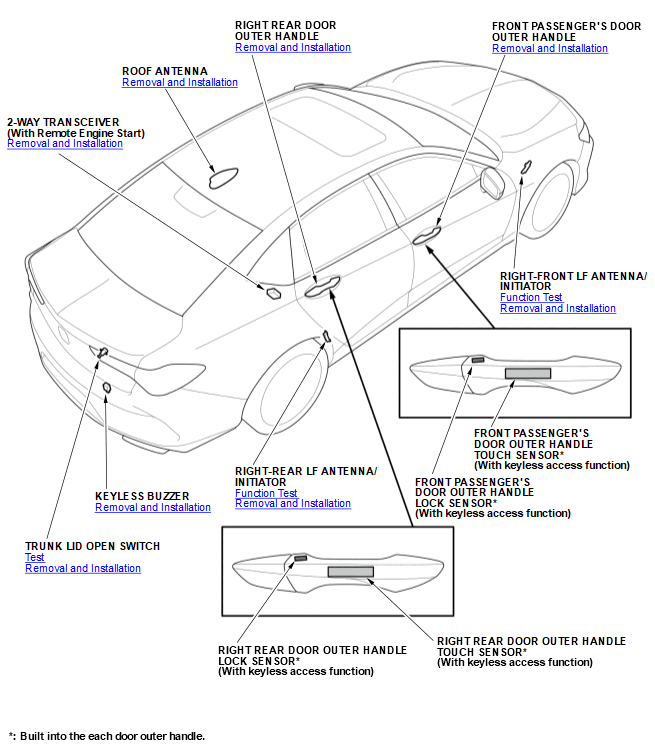

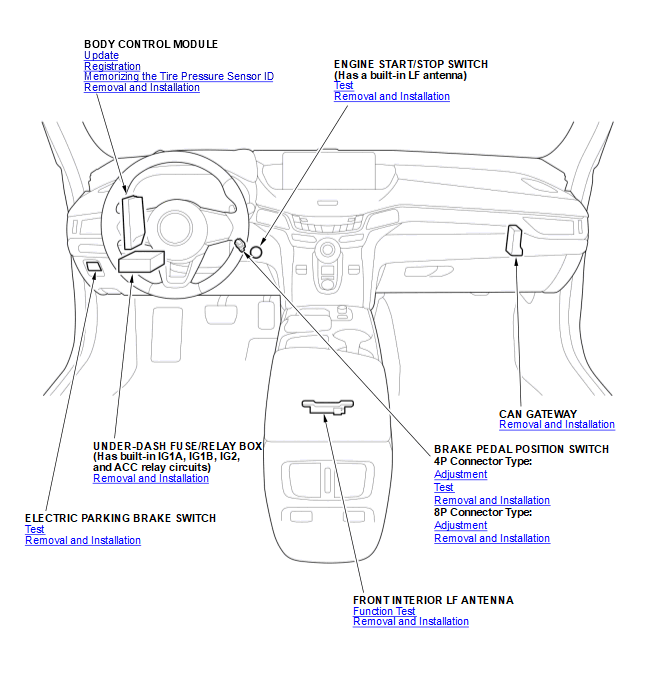

Keyless Access System Component Location Index (3.0L Engine)

For relationships between signals in a system, refer to System Diagram - Refer to: Keyless Access System Description - System Diagram .

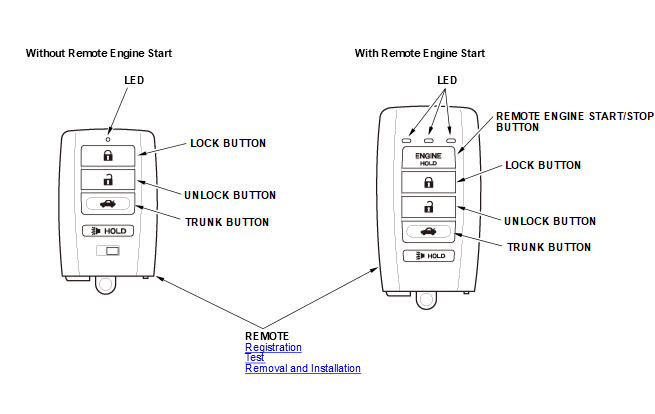

'21-23

Courtesy of HONDA, U.S.A., INC.

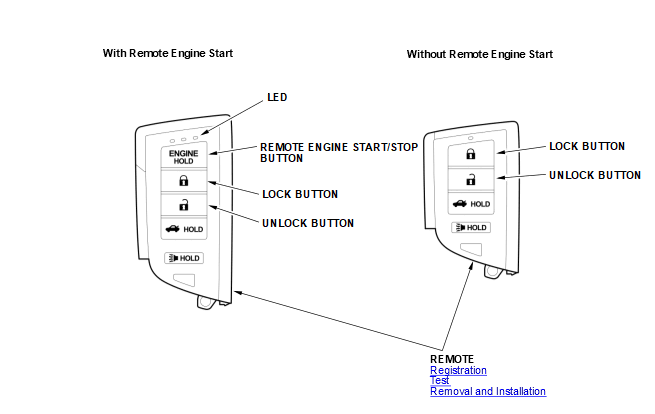

'24-25

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

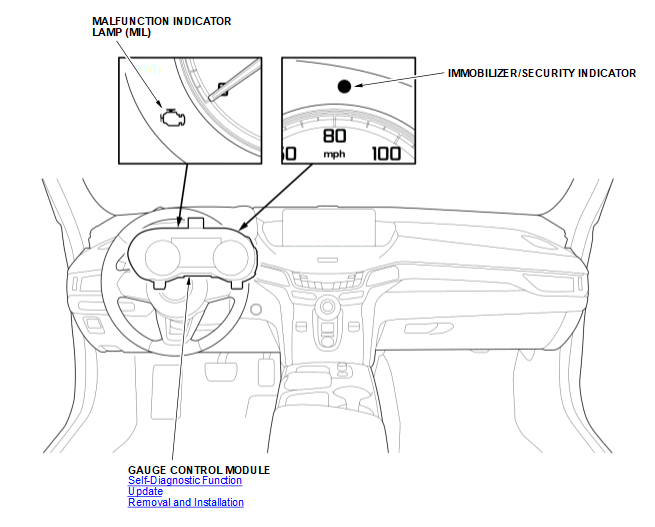

'21-23

Courtesy of HONDA, U.S.A., INC.

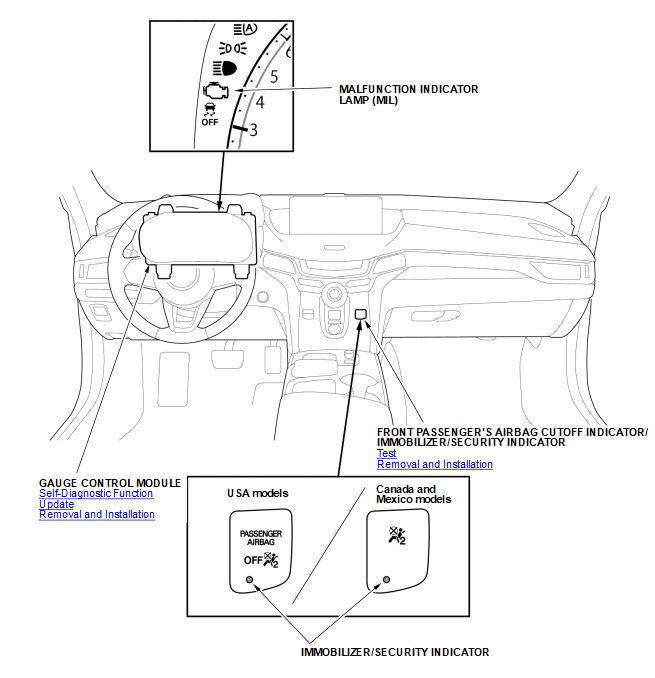

'24-25

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
