Acceleration Sensor Inspection: Inspection
- Acceleration sensor - Inspect
Preconditions
Procedure/Specifications
- Check the acceleration sensor signal as follows.
- Select the following menu buttons on the HDS screen in sequence.
-
- ADAPTIVE DAMPER SYSTEM (System Selection Menu)
- DATA LIST

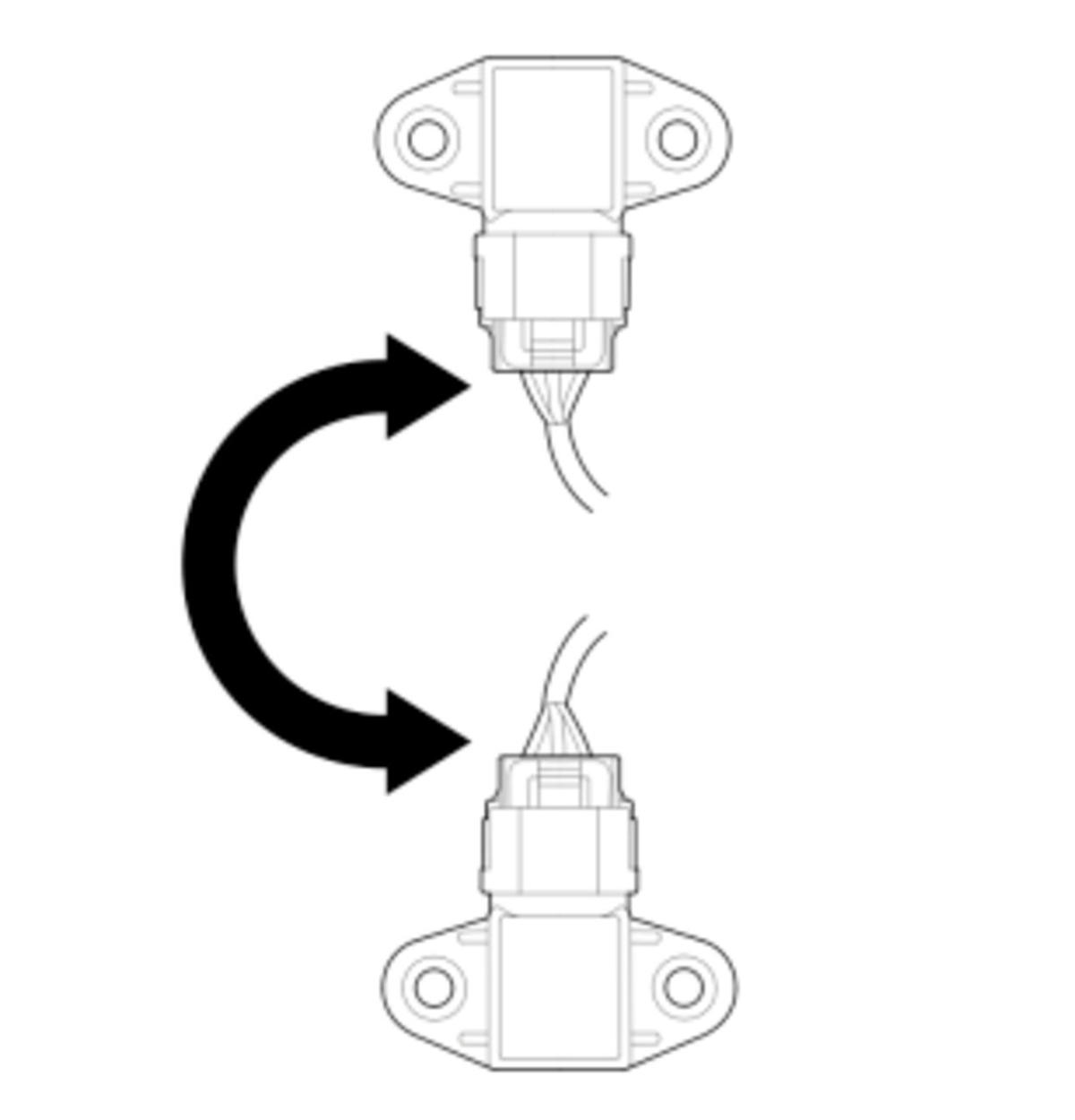

- Move the acceleration sensor slowly up and down.
Specifications
Item Standard Value FRONT ACCELERATION SENSOR VOLTAGE About 0.38-4.83 V RIGHT REAR ACCELERATION SENSOR VOLTAGE LEFT REAR ACCELERATION SENSOR VOLTAGE Result
- If the voltages do not change or not within specifications, replace the acceleration sensor.
