Relay Circuit Board Test (3.5L Engine): Test

How to use this service information .

1. Relay Circuit Board Test

   Preconditions

   • Relay Circuit Board Removed

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   The relay circuit board is part of the under-hood fuse/relay box, and it contains these relay circuits diodes:

   • Radiator Fan Motor Diode
   • Condenser Fan Motor Diode
   • Starter Cut Relay 1 Circuit
   • Starter Cut Relay 2 Circuit
   • Brake Light Relay Circuit
   • Windshield Washer Motor Relay Circuit
   • Rear Window Washer Motor Relay Circuit

   NOTICE:

   • When an LED is located between terminals, check if the LED lights up by connecting power and ground to the LED.
   • When checking for continuity across the diode, use the diode setting ( ) on the digital volt/ohm meter to check the diode bias.
   • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

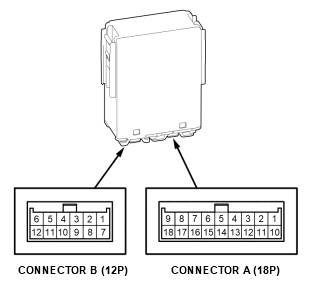

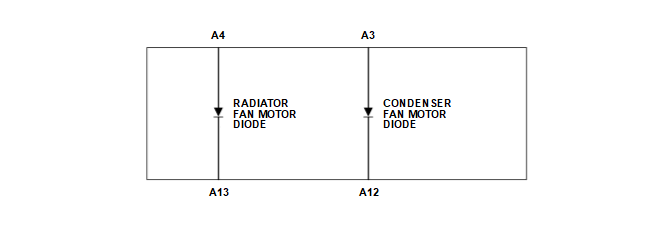

   Radiator Fan Motor Diode and Condenser Fan Motor Diode

   Radiator Fan Motor Diode

   • There should be continuity between terminals A4 and A13.

   Condenser Fan Motor Diode

   • There should be continuity between terminals A3 and A12.

   Courtesy of HONDA, U.S.A., INC.

   Starter Cut Relay 1 Circuit and Starter Cut Relay 2 Circuit

   Starter cut relay 1 circuit

   • There should be continuity between terminals A6 and B3, when 12 volt battery power is connected to terminal B12, and body ground is connected to terminal B7.
   • There should be no continuity between terminals A6 and B3 when terminal B7 is disconnected.

   Starter cut relay 2 circuit

   • There should be continuity between terminals B2 and B3, when 12 volt battery power is connected to terminal B12, and body ground is connected to terminal B8.
   • There should be no continuity between terminals B2 and B3 when terminal B8 is disconnected.

   Courtesy of HONDA, U.S.A., INC.

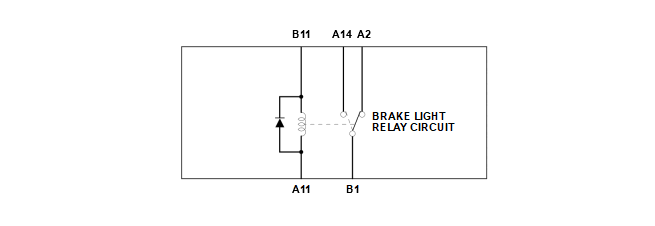

   Brake Light Relay Circuit

   Brake Light Relay Circuit

   • There should be continuity between terminals A14 and B1, when 12 volt battery power is connected to terminal B11, and body ground is connected to terminal A11.
   • There should be no continuity between terminals A14 and B1, and there should be continuity between terminals A2 and B1 when terminal A11 is disconnected.

   Courtesy of HONDA, U.S.A., INC.

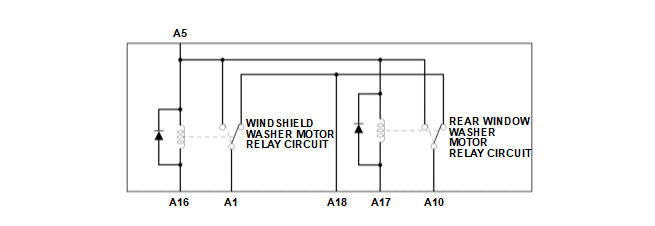

   Windshield Washer Motor Relay Circuit and Rear Window Washer Motor Relay Circuit

   Windshield Washer Motor Relay Circuit

   • There should be battery voltage at terminal A1 when 12 volt battery power is connected to terminal A5, and body ground is connected to terminal A16.
   • There should be no voltage at terminal A1 when terminal A16 is disconnected.
   • There should be continuity between terminals A1 and A18, when 12 volt battery power is not connected to anything.

   Rear Window Washer Motor Relay Circuit

   • There should be battery voltage at terminal A10 when 12 volt battery power is connected to terminal A5, and body ground is connected to terminal A17.
   • There should be no voltage at terminal A10 when terminal A17 is disconnected.
   • There should be continuity between terminals A10 and A18, when 12 volt battery power is not connected to anything.

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the relay circuit board - Refer to: 12 Volt Battery Area (3.5L Engine) or 12 Volt Battery Area (3.0L Engine) .
