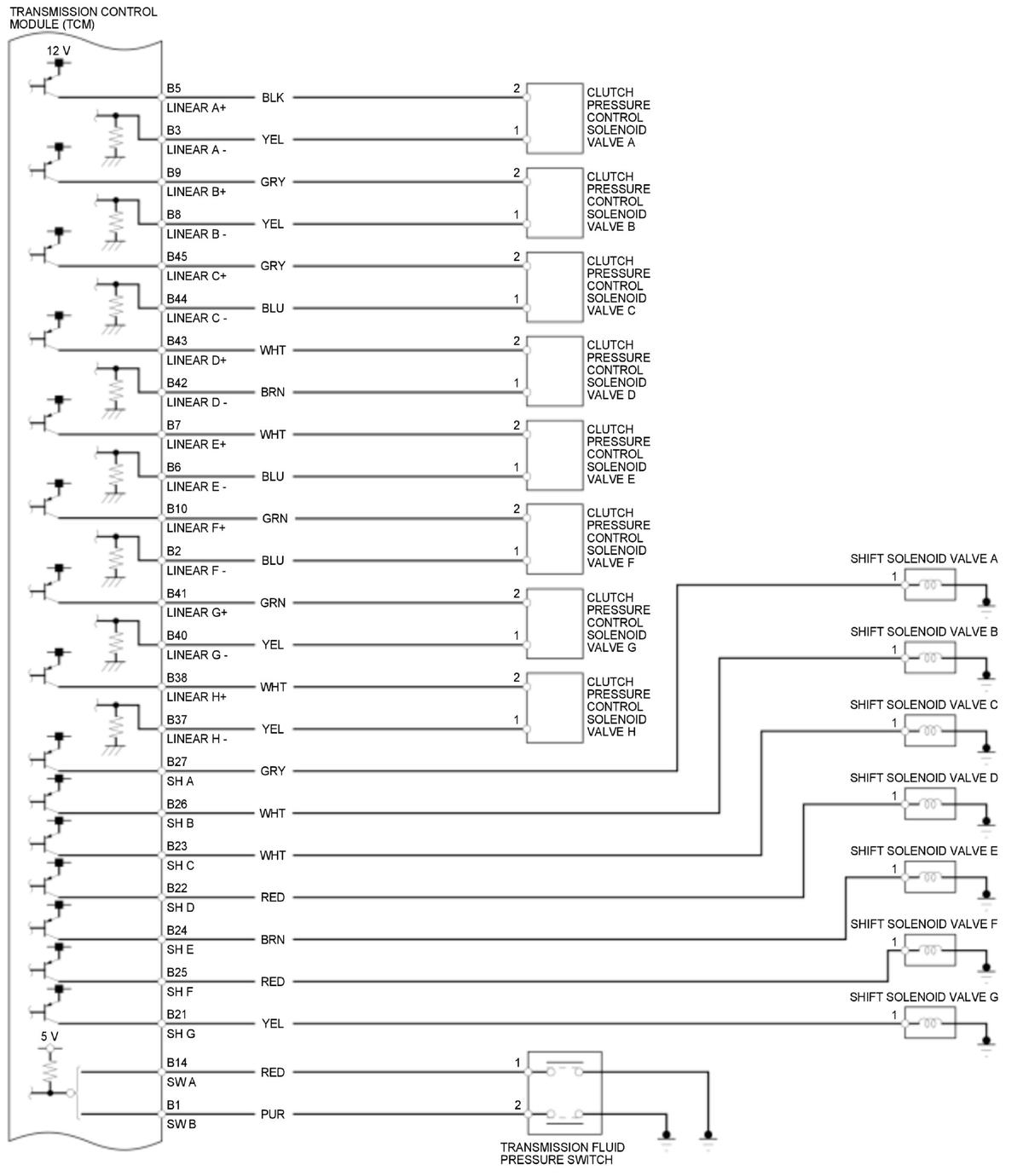

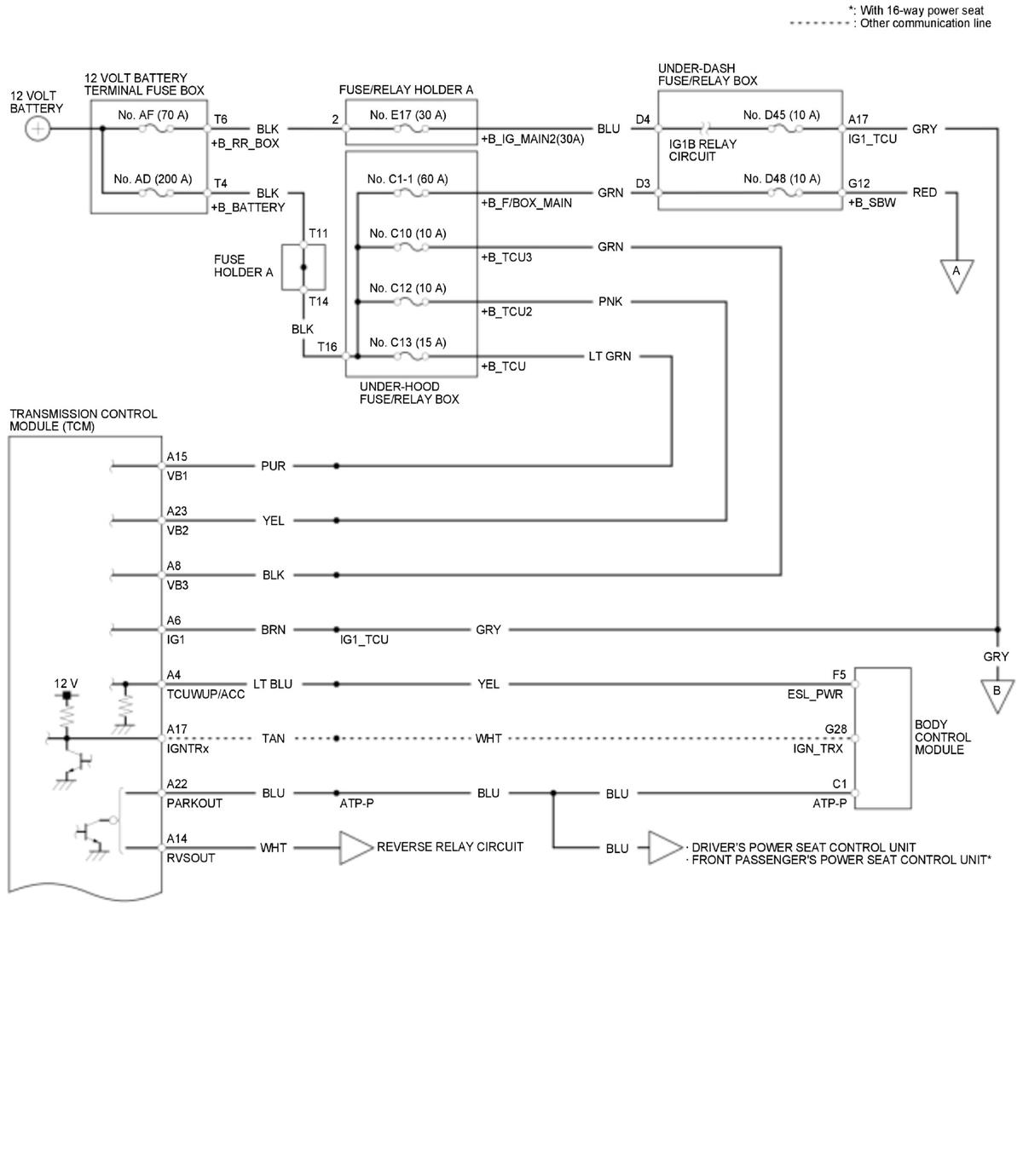

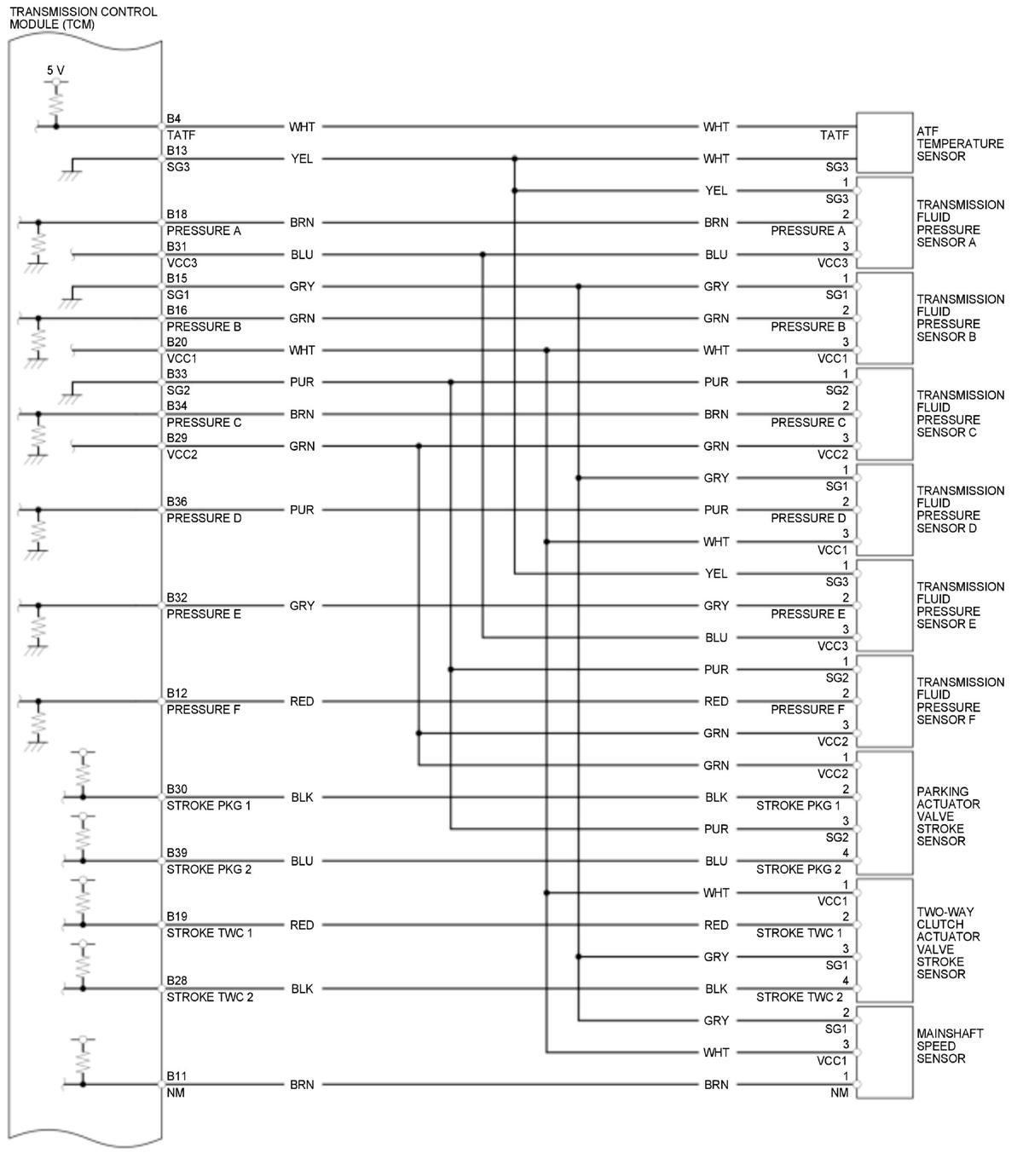

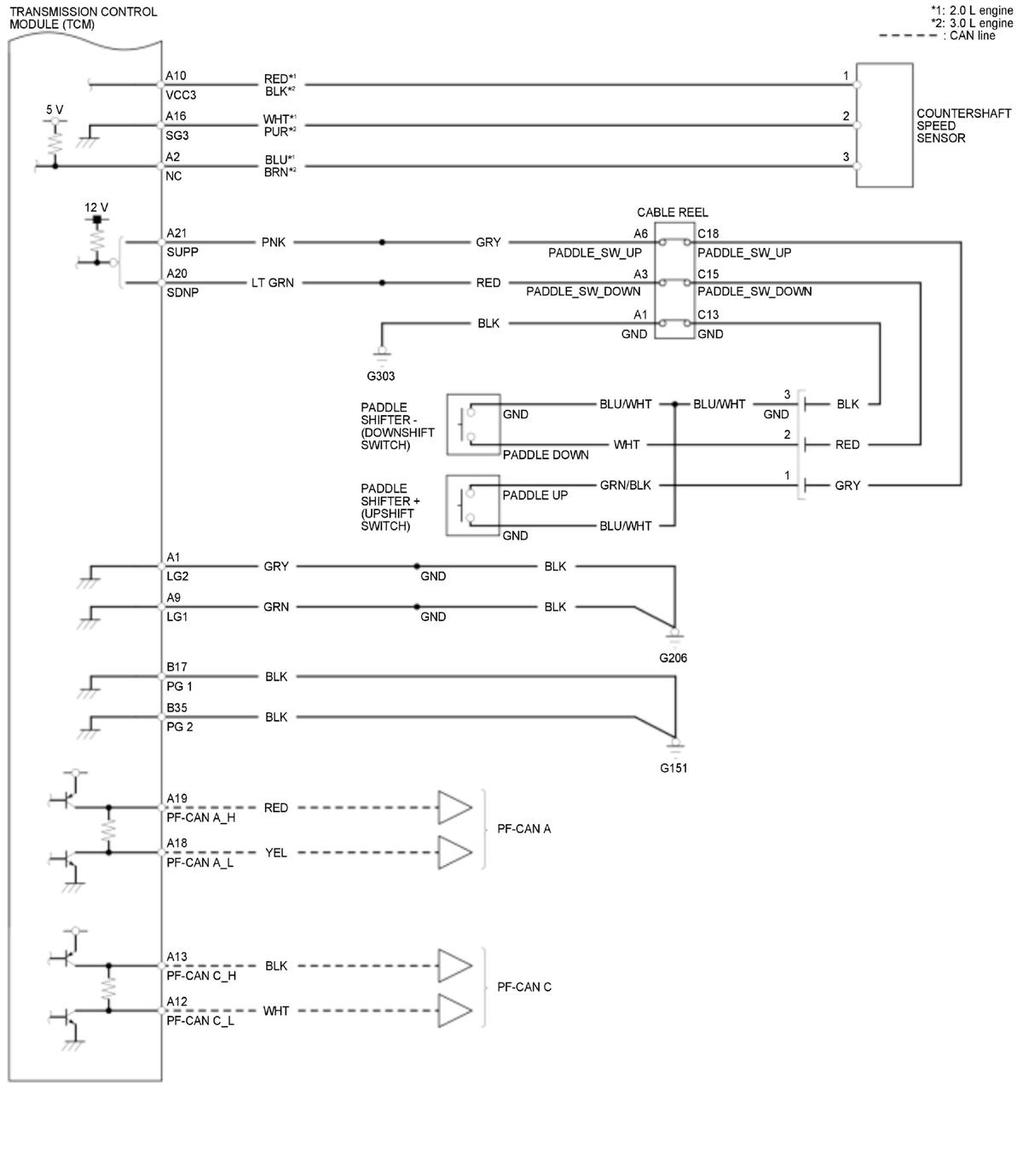

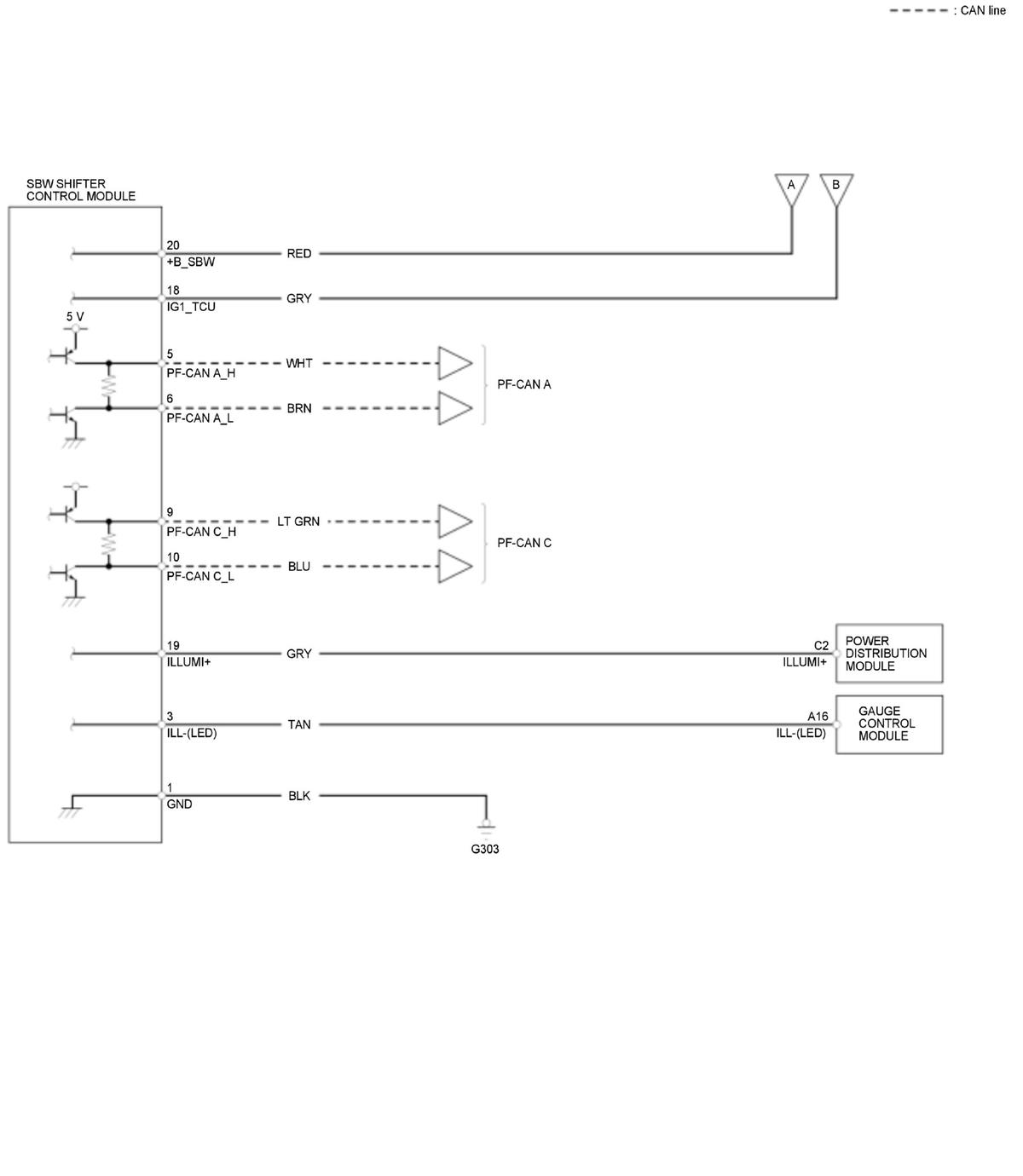

A/T System Circuit Diagram
NOTE:
For details of the CAN circuit, refer to the Network Communications Circuit Diagram
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
