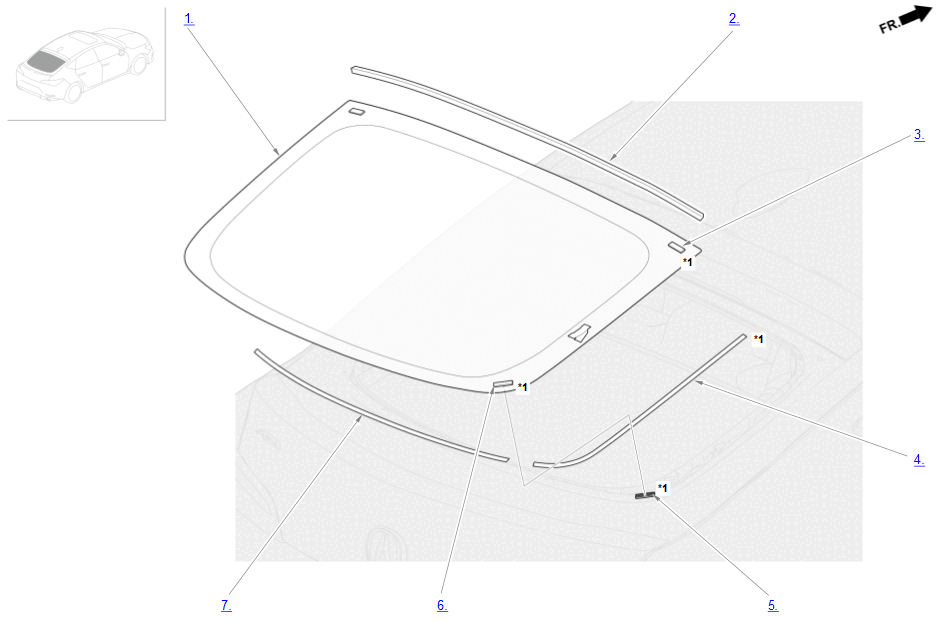

Exploded View
For replacement of components listed below, see Repair Procedure
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
Rear Window Area Components
| Component Name | Callout |
|---|---|
| Rear Window | 1 |
| Rear Window Upper Molding | 2 |
| Upper Clip | 3 |
| Rubber Dam A | 4 |
| Fastener B | 5 |
| Fastener A | 6 |
| Rubber Dam B | 7 |
