Multi View Camera Aiming: Notes

*: 070AK-SLEA110 contains only 1 target sheet. 2 target sheets are required for the aiming procedure.

Multi View Camera Aiming

Special Tools Required

Image	Description/Tool Number

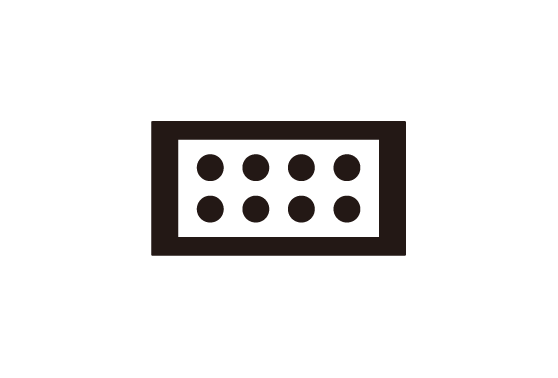

Courtesy of HONDA, U.S.A., INC.	8 Dot Target Sheet 070AK-SLEA110*

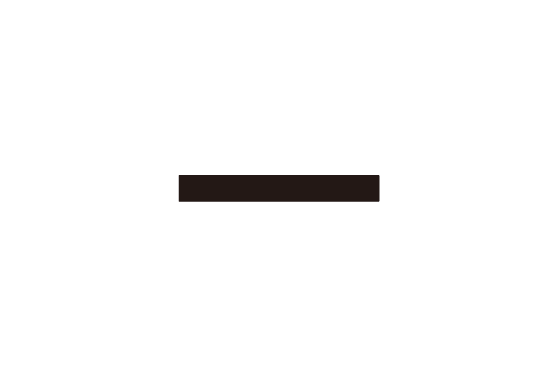

Courtesy of HONDA, U.S.A., INC.	Mask Sheet 070AK-SLEA120

*: 070AK-SLEA110 contains only 1 target sheet. 2 target sheets are required for the aiming procedure.
