Infotainment Control Unit Connector For Inputs And Outputs
| Connector Index |
|---|
| Infotainment Control Unit Connector A (20P) |
| Infotainment Control Unit Connector B (3P) |
| Infotainment Control Unit Connector C (5P) |
| Infotainment Control Unit Connector D (2P) |
| Infotainment Control Unit Connector E (2P) |
| Infotainment Control Unit Connector F (2P) |
| Infotainment Control Unit Connector J (2P) |

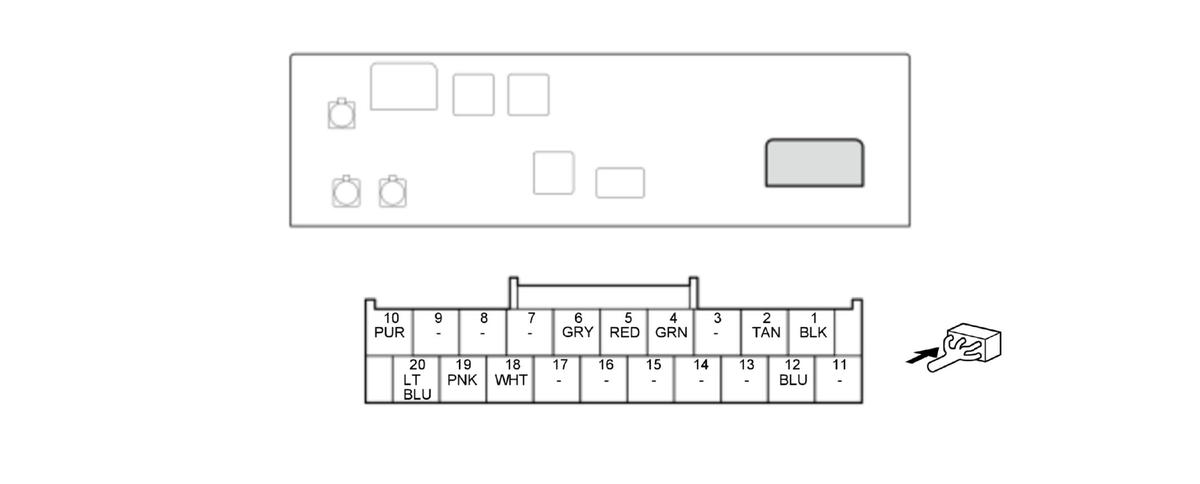

Infotainment Control Unit Connector A (20P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| A1 | GND | Ground for infotainment control unit (G304) |
| A2 | +B_AUDIO | Continuous power source |
| A3 | Not used | --- |
| A4 | RS485+ | Communication signal to touchpad unit |
| A5 | RS485- | Communication signal to touchpad unit |
| A6 | SH_RS485 | Shield for terminals No. 4 and No. 5 |
| A7 | Not used | --- |
| A8 | Not used | --- |
| A9 | Not used | --- |
| A10 | DISP_CONT | Outputs signal for center display unit switching on/off |
| A11 | Not used | --- |
| A12 | TOUCHPAD_CONT | Outputs signal for touchpad unit switching on/off |
| A13 | Not used | --- |
| A14 | Not used | --- |
| A15 | Not used | --- |
| A16 | Not used | --- |
| A17 | Not used | --- |
| A18 | MOST_ECL | Inputs ECL signal |
| A19 | MOST_ECL | Outputs ECL signal |
| A20 | K-LINE | Detects scan tool signal (serial data) |

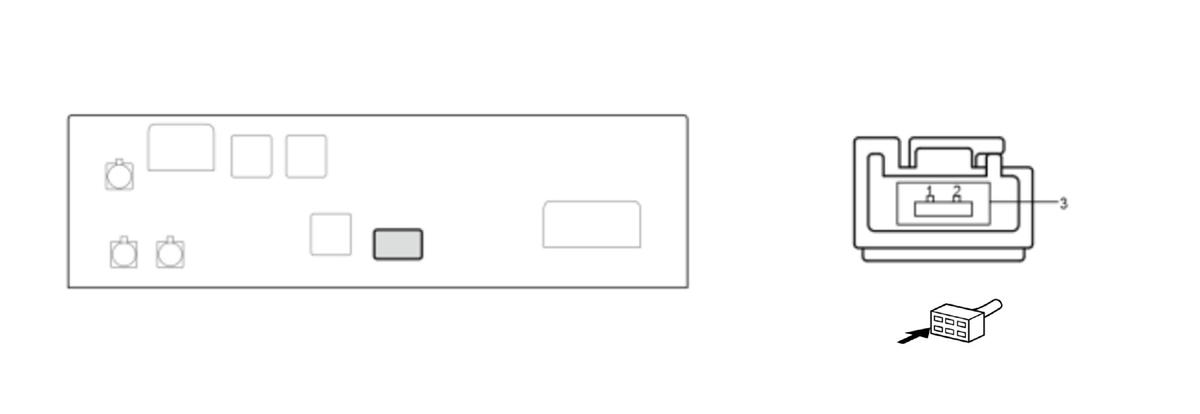

Infotainment Control Unit Connector B (3P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| B1 | LVDS + | Communication signal for center display unit |
| B2 | LVDS - | Communication signal for center display unit |
| B3 | LVDS SH | Shield for terminals No. 1 and No. 2 |

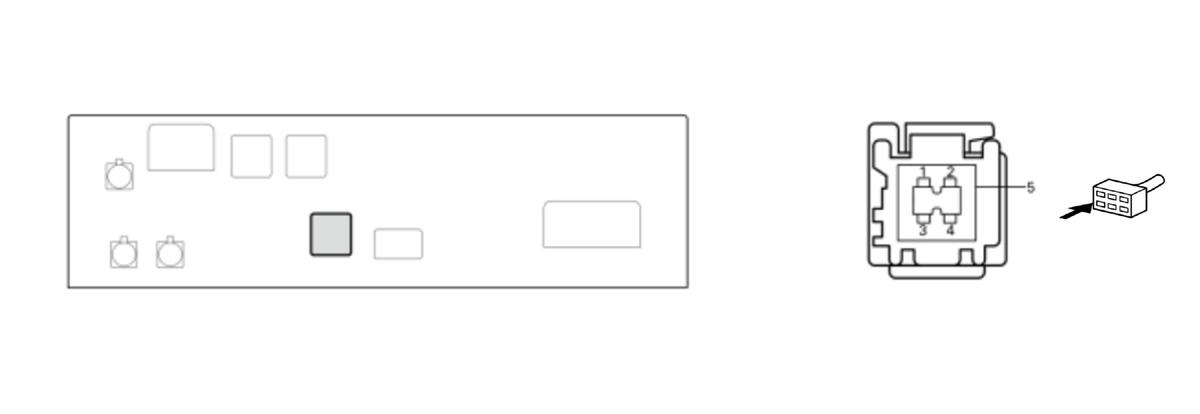

Infotainment Control Unit Connector C (5P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| C1 | USB GND | Ground for USB port A |
| C2 | USB VBUS | Outputs power source for USB port A |
| C3 | USB DATA+ | Communication signal |
| C4 | USB DATA- | Communication signal |
| C5 | USB SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |

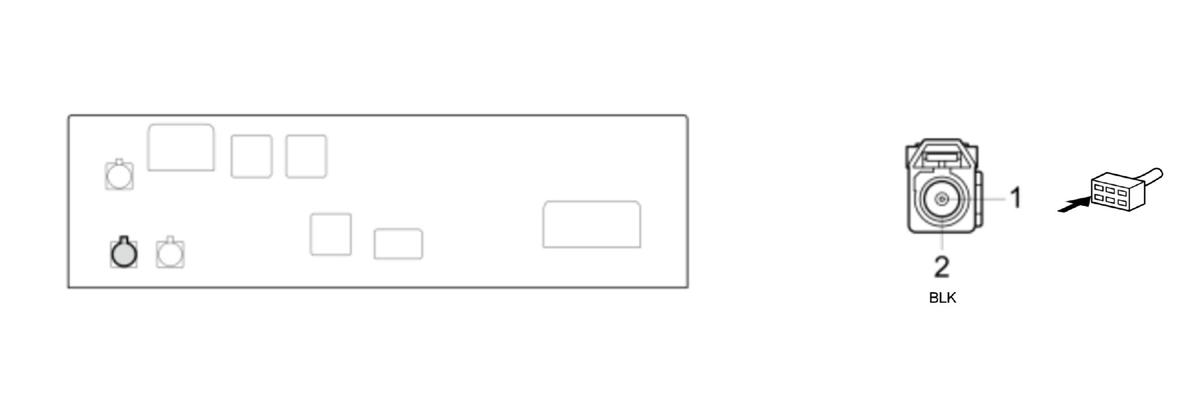

Infotainment Control Unit Connector D (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| D1 | MOST RX+ | Inputs MOST communication signal |
| D2 | MOST RX- | Shield for terminal No. 1 |

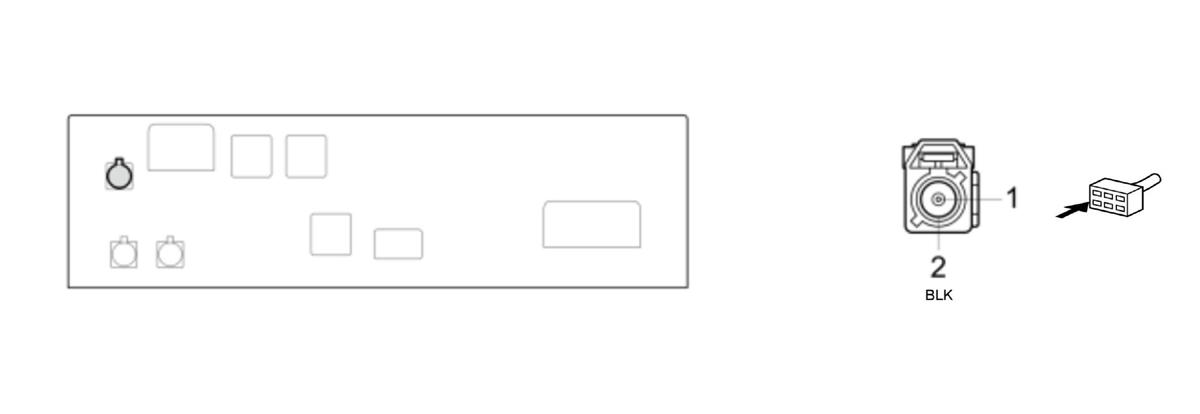

Infotainment Control Unit Connector E (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| E1 | MOST TX+ | Outputs MOST communication signal |
| E2 | MOST TX- | Shield for terminal No. 1 |

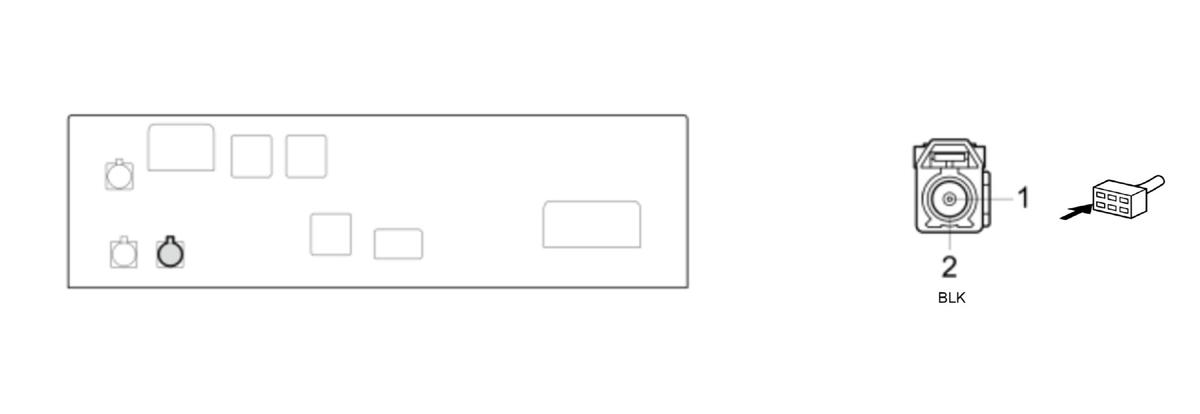

Infotainment Control Unit Connector F (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| F1 | GNSS(NAVI) | Inputs GPS signal |
| F2 | SH(GNSS(NAVI)) | Shield for terminal No. 1 |

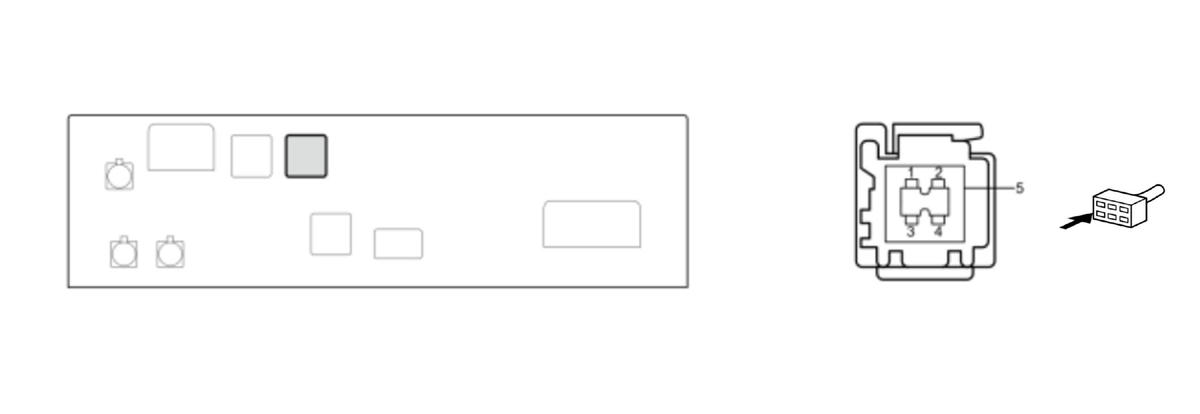

Infotainment Control Unit Connector J (5P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| J1 * | USB GND | Ground for USB |
| J2 * | USB VBUS | Outputs power source for USB |
| J3 * | USB DATA+ | Communication signal |
| J4 * | USB DATA- | Communication signal |
| J5 * | USB SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
*: With AcuraLink
