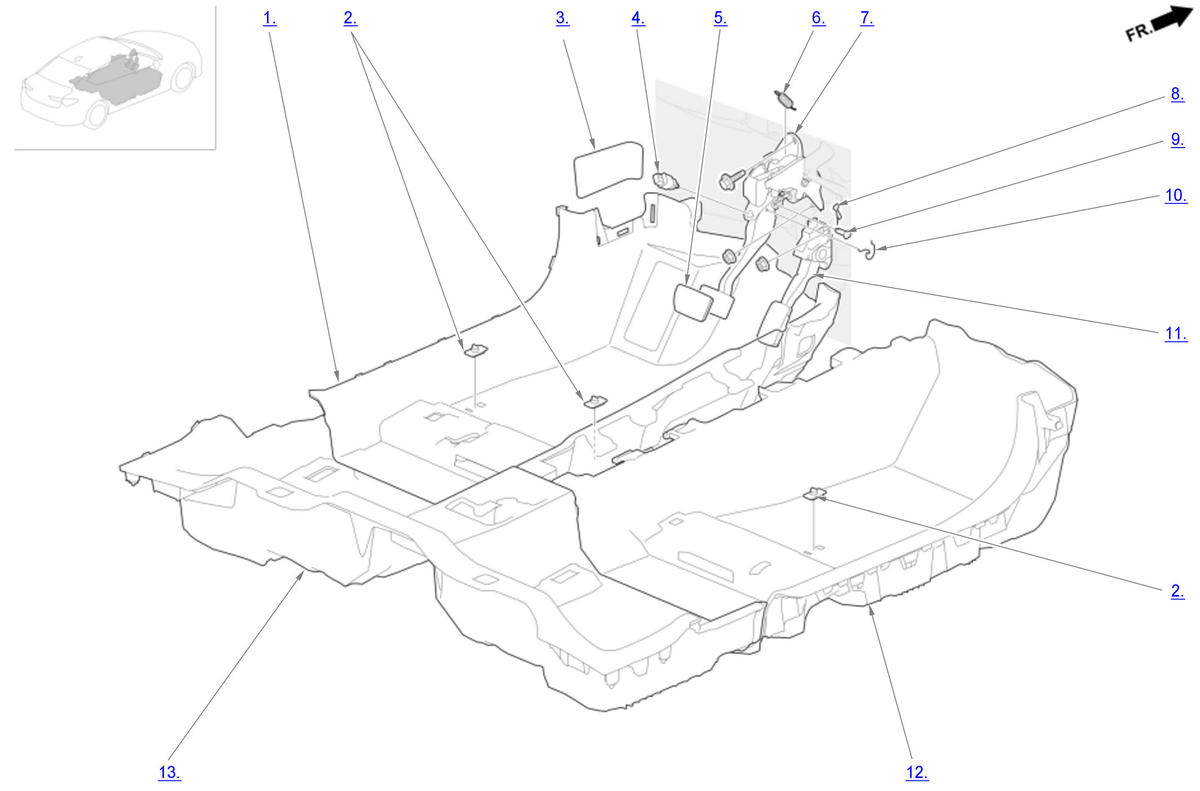

Exploded View Legend
For Replacement of components listed below, see Repair Procedure
Pedals Area Components
| Component Name | Callout |
|---|---|
| Left Front Carpet | 1 |
| Floor Mat Holder | 2 |
| Cowl Side Cover | 3 |
| Brake Pedal Position Switch | 4 |
| Brake Pedal Cover | 5 |
| Return Spring | 6 |
| Brake Pedal | 7 |
| Lock Pin | 8 |
| Yoke Pin | 9 |
| Yoke Spring | 10 |
| Accelerator Pedal Module | 11 |
| Right Front Carpet | 12 |
| Rear Carpet | 13 |
