Exploded View Legend
For Replacement of components listed below, see Repair Procedure

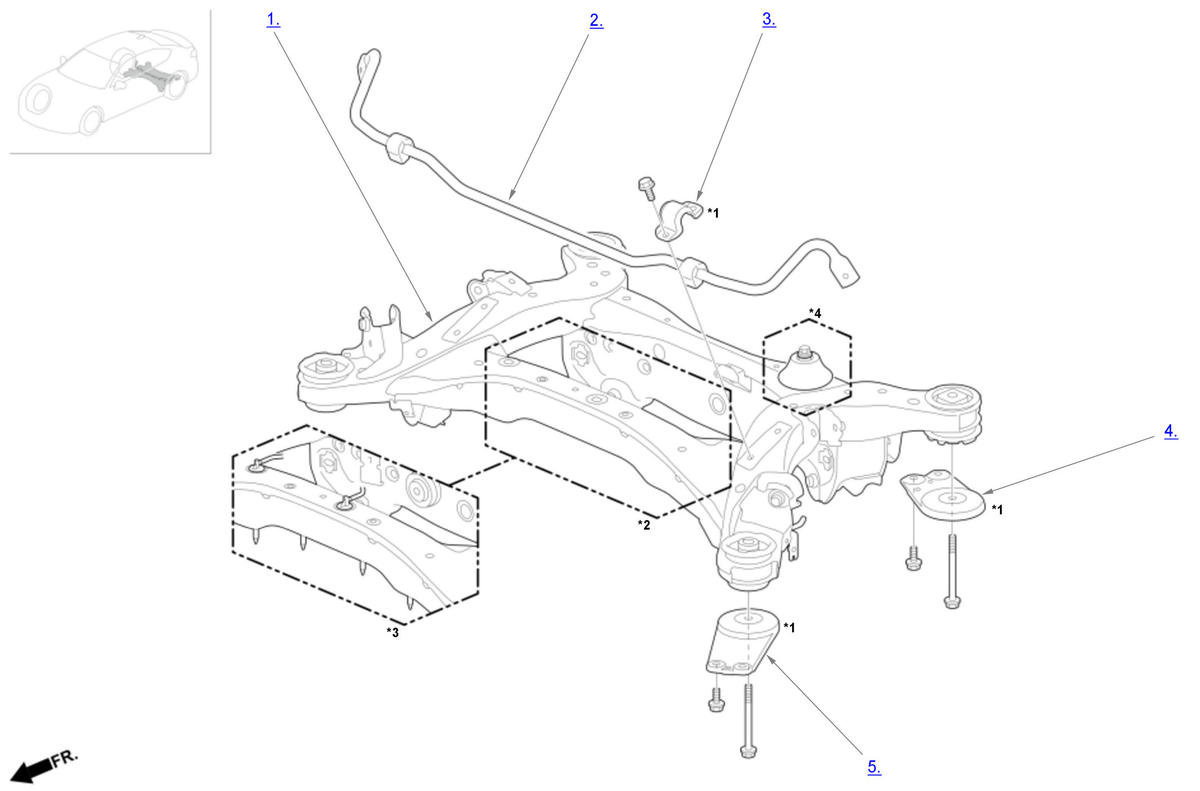

| *1: Part(s) are shown for one side only as the procedure is the same for both sides. *2: Without AWD *3: With AWD *4: 2.0 L engine with AWD |

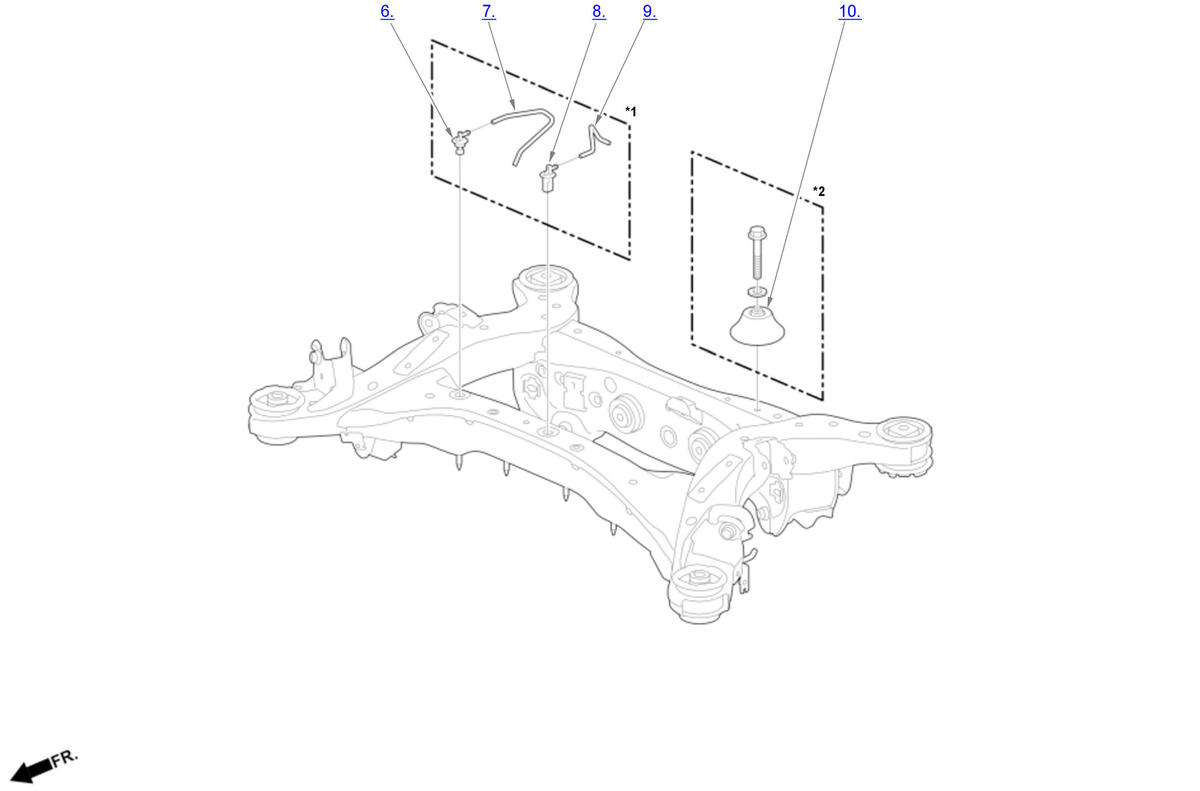

| *1: With AWD *2: 2.0 L engine with AWD |
Rear Subframe Area Components
| Component Name | Callout |
|---|---|
| Rear Subframe | 1 |
| Rear Stabilizer Bar | 2 |
| Bushing Holder | 3 |
| Rear Subframe Rear Stay | 4 |
| Rear Subframe Front Stay | 5 |
| Breather End Body Assembly | 6 |
| Rear Differential Pump Motor Breather Tube | 7 |
| Breather Tube Joint | 8 |
| Rear Differential Breather Tube | 9 |
| Rear Subframe Dynamic Damper | 10 |
