Exploded View
For replacement of components listed below, see Repair Procedure .

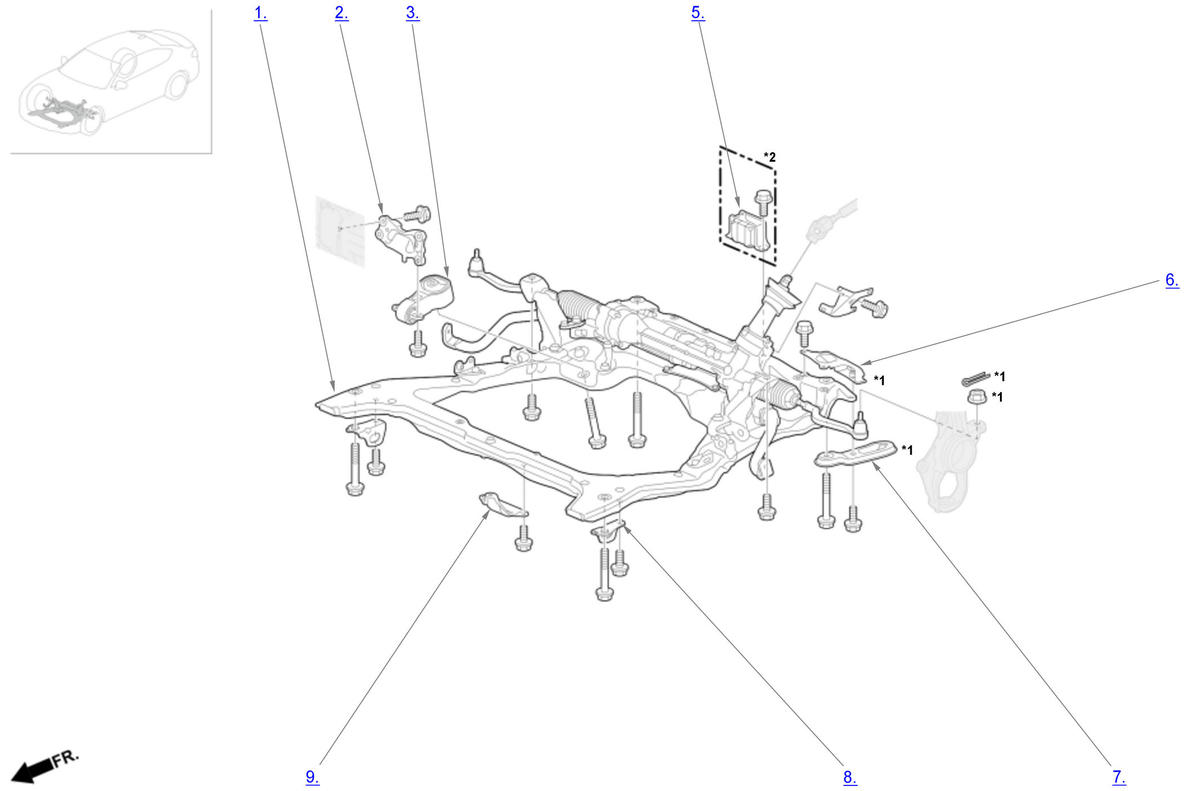

Without AWD
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. *2: With dynamic damper |

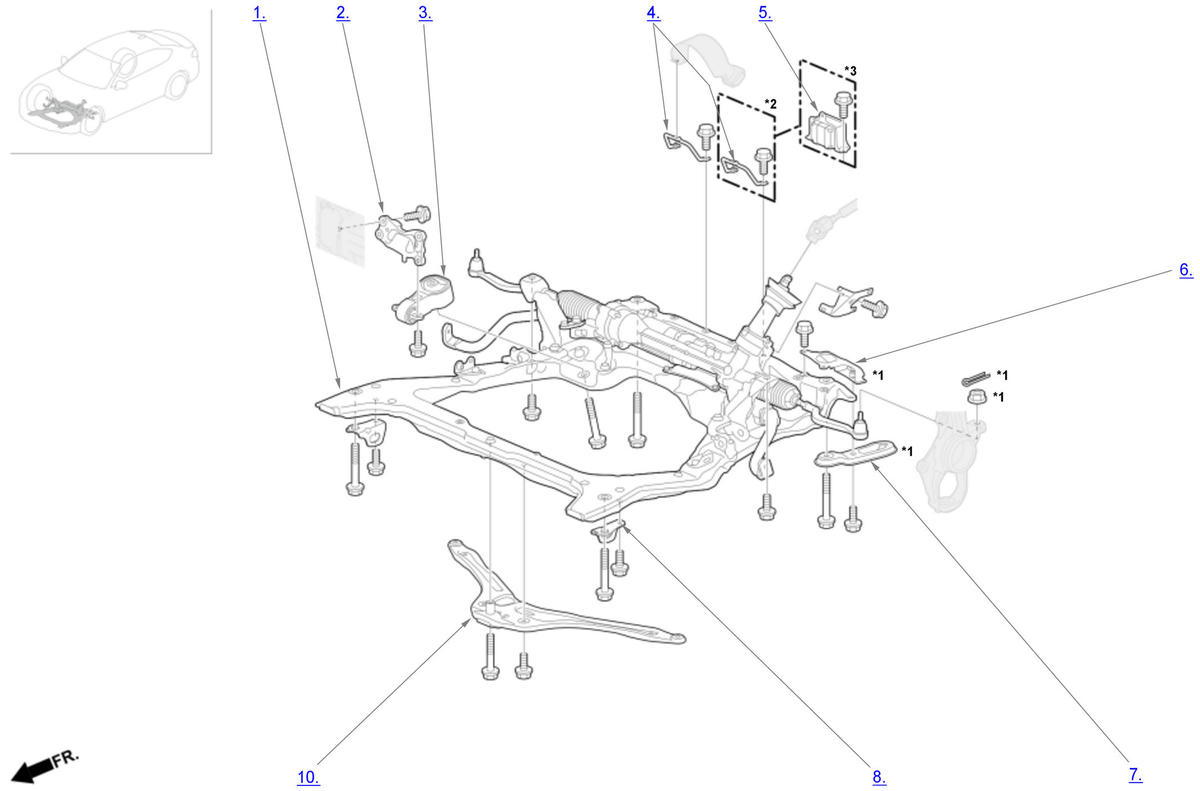

With AWD
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. *2: Without dynamic damper *3: With dynamic damper |

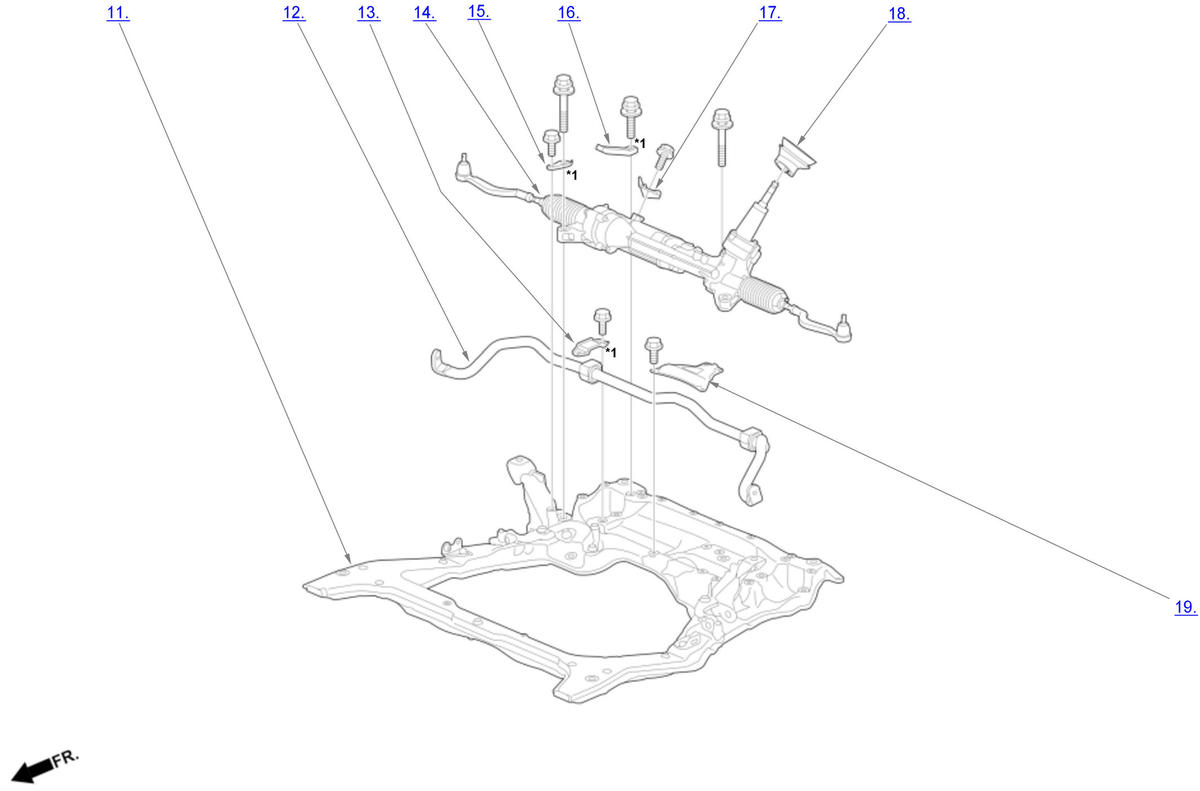

| *1: Part(s) are shown for one side only as the procedure is the same for both sides. |
Front Subframe / Steering Gearbox Area Components
| Component Name | Callout |
|---|---|
| Front Subframe/Steering Gearbox Assembly | 1 |
| Lower Torque Rod Bracket | 2 |
| Lower Torque Rod | 3 |
| Propeller Shaft Protector | 4 |
| Front Subframe Dynamic Damper | 5 |
| Front Subframe Rear Cap Bracket | 6 |
| Front Subframe Rear Stay | 7 |
| Tow Hook | 8 |
| Jack Up Plate | 9 |
| Front Subframe Stiffener | 10 |
| Front Subframe | 11 |
| Front Stabilizer Bar | 12 |
| Bushing Holder | 13 |
| Steering Gearbox | 14 |
| Steering Gearbox Stiffener | 15 |
| Steering Gearbox Rear Stiffener | 16 |
| Steering Gearbox Rear Middle Stiffener | 17 |
| Pinion Shaft Grommet | 18 |
| Front Subframe Upper Stiffener | 19 |
