Switch - Driver Front

REMOVAL

1. Disconnect and isolate the negative battery cable.

   Courtesy of CHRYSLER GROUP, LLC

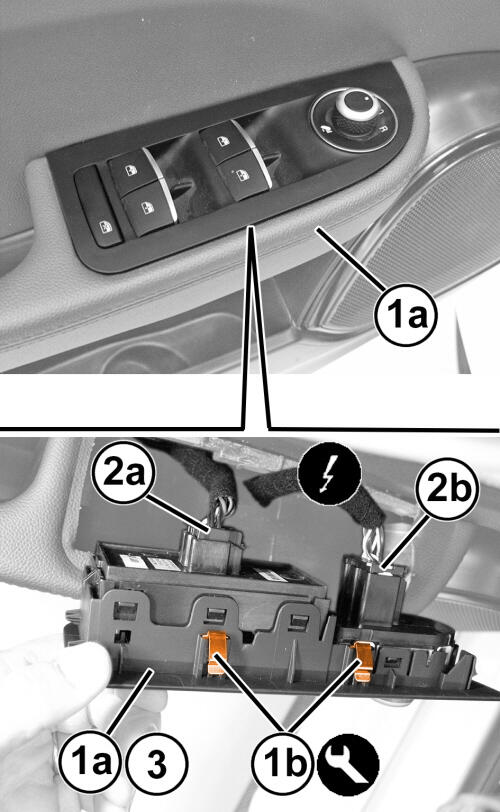

2. Using a trim stick or suitable tool, lift up the power switch unit (1a) and release the retainers (1b).
3. Disconnect the wiring harness connectors (2a, 2b) from the power switch unit.
4. Remove the power switch unit from the vehicle.

INSTALLATION

1. Position the power switch unit to the panel for installation.

   Courtesy of CHRYSLER GROUP, LLC

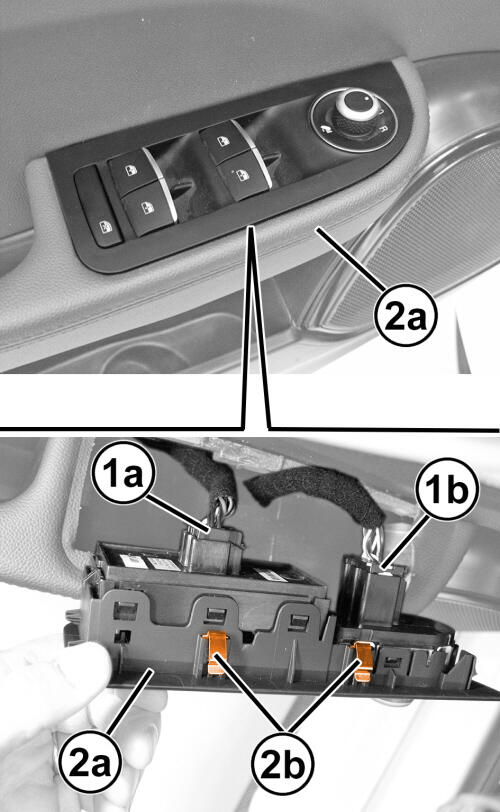

2. Connect the wiring harness connectors (1a, 1b) to the power switch unit.
3. Install the power switch unit and secure the switch unit retainers (2b).
4. Connect the negative battery cable.
